C Indicator ON or False Cycling
>>
C8, C9
C8, C9

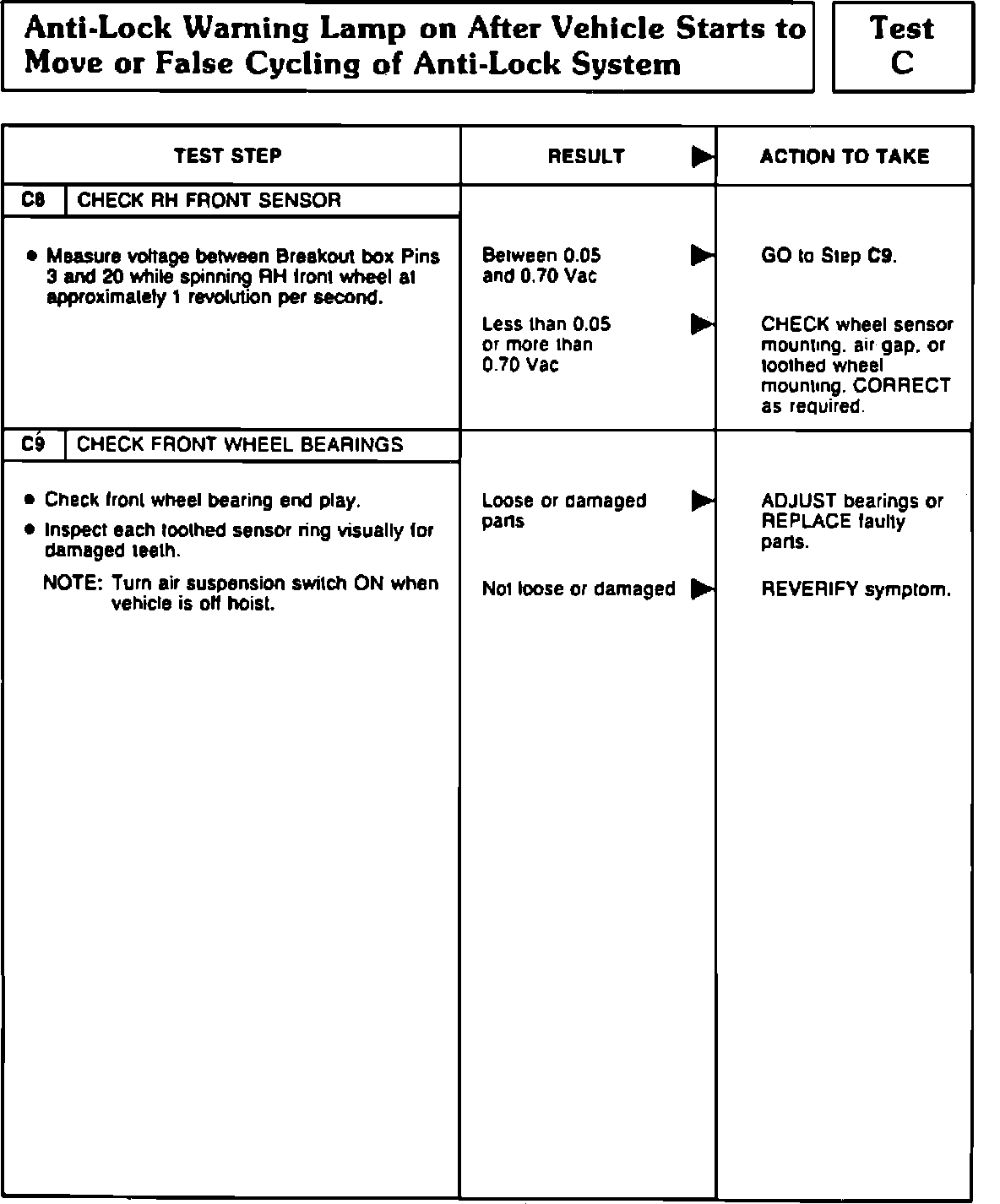

Fig. 25 Test C, Warning Lamp On After Vehicle Moves/Or False Cycling Of System (Part 5 Of 5):
