A Warning Indicator ON/Brake Warning OFF)
>>
A5D, A5E, A6
A5D, A5E, A6

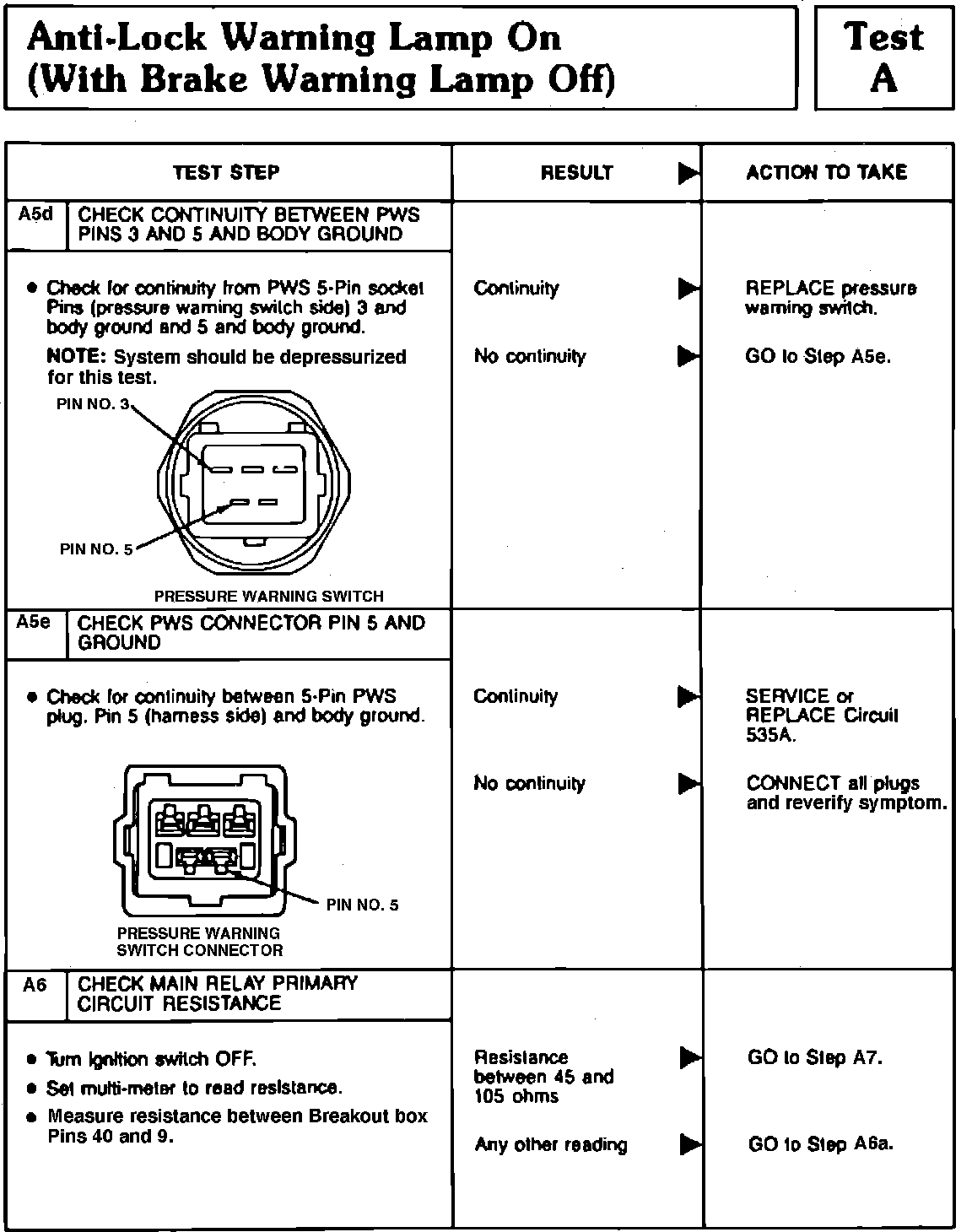

Fig. 23 Test A, Warning Lamp On (Part 8 Of 24):
