Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> A Warning Indicator ON/Brake Warning OFF) >> A23, A24

A23, A24

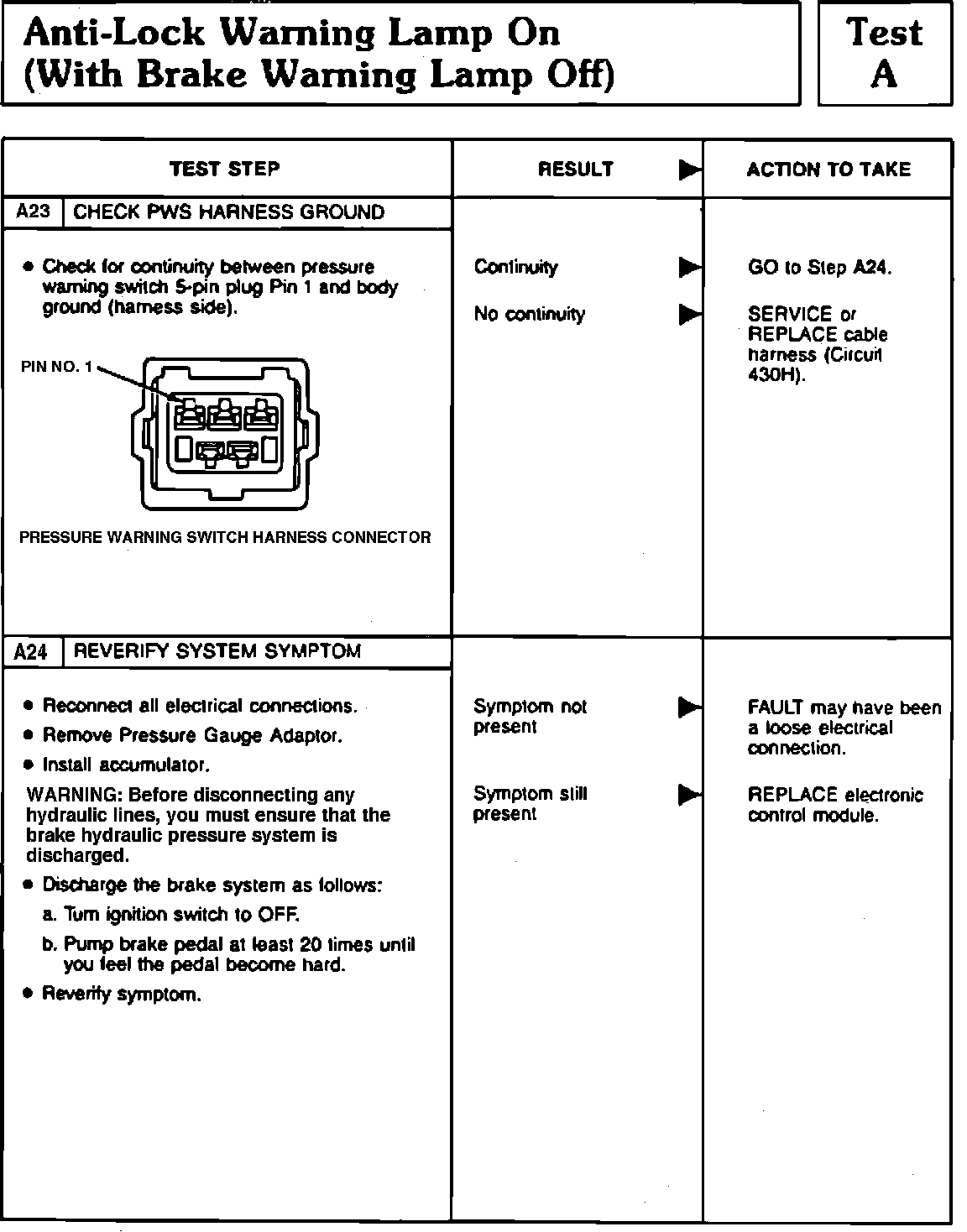

Fig. 23 Test A, Warning Lamp On (Part 24 Of 24):
