Front Door Panel: Service and Repair

Removal

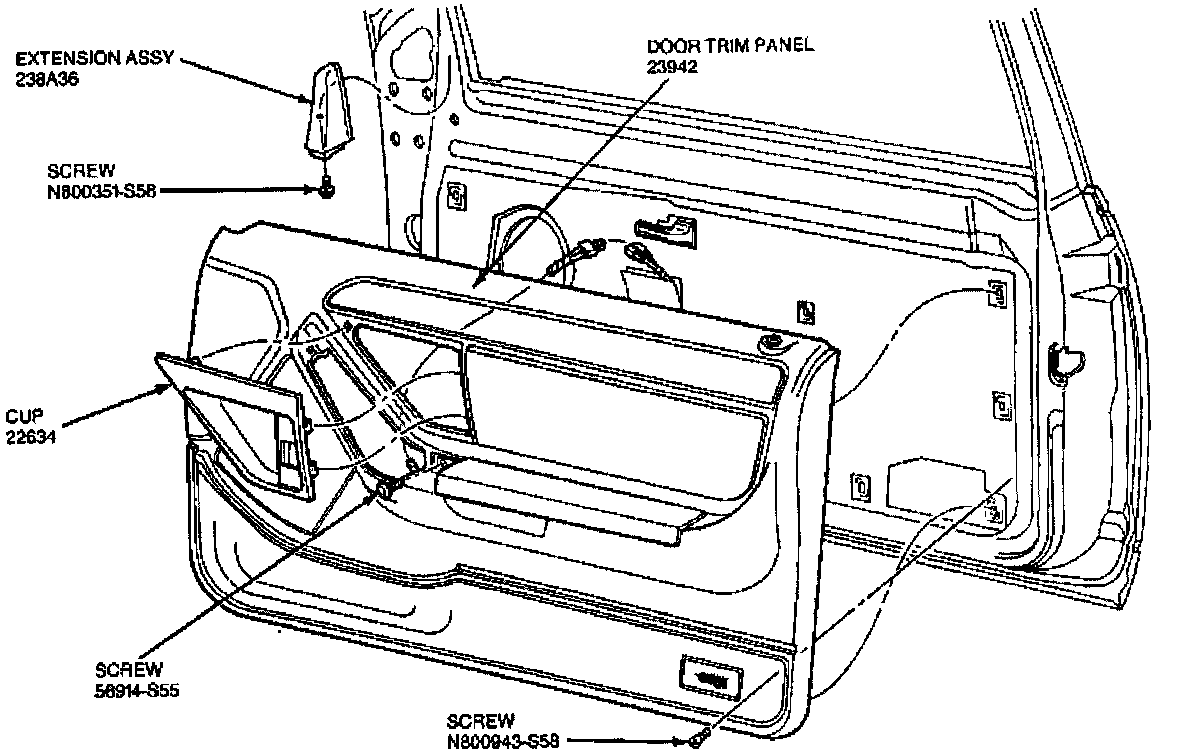

1. Remove window regulator switch housing. Service and Repair
2. Remove door inside handle cup (snaps out).
3. Remove self-tapping screw retaining door trim panel upper front extension assembly. Remove extension assembly.
4. Remove two self-tapping screws retaining door trim panel to door inner panel.
5. Lift door trim panel upward and snap out trim panel.
6. Disconnect wire harness for courtesy lamp.

Installation

1. Connect courtesy lamp connector.
2. Install door trim panel (lower portion first). Push in until it snaps in place.
3. Install two self-tapping screws retaining trim panel to inner panel.
4. Position extension assembly. Install self-tapping screw.
5. Snap in door inside handle cup.
6. Install window regulator switch housing.
