Disassembly

1. Remove pilot bearing, retaining ring, spacer and needle bearing from front of output shaft.
2. Position front of output shaft so that it faces upward, then remove third/fourth clutch hub and sleeve.
3. Remove third gear synchronizer blocker ring.
4. Remove third gear.
5. Remove needle bearing.

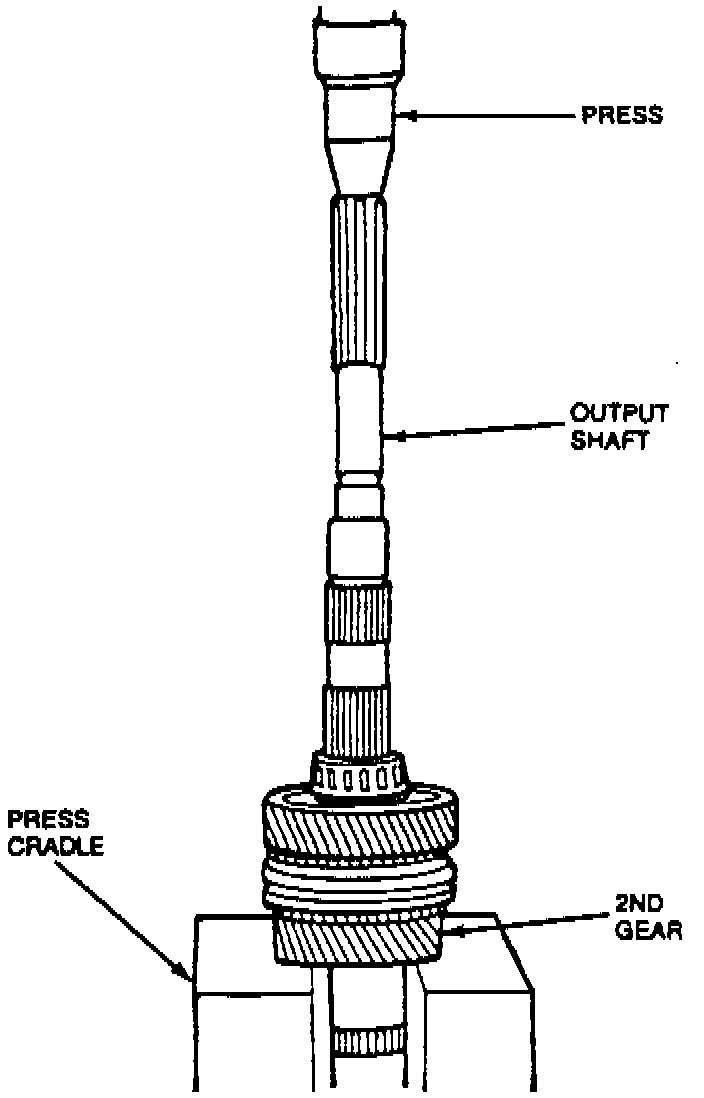

6. Position output shaft with rear end (long side of flange) facing upward. Place output shaft into press with press cradle contacting lower part of second gear. Ensure that output shaft flange does not contact or ride up onto press cradle, as improper positioning of output shaft can cause component damage.

Disassembly Of Output Shaft:

7. Press off center bearing, first gear sleeve, first gear needle bearing, first gear, first gear synchronizer blocker ring first/second clutch hub and sleeve assembly, second gear synchronizer blocker ring, second gear and second gear needle bearing.
