Input Shaft: Service and Repair

DISASSEMBLY
1. Remove and discard plastic scoop ring.

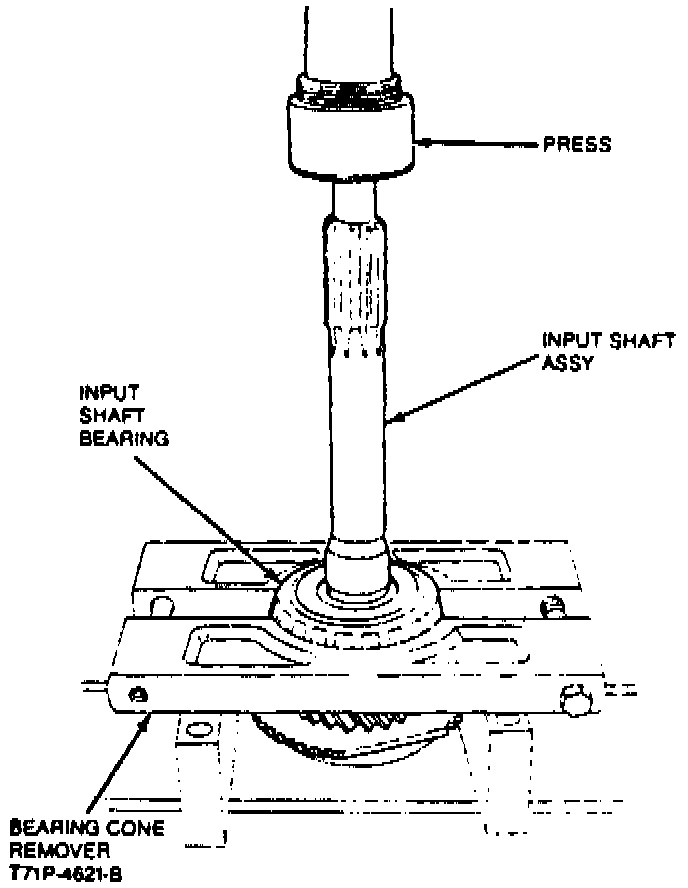

Removing Tapered Roller Bearing:

2. Press tapered roller bearing from input shaft using bearing cone remover tool No. T71P-4621-B or equivalent and a suitable press. Discard bearing after removal.

ASSEMBLY
1. Install input shaft tapered roller bearing onto input shaft using a press bearing plate tool No. T75L-1165-B, and bearing cone replacer tool No. T88T-7025-B or equivalent.
2. Install plastic scoop ring onto shaft. Manually rotate ring clockwise to ensure input shaft oil holes properly engage scoop ring. A click should be heard as scoop ring notches align with input shaft oil holes.
