Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> B - Actuator Control Circuit >> B20 - B24

B20 - B24

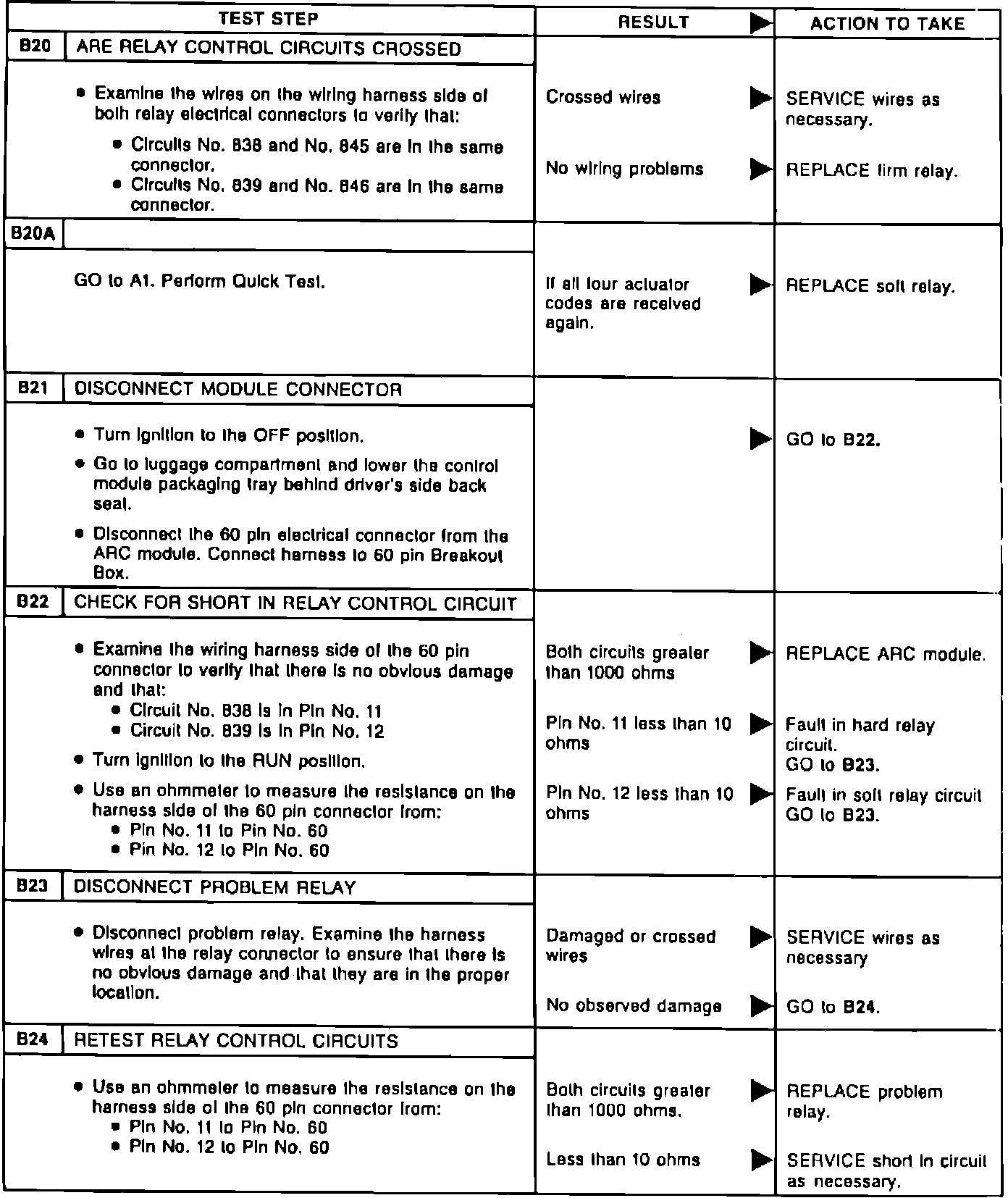

Fig. 5 Automatic Ride Control System Diagnosis, Actuator Control Circuit (Part 5 Of 8):
