Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Steering and Suspension >> Suspension >> Suspension Control ( Automatic - Electronic ) >> Testing and Inspection >> Pinpoint Tests >> A - Quick Test >> A1

A1

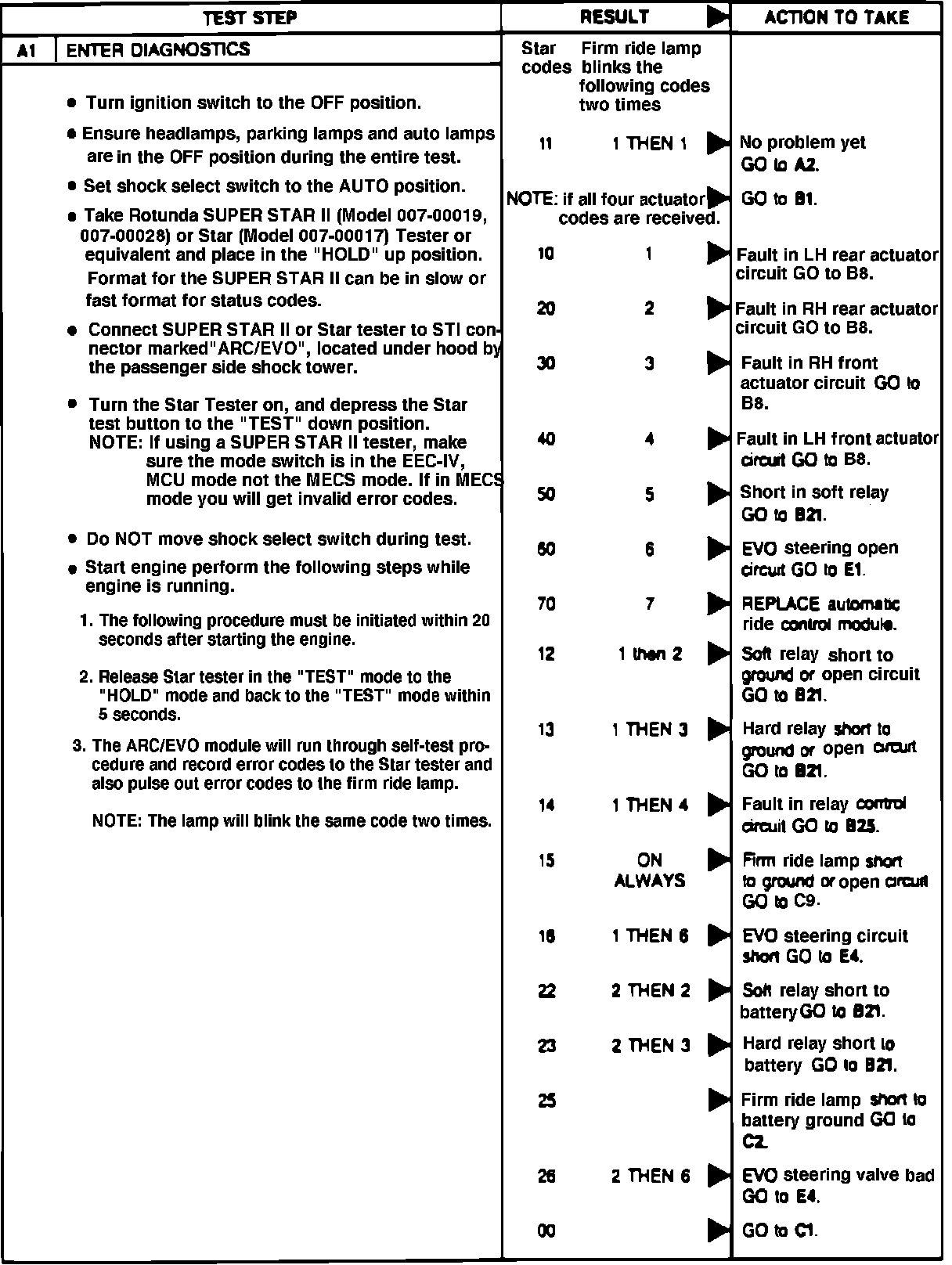

Fig. 4 Automatic Ride Control System Diagnosis, Quick Test (Part 1 Of 3):
