Front

1. Position vehicle on level surface, then apply parking brake.
2. Turn ignition switch to Off or LOCK position, then raise hood.
3. Disconnect actuator electrical connectors from wiring harness electrical connectors.
4. Unsnap actuator protective cover.

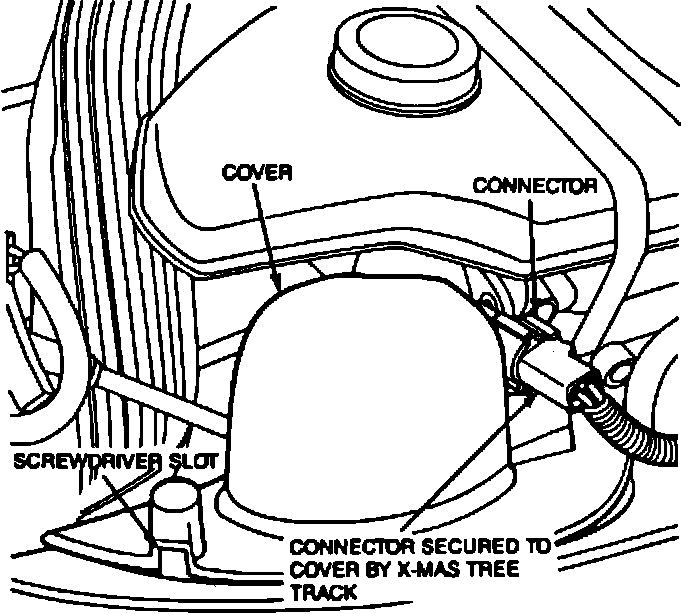

Fig. 9 Front Actuator Connector Removal:

5. Remove actuator connector from protective cover by inserting small screwdriver tip between connector and white X-MAS tree track.
6. Depress actuator attaching tabs, then remove actuator.
7. Grasp shock absorber piston rod end with suitable tool, noting position of piston rod flat on thread and actuator mounting bracket.
8. Remove actuator mounting bracket to shock absorber attaching nut.
9. Reverse procedure to install, noting the following:
a. Ensure flat on actuator mounting bracket aligns with flat on shock absorber piston end.
b. Torque actuator mounting bracket attaching nut to 27-35 ft lb.
