Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test G - Misfire Under Load >> Step G2

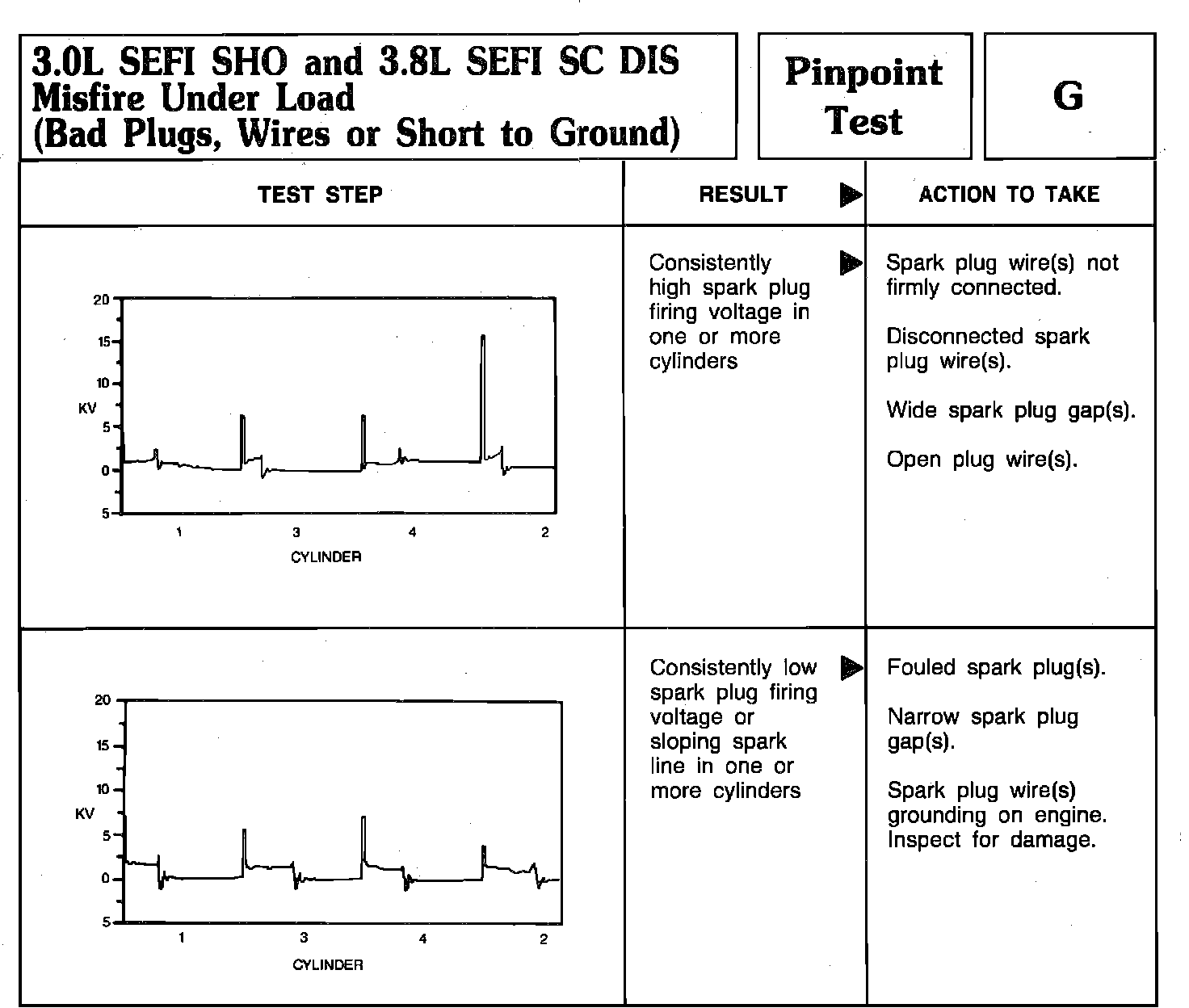

Step G2

Step G2:
