Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Powertrain Management >> Ignition System >> Testing and Inspection >> Pinpoint Tests >> Test D - Continuous Memory Codes 45,46, or 48 >> Steps D1 Through D2

Steps D1 Through D2

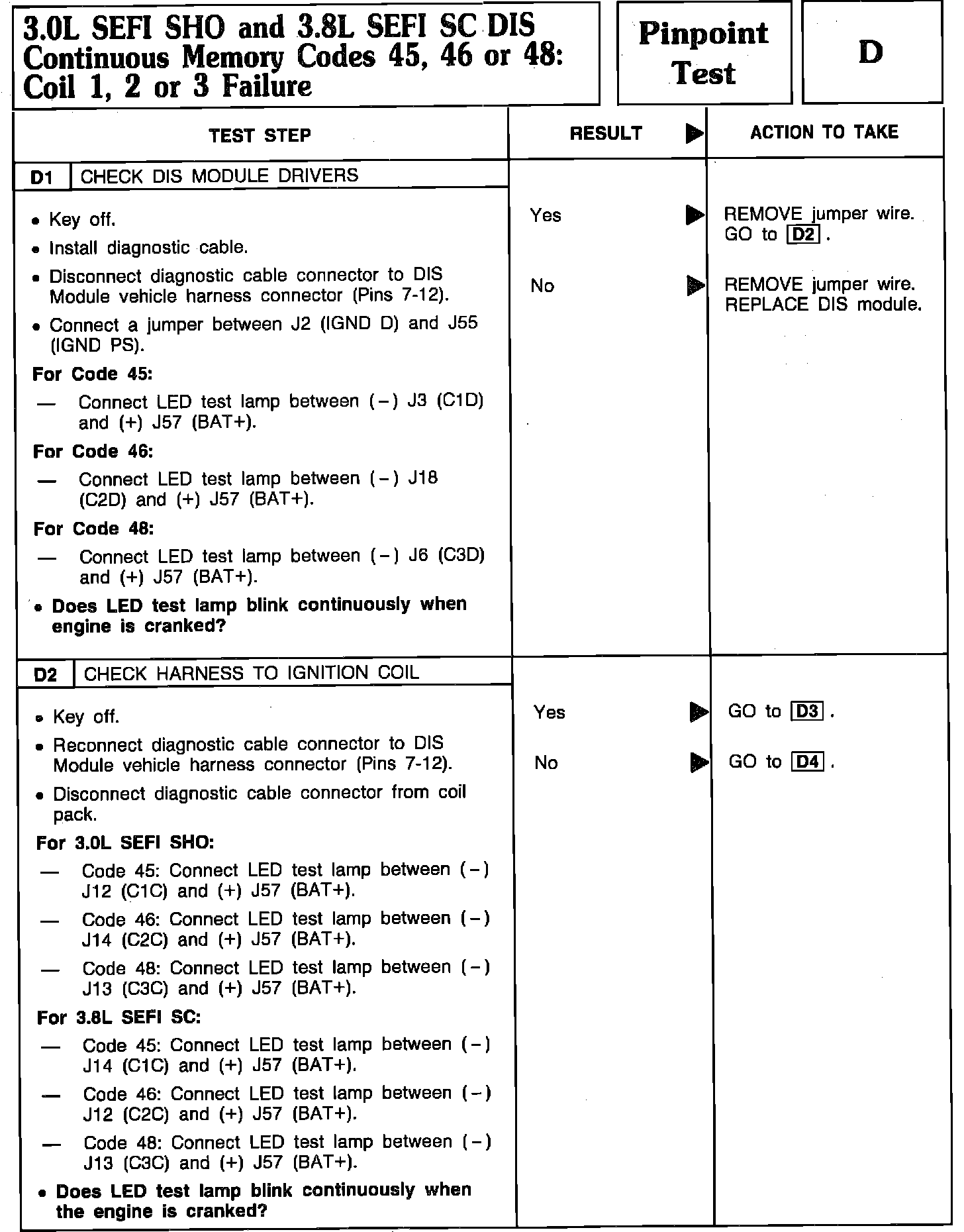

Codes 45, 46, or 48 Steps D1 thru D2:
