Electronic Chime Diagnosis - Manual Revision

90ford19 SHOP MANUAL - 1990 - PAGE 33-50-5 - STEP 1.11 OF DIAGNOSIS PROCEDURE REVISED
Article No. 90-12B-2
FORD: 1990 THUNDERBIRD

LINCOLN-MERCURY: 1990 COUGAR

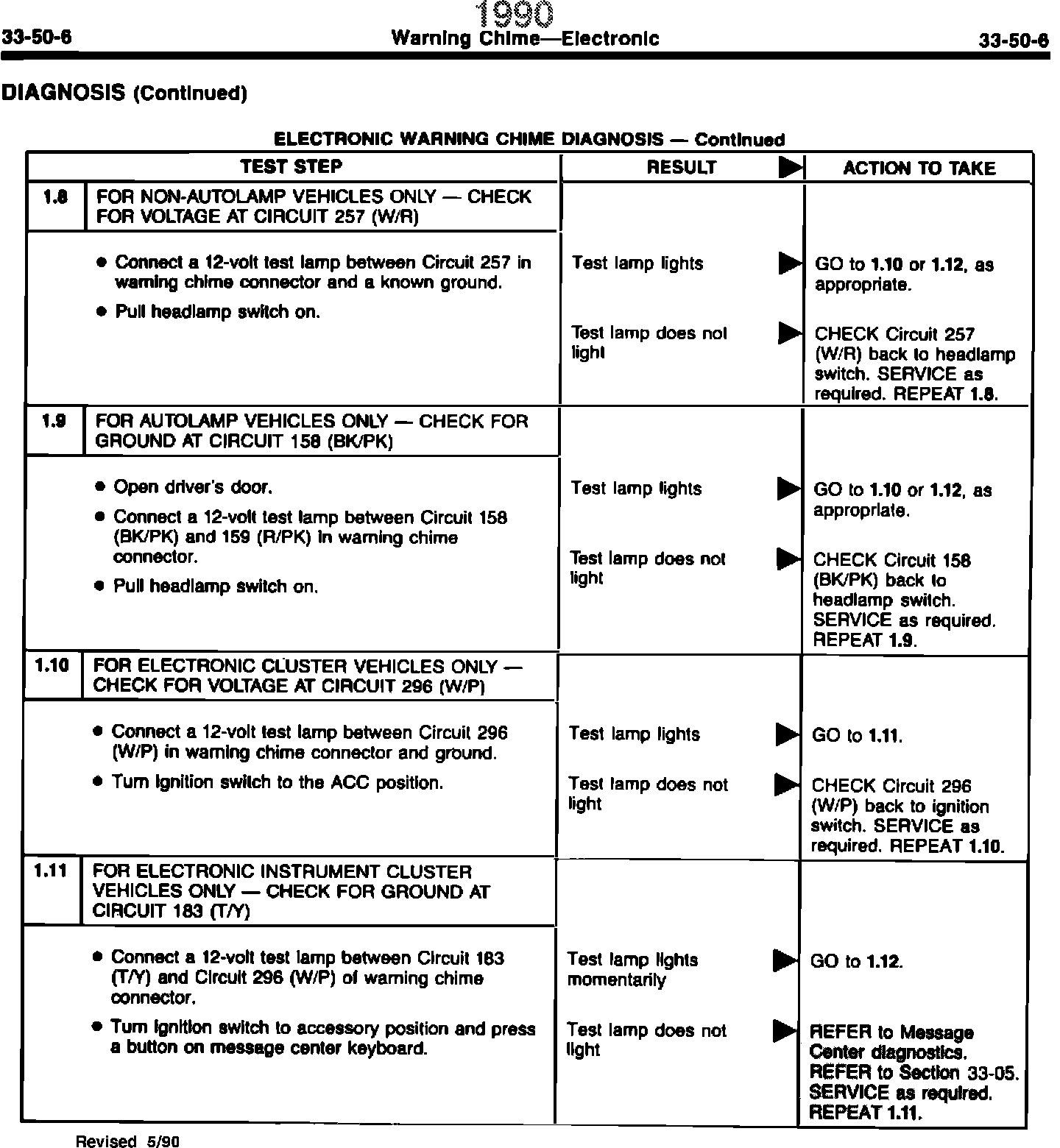

ISSUE: Step 1.11, on page 33-50-5 of the 1990 Thunderbird/Cougar Shop Manual, incorrectly directs the technician to section 33-61.

ACTION: Refer to the pages following this TSB article for the revised directions which indicated section 33-05.
OTHER APPLICABLE ARTICLES: NONE
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
