Engine Mount: Service and Repair

Engine Mount Removal:

Whenever self-locking mounting bolts and nuts are removed, they must be replaced with new self-locking bolts and nuts.
1. Remove fan shroud attaching screws, then remove air tube from remote air cleaner.
2. Raise and support vehicle, then support engine using a jack and wood block placed below engine.

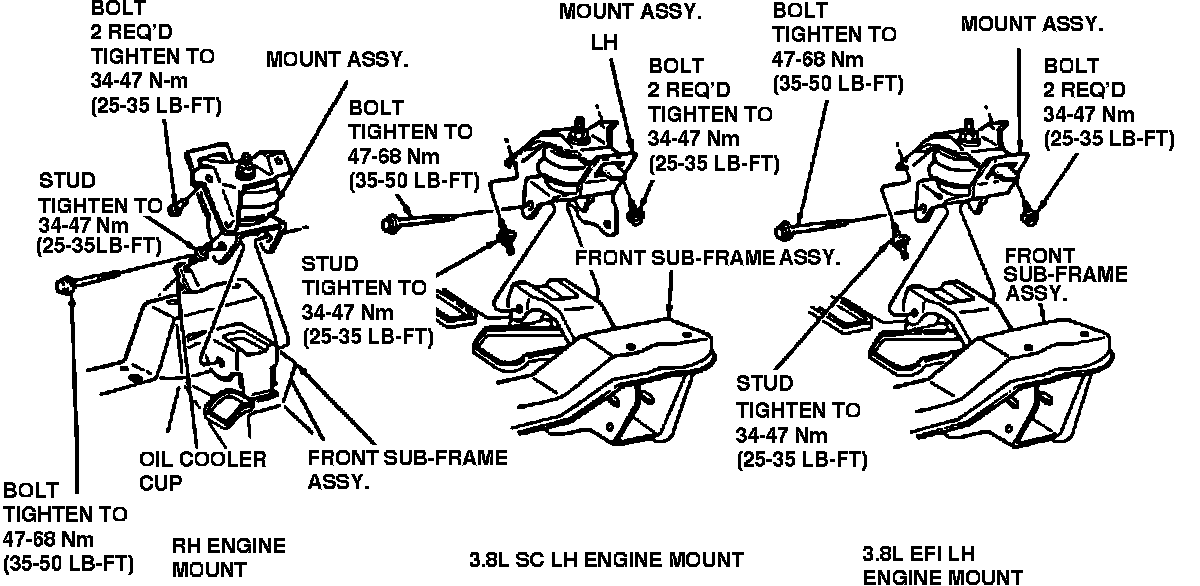

3. Remove insulator to front subframe through bolts, Fig. 1.
4. Disconnect shift linkage, then raise engine enough to clear clevis brackets.
5. Remove accessories and oil cooler line attaching clips from engine support brackets.
6. Remove bolts attaching insulator bracket assembly to engine, then remove insulator and bracket. Left front engine mount removal on supercharged engine may require lowering front subframe.
7. Reverse procedure to install. Tighten to specifications.
