F Brake Lamp ON (Antilock Lamp OFF, Parking Brake OFF)
>>
F3 to F4
F3 to F4

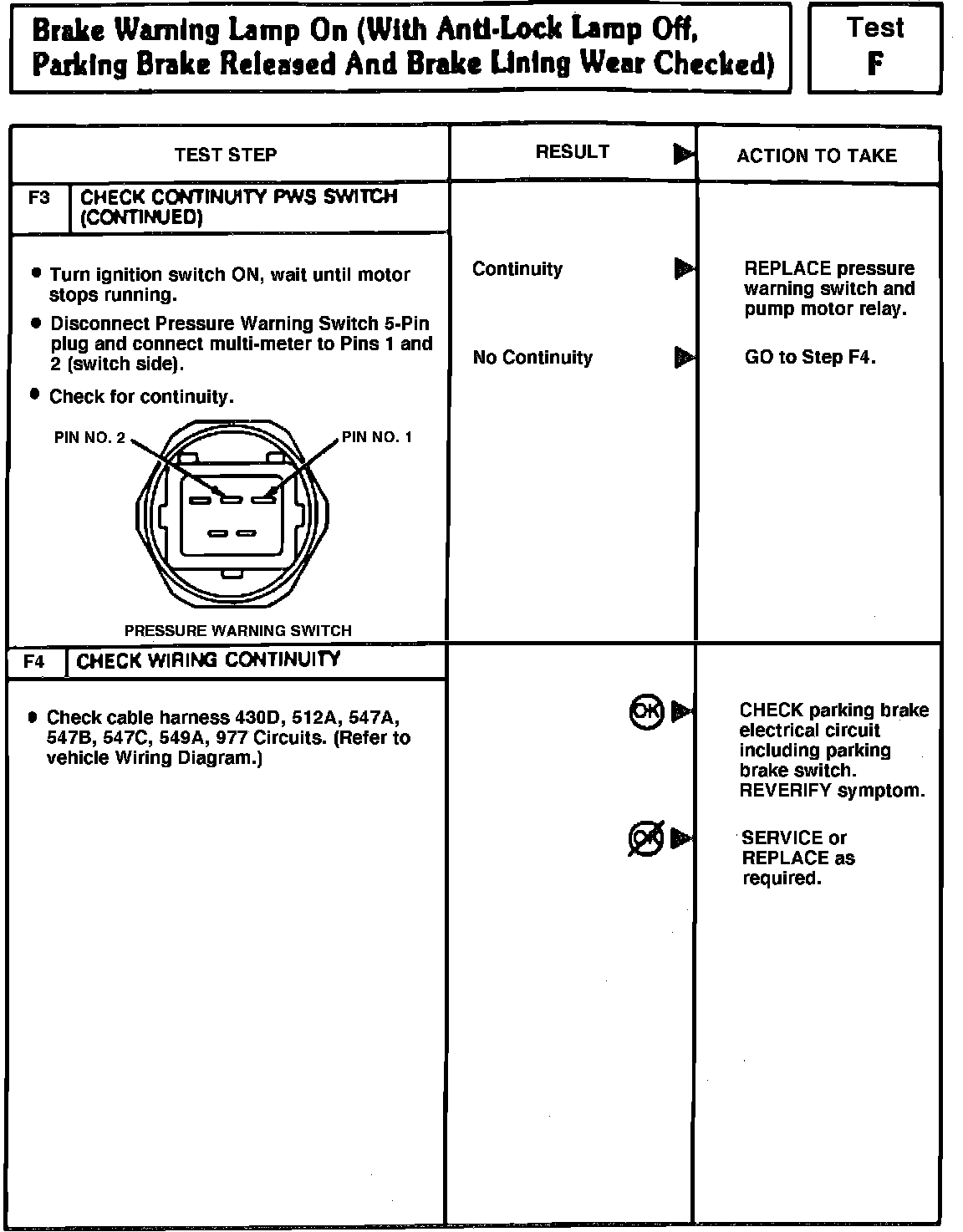

Fig. 28 Test F, Brake Warning Lamp On w/ABS Lamp Off, Parking Brake Released & Lining Wear Checked (Part 2 Of 2):
