Home >> Mercury >> 1990 >> Cougar/XR7 V6-232 3.8L SC >> Repair and Diagnosis >> Brakes and Traction Control >> Antilock Brakes / Traction Control Systems >> Testing and Inspection >> Pinpoint Tests >> DD Wheel Sensor Diagnosis >> DD11 & DD11A

DD11 & DD11A

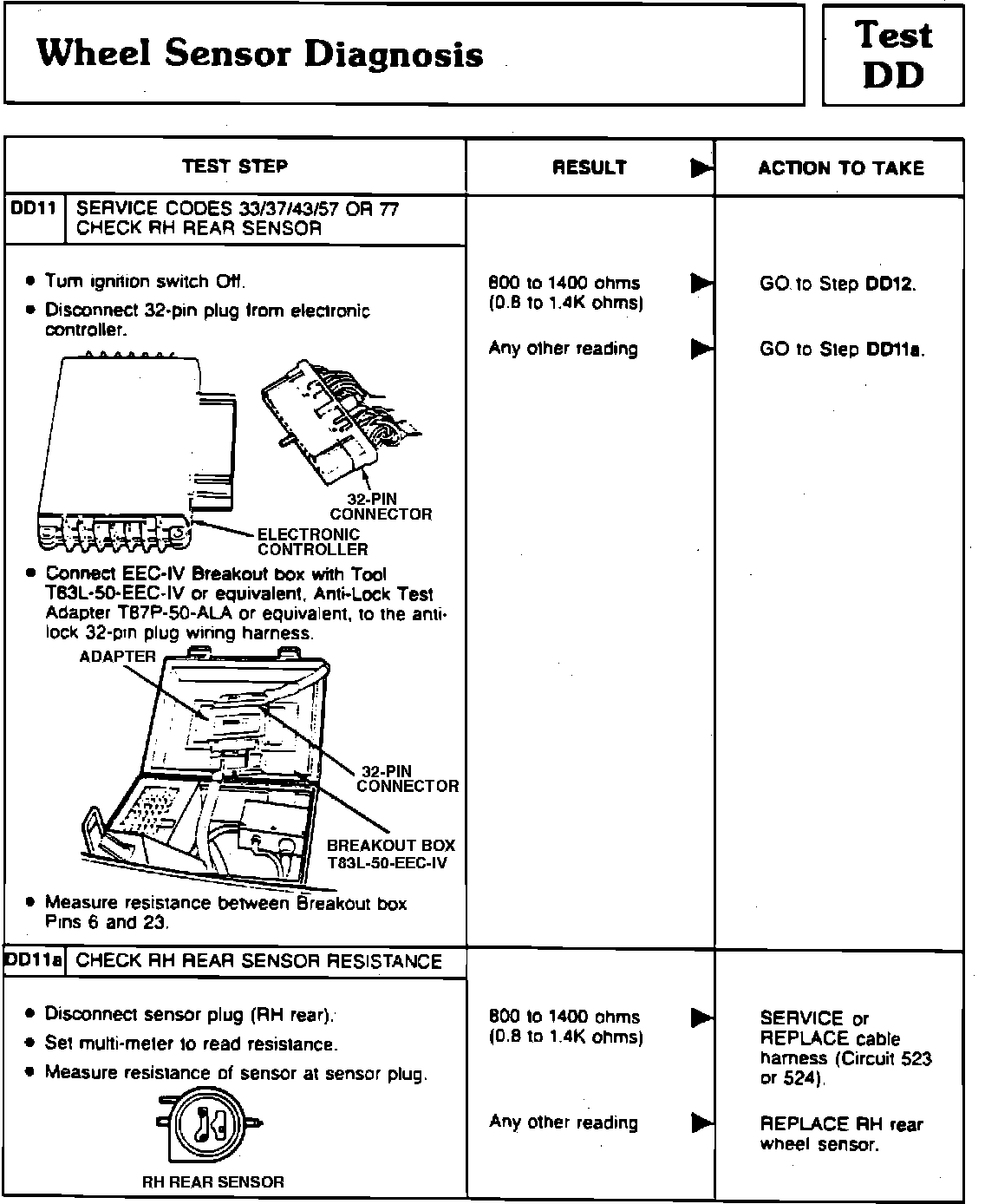

Fig. 15 Test DD, Wheel Sensor Diagnosis (Part 5 Of 12):
