D Antilock Lamp & Brake Lamp On or Pump Runs 60 Seconds
>>
D4A, D5, D6
D4A, D5, D6

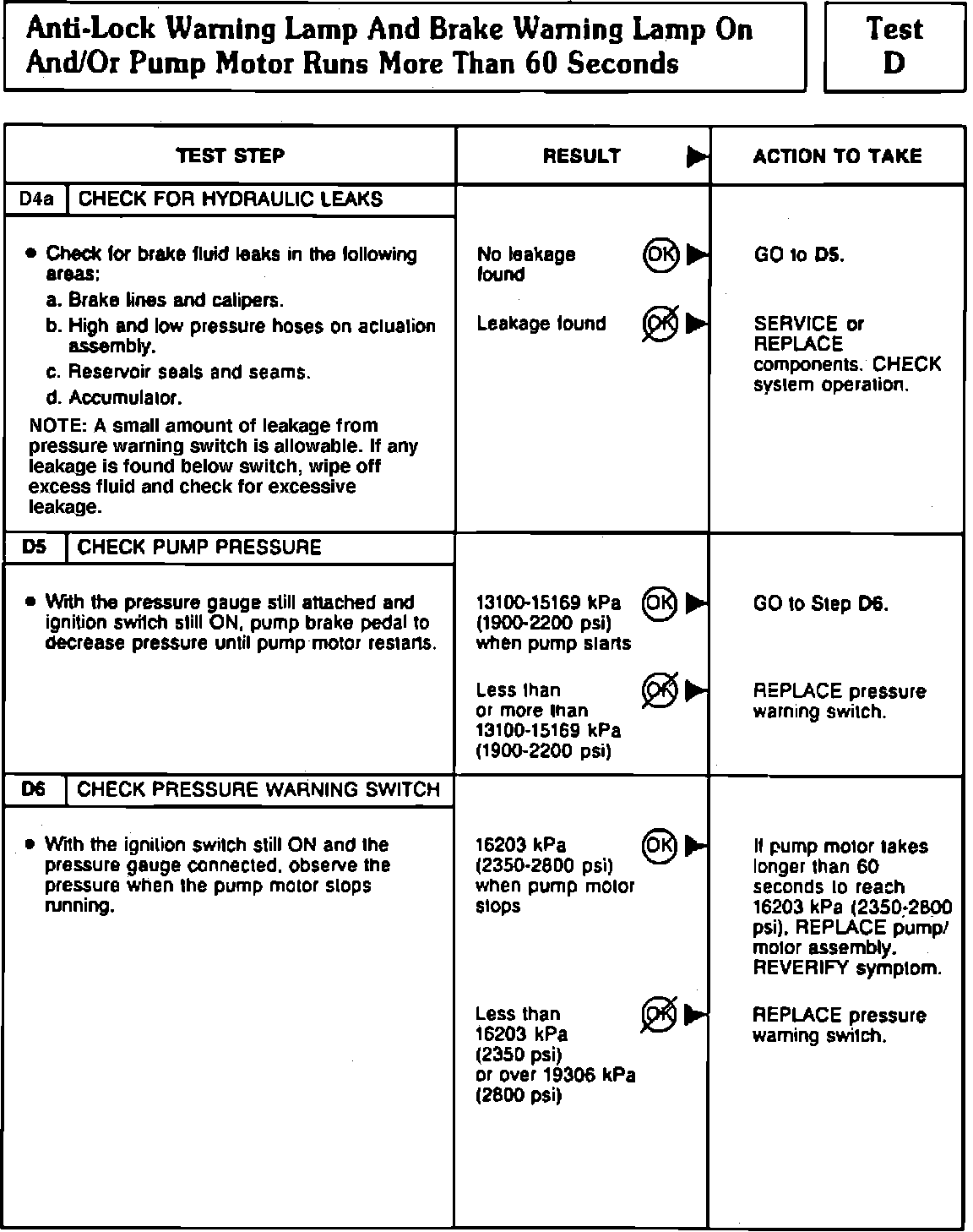

Fig. 26 Test D, Warning Lamp & Brake Warning Lamp On and/Or Pump Motor Runs More Than 60 Seconds (Part 10 Of 10):
