Home >> Mercury >> 1990 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> 8 - Forward Crash Sensor Improperly Attached or Grounded

8 - Forward Crash Sensor Improperly Attached or Grounded

Test Steps:

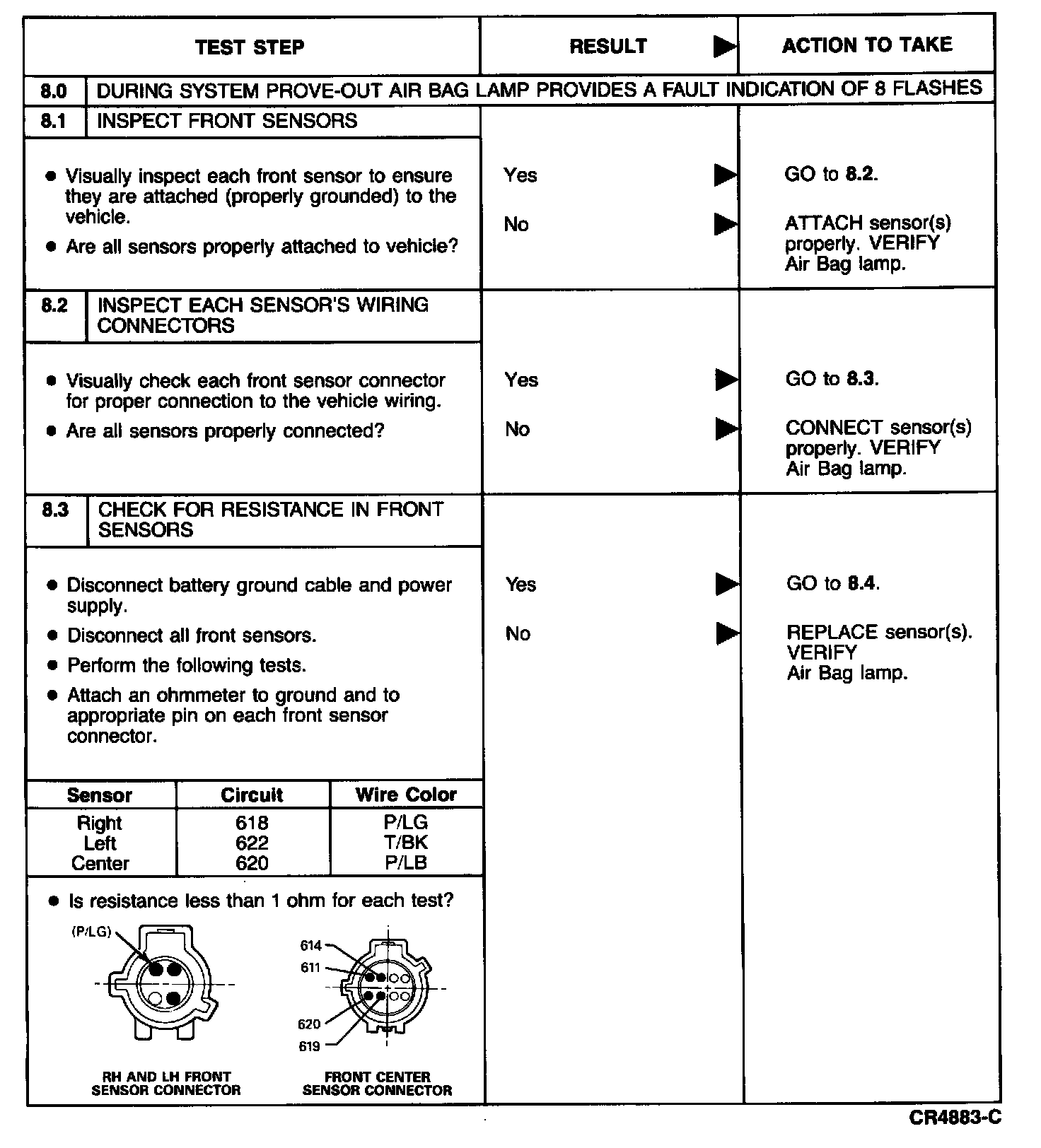

8.0 - 8.3:

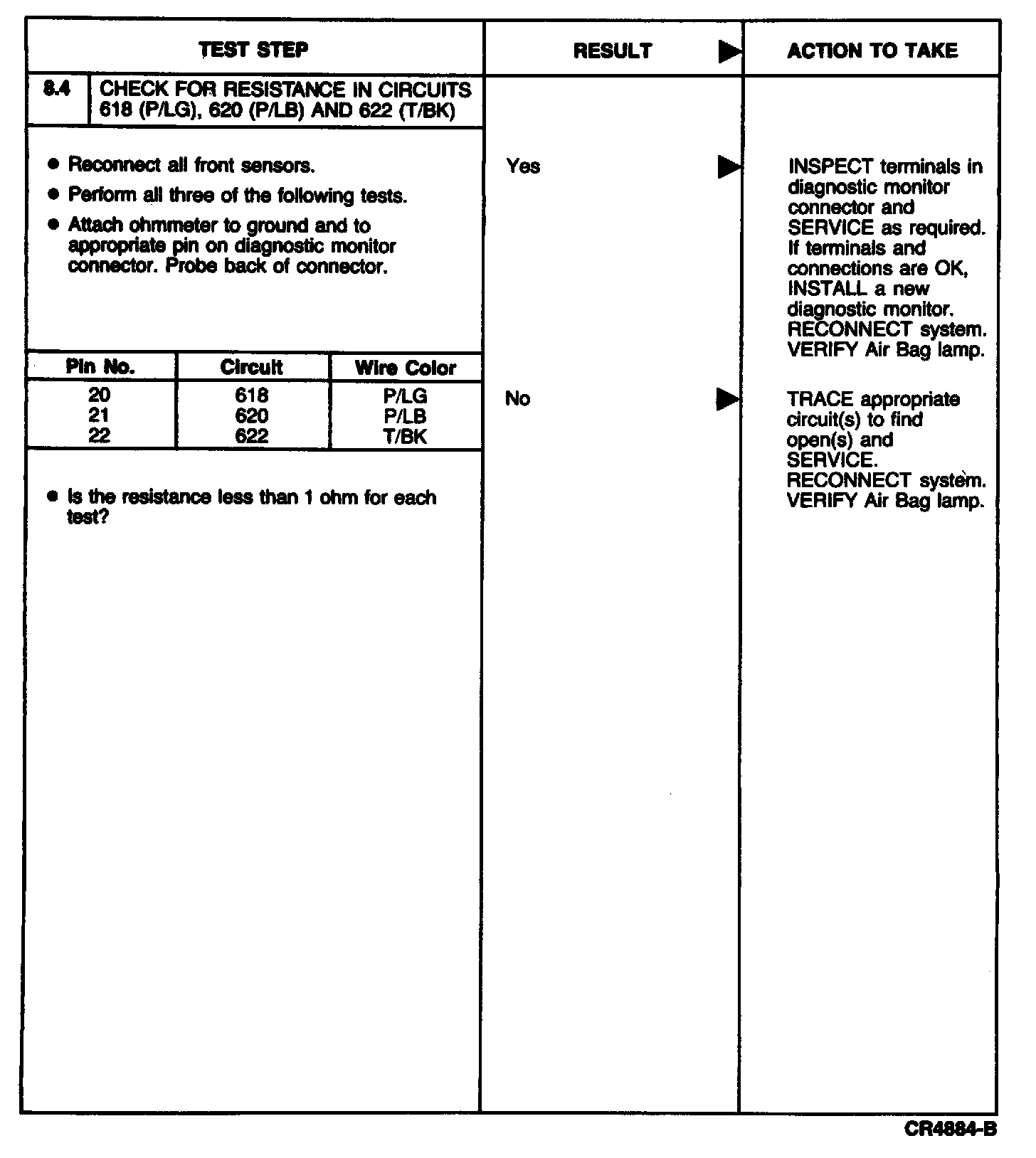

8.4:
