4 - Potential Short in Air Bag Deployment Circuit
4 - Potential Short in Air Bag Deployment Circuit
Test Steps:

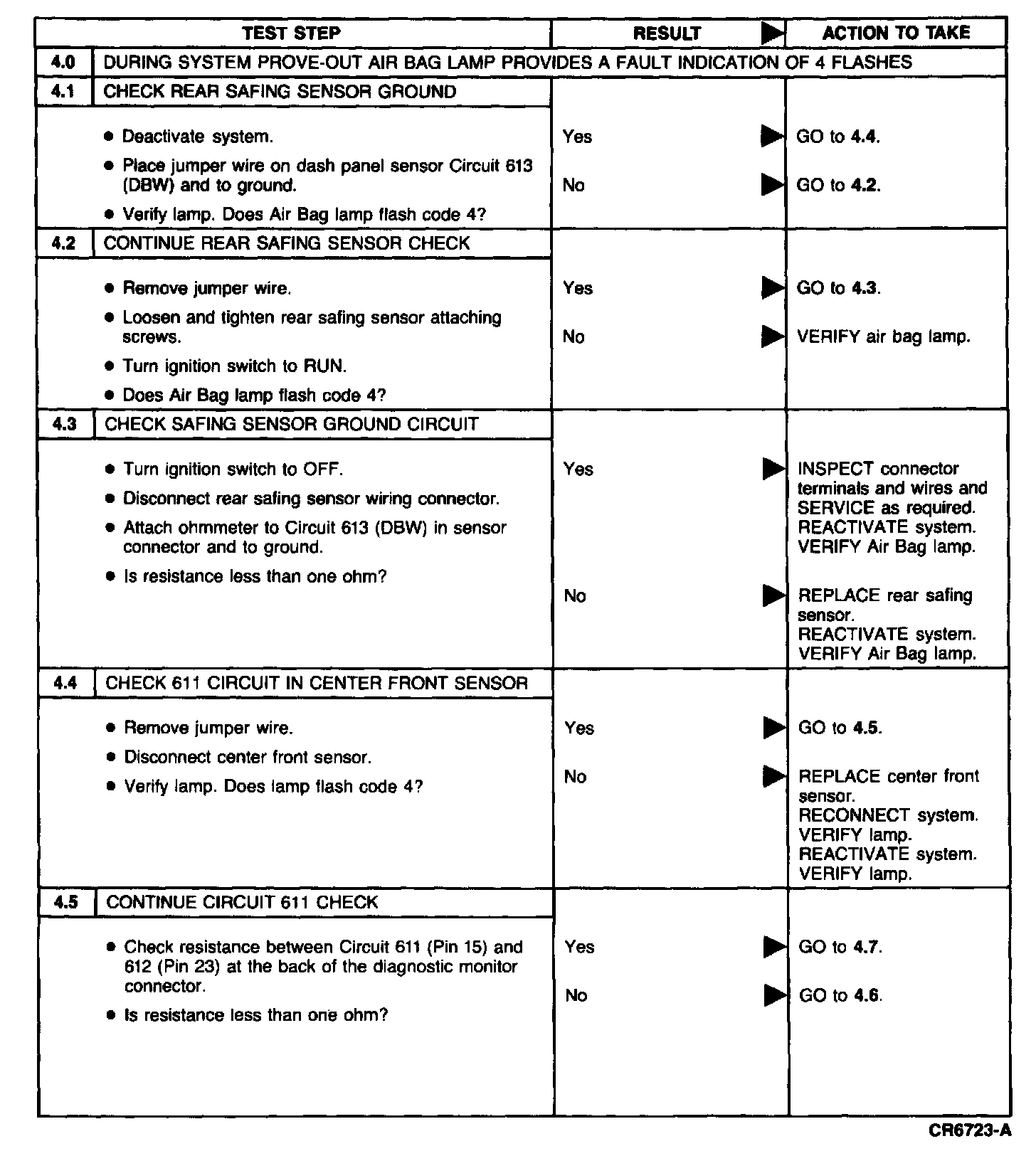

4.0 - 4.5:

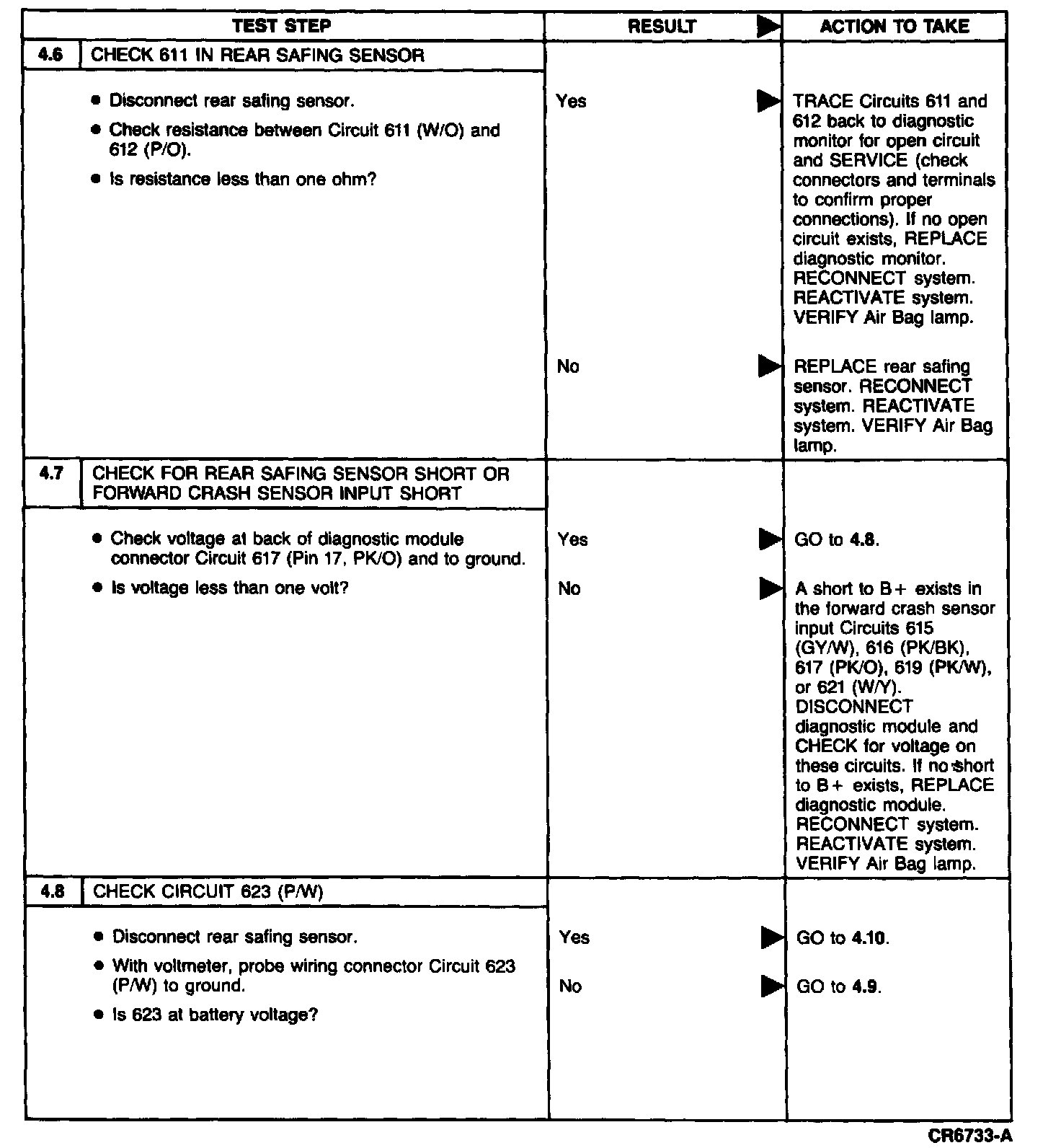

4.6 - 4.8:

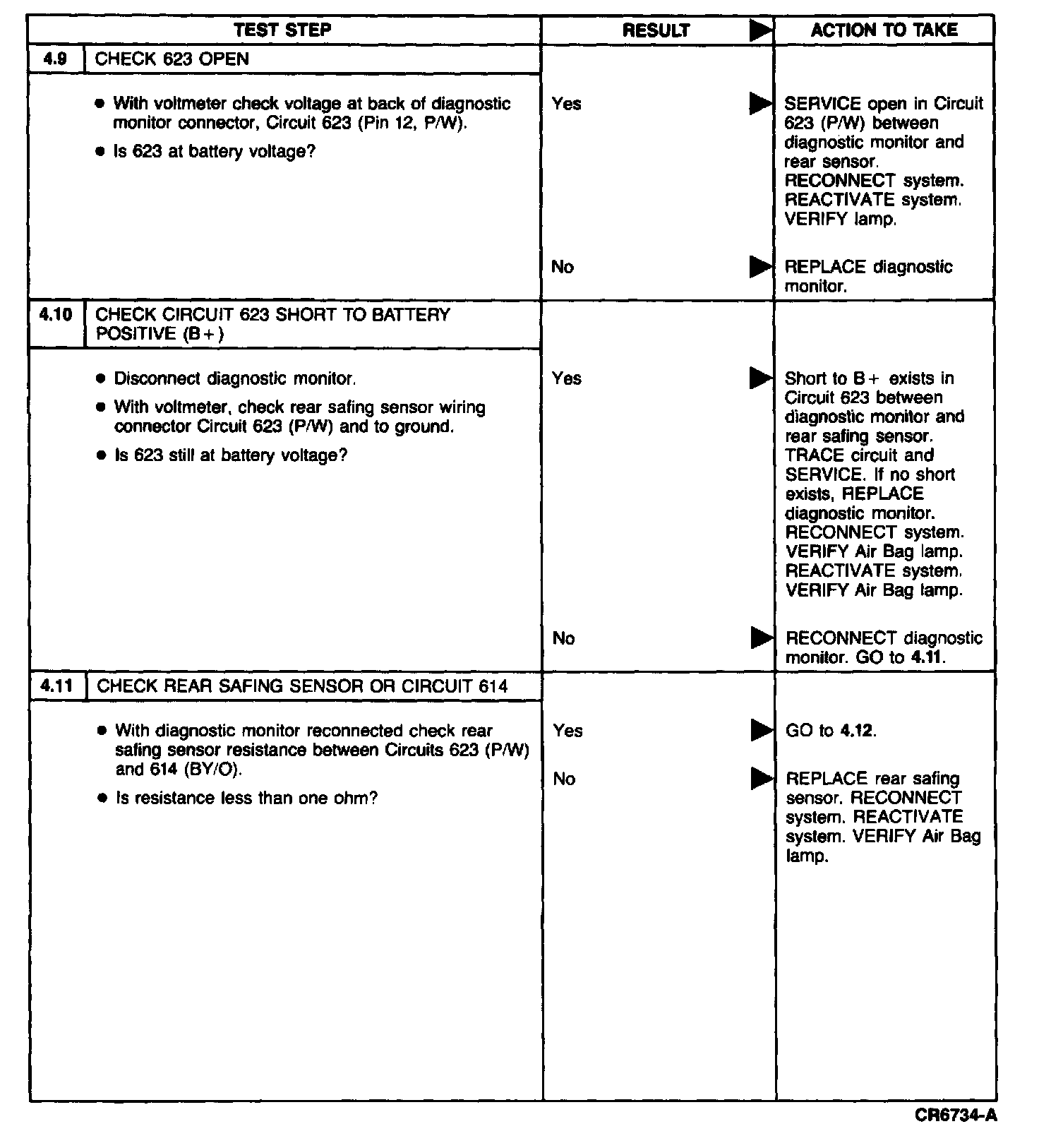

4.9 - 4.11:

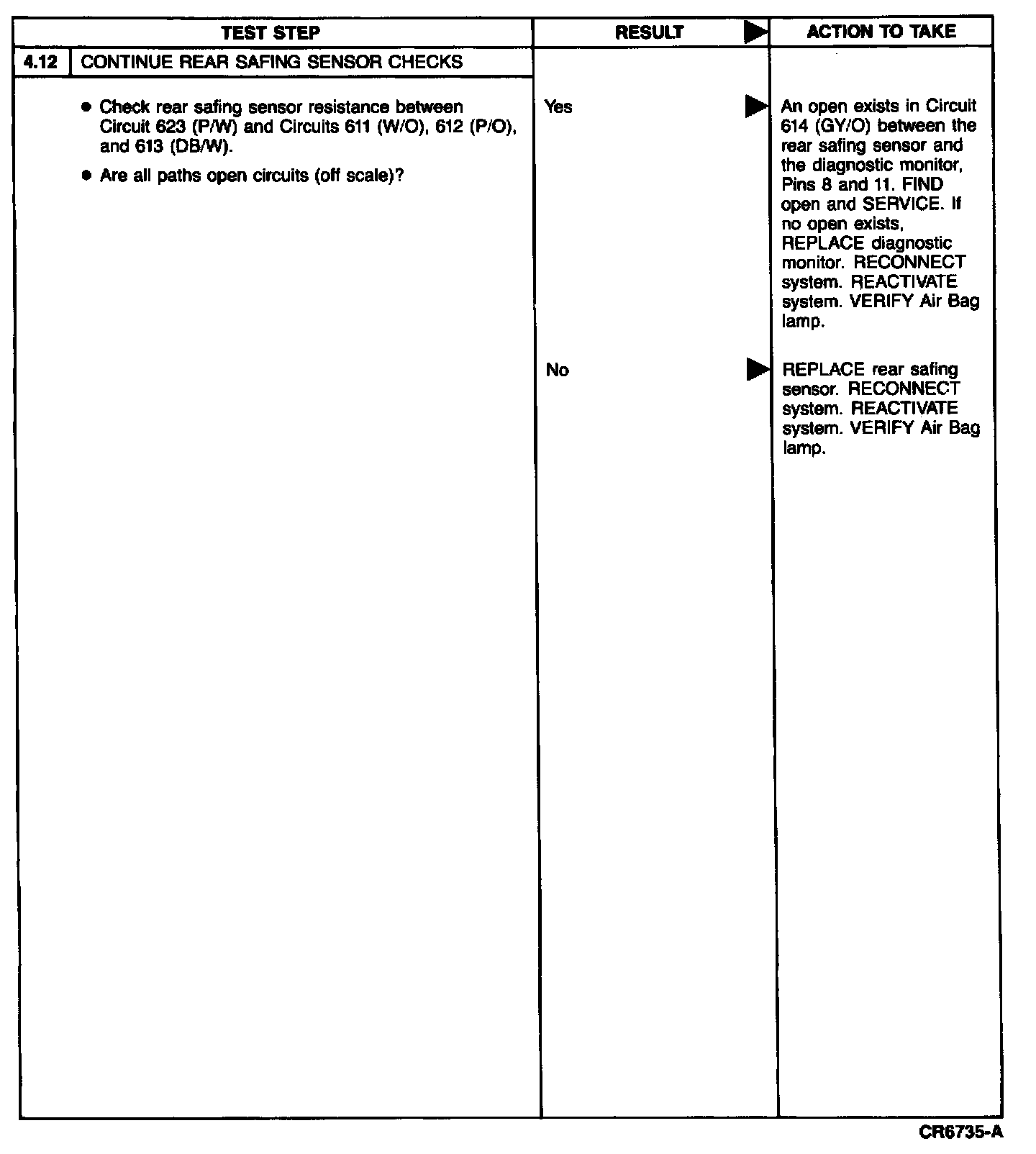

4.12:
