Home >> Mercury >> 1990 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Testing and Inspection >> Diagnostic Trouble Code Tests and Associated Procedures >> Manufacturer Code Charts >> 2 - All Forward Crash Sensors Disconnected

2 - All Forward Crash Sensors Disconnected

Test Steps:

2.0 - 2.2:

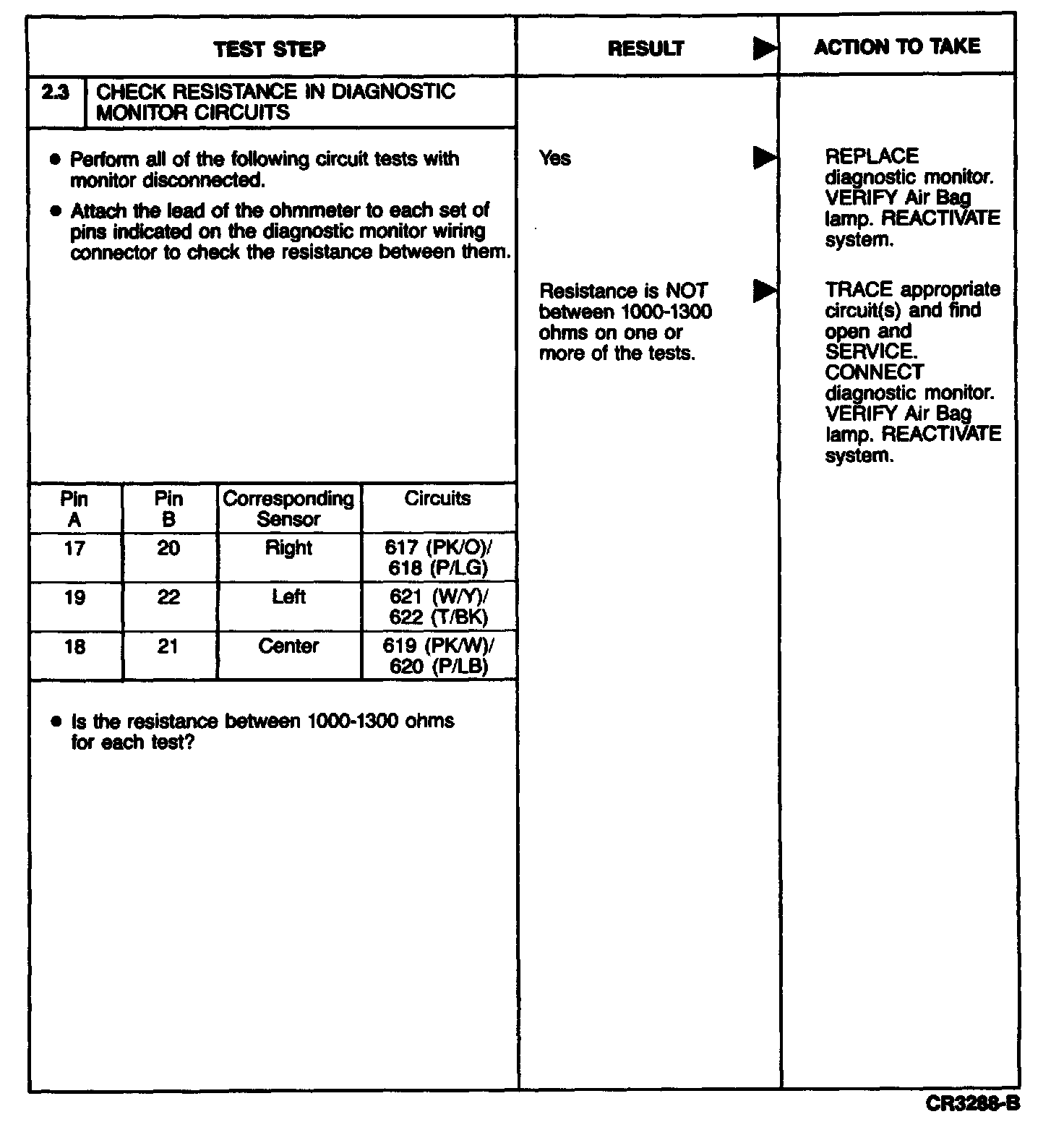

2.3:
