Air Door Actuator / Motor: Service and Repair

REMOVAL
1. Remove the plenum assembly from the vehicle.
2. Disconnect the electrical harness, to the temperature controller on the control assembly, from the blend door actuator.

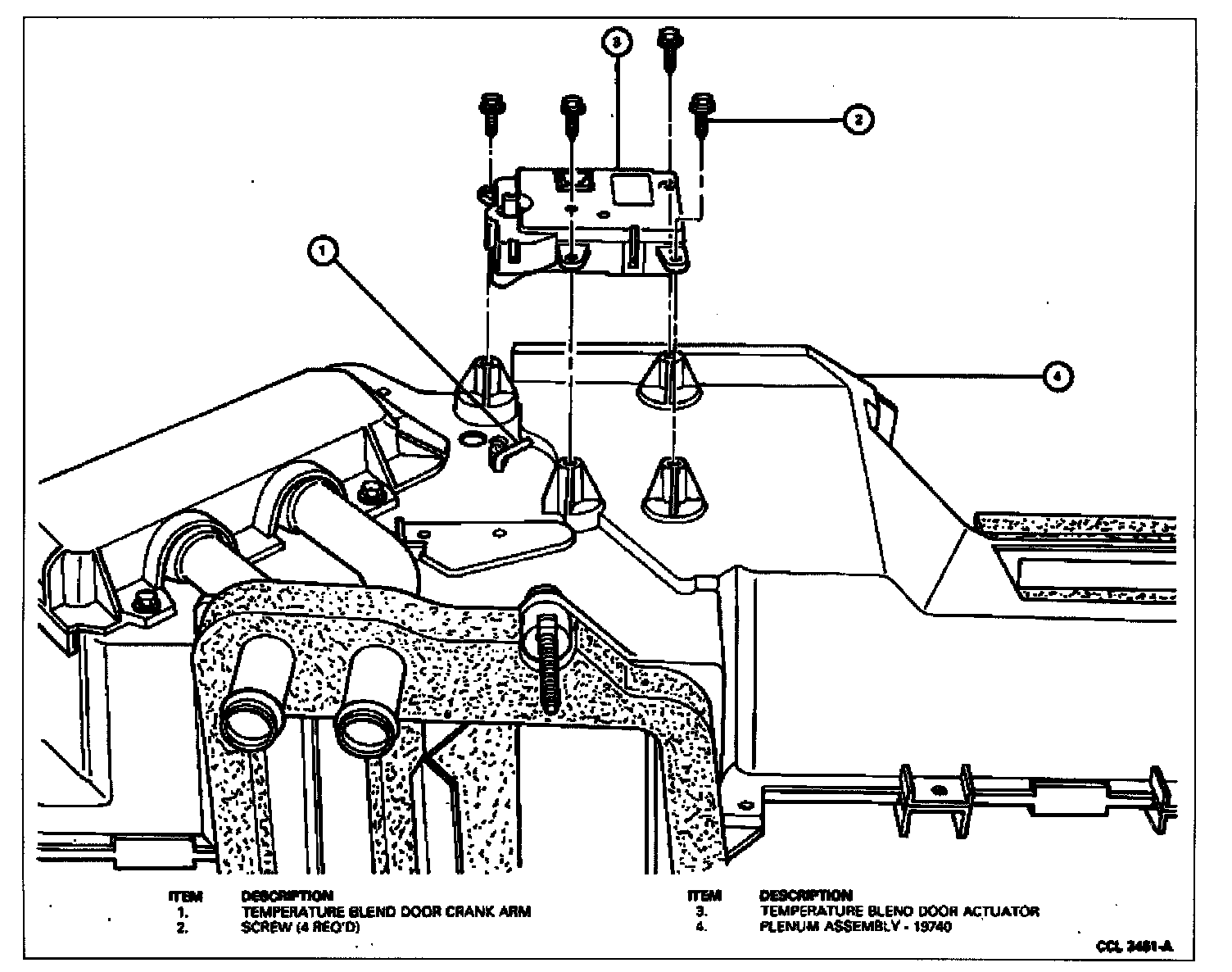

3. Remove the four screws and remove the blend door actuator from the plenum assembly.

INSTALLATION
1. Position the blend door actuator on the plenum assembly. be sure the actuator cam is properly engaged with the temperature blend door crankarm.
2. Install the four screws that secure the blend door actuator to the plenum assembly.
3. Connect the temperature controller electrical harness to the blend door actuator.
4. Install the plenum assembly in the vehicle.
