Home >> Mercury >> 1990 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Powertrain Management >> System Diagram >> California Emission Vehicle

California Emission Vehicle

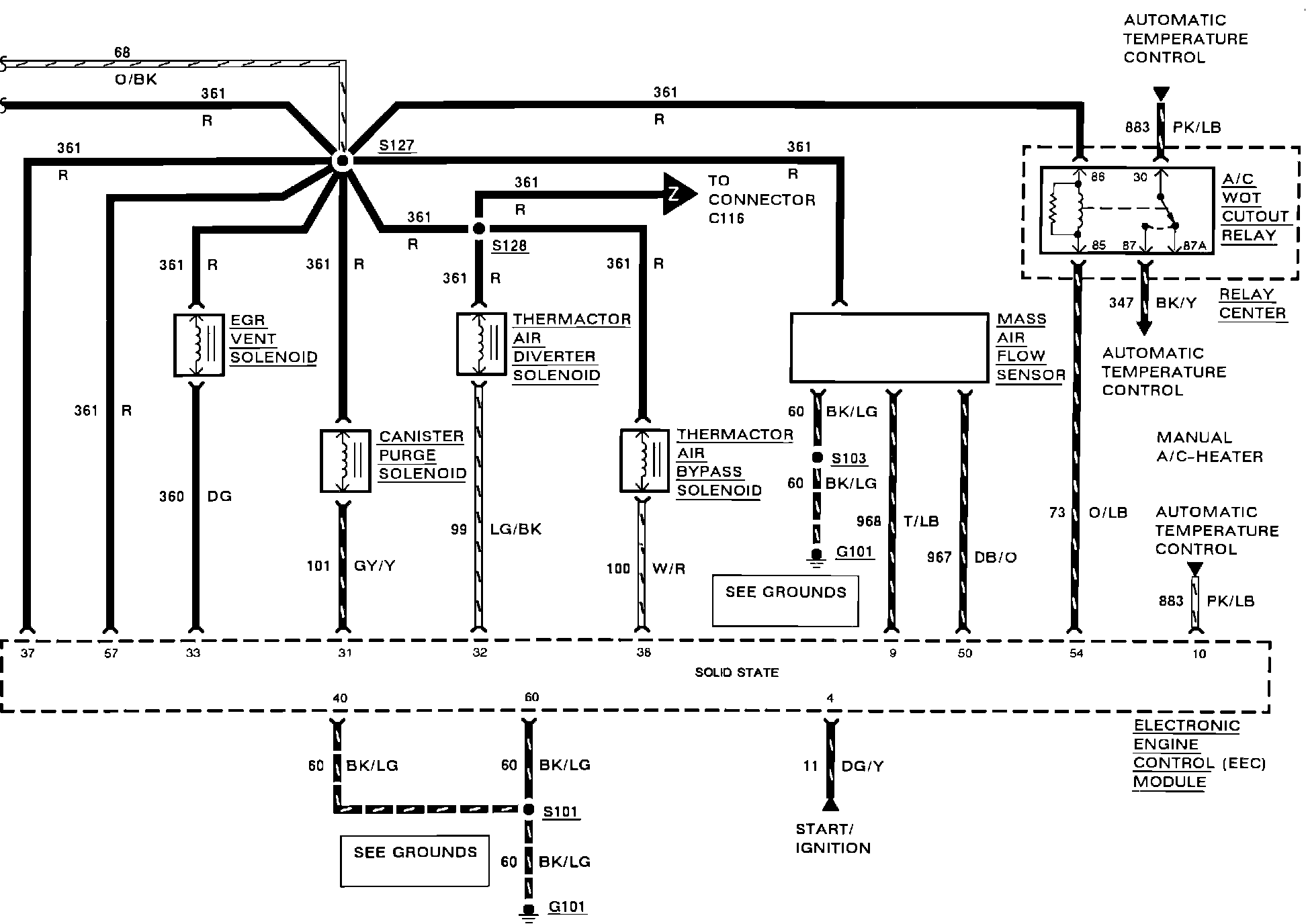

Electronic Engine Control - California:

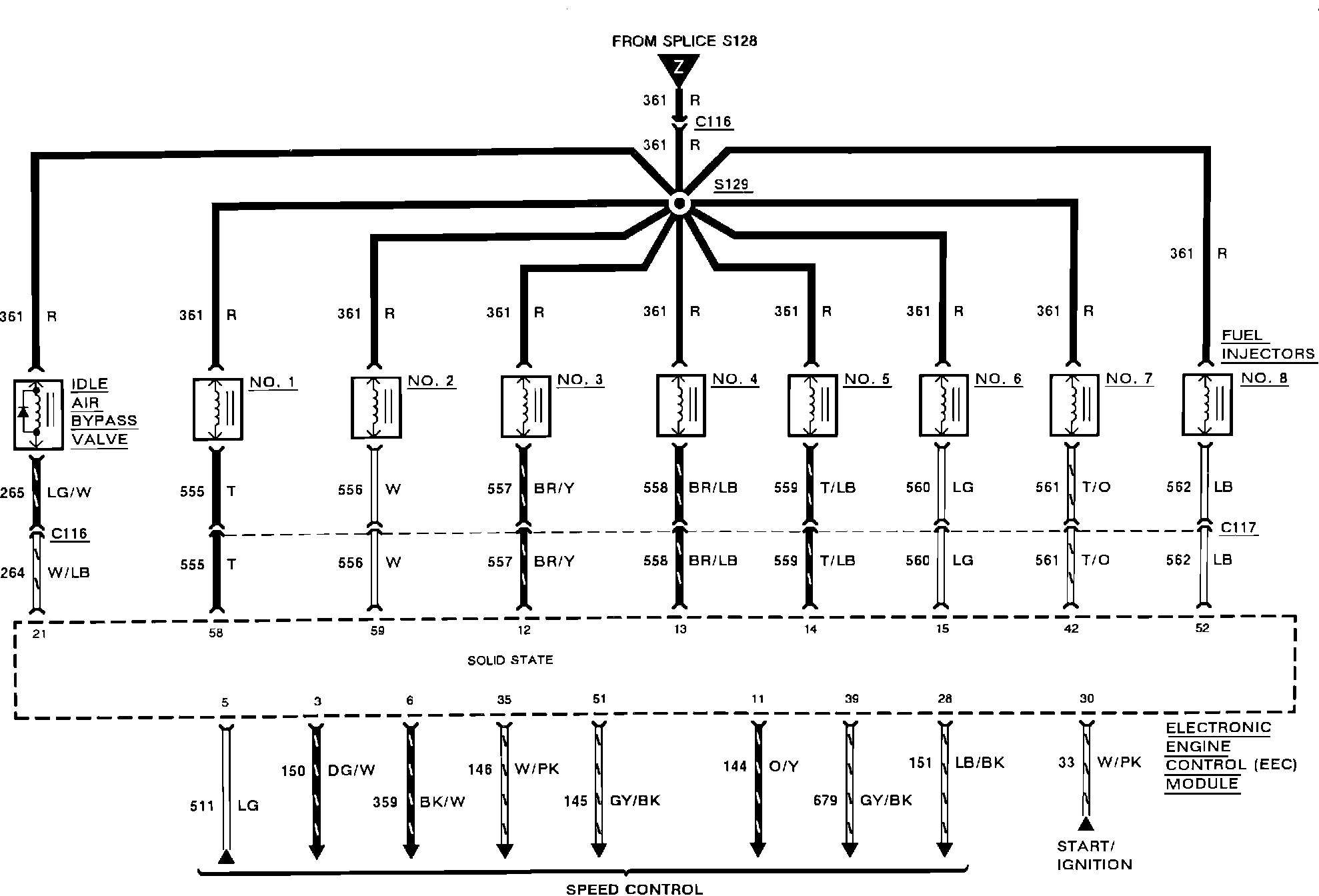

Electronic Engine Control - California:

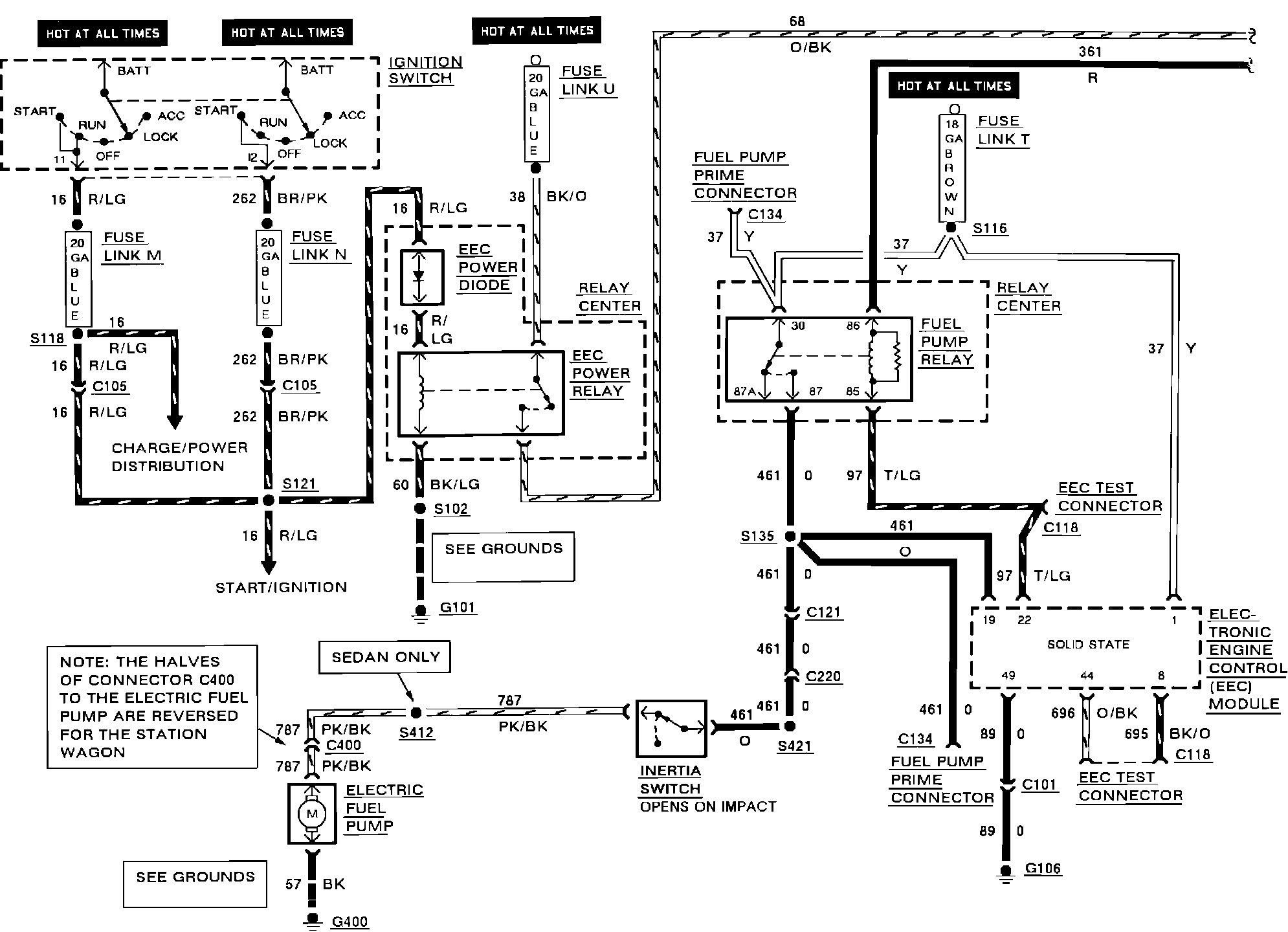

Electronic Engine Control - California:






Electronic Engine Control - California:
