Home >> Mercury >> 1990 >> Colony Park V8-302 5.0L VIN F FI >> Repair and Diagnosis >> Diagrams >> Electrical Diagrams >> Power and Ground Distribution >> System Diagram >> Ground Distribution >> G100, G101, G107, G108

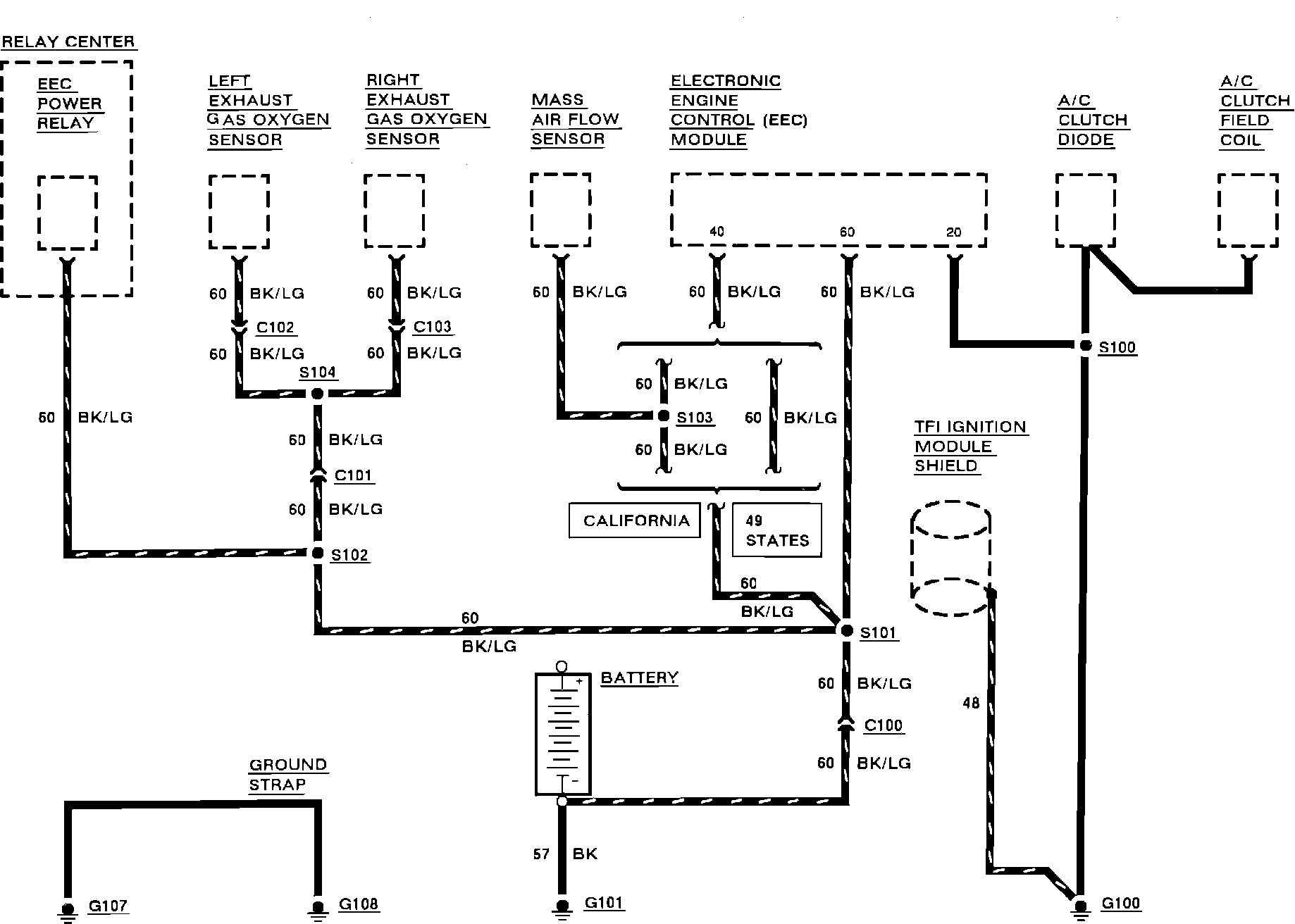

G100, G101, G107, G108

G100,G101,G107,G108:
