Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Tests WW 04 - WW 05

Tests WW 04 - WW 05

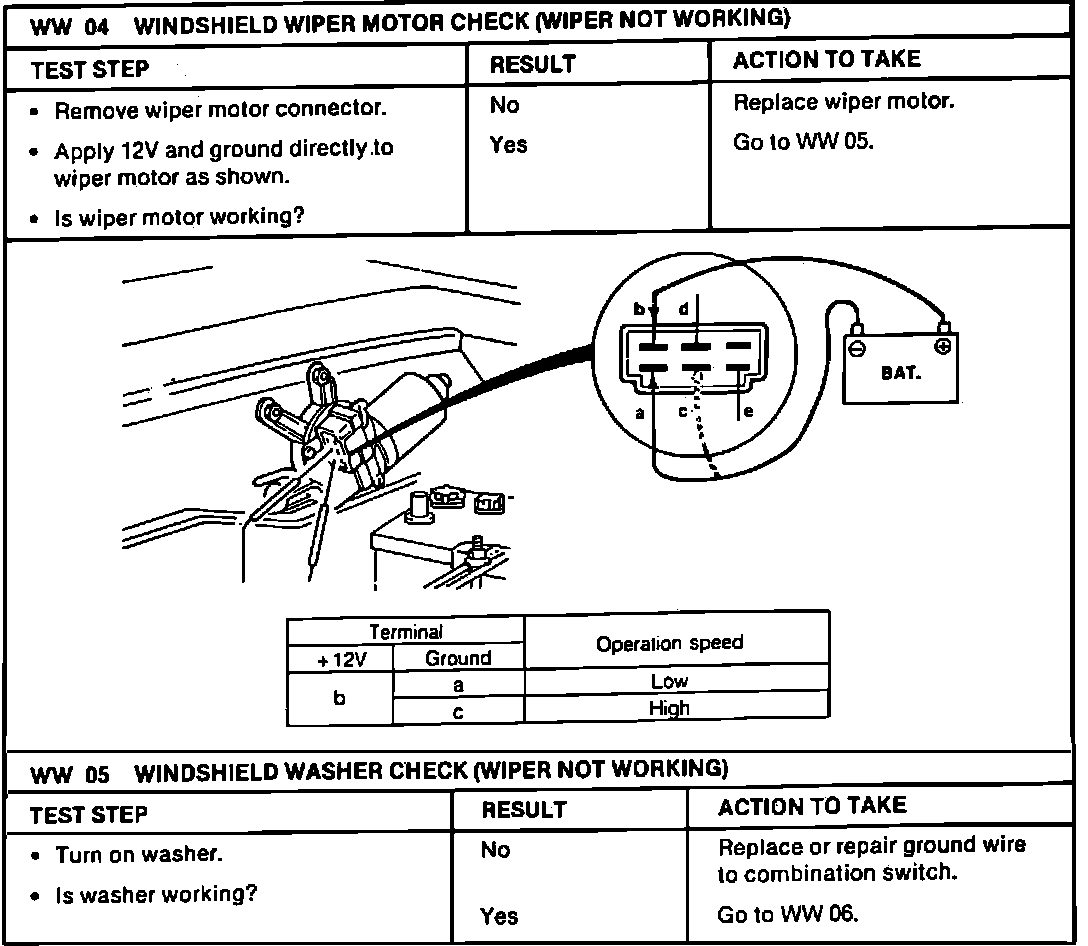

Fig. 18 Wiper System Diagnosis & Testing (Part 2 Of 7):
