Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Test WW 10

Test WW 10

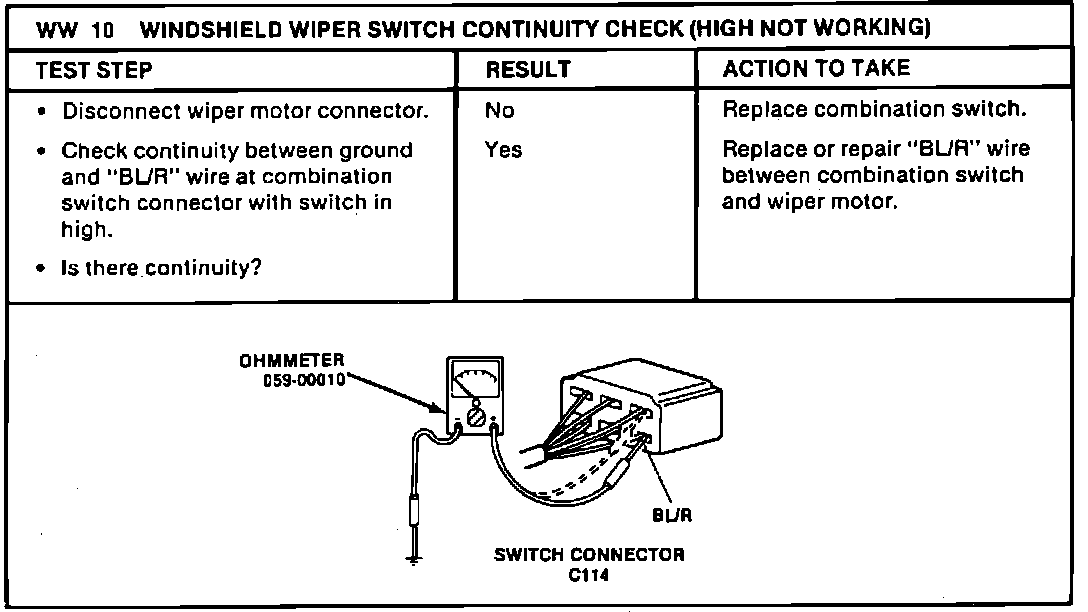

Fig. 18 Wiper System Diagnosis & Testing (Part 5 Of 7):
