Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Function Check: Test WW 01 - WW 03

Function Check: Test WW 01 - WW 03

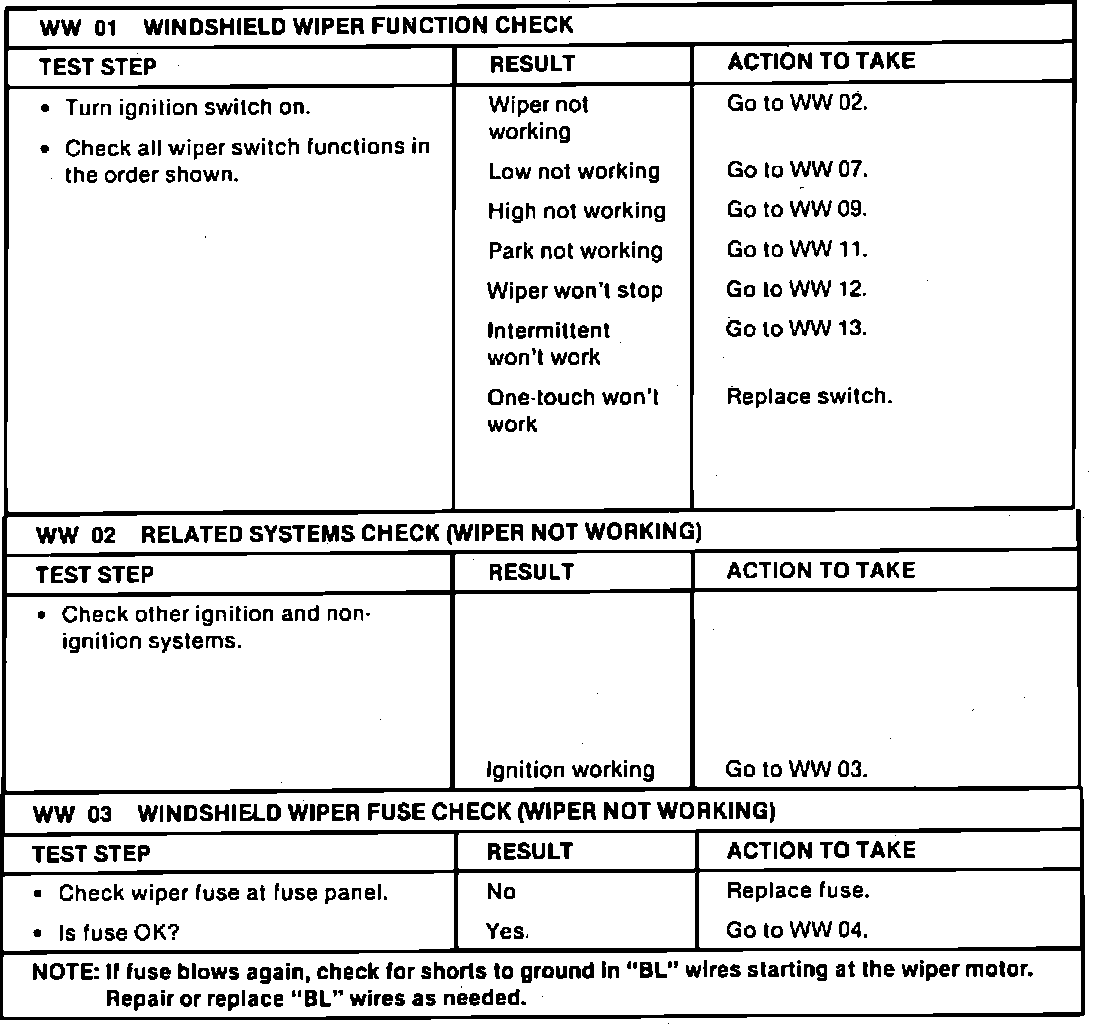

Fig. 18 Wiper System Diagnosis & Testing (Part 1 Of 7):
