Cooling Fan Relay Circuit - Manual Revision

90ford14
ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL- 1989-PAGE 33-COOLING FAN RELAY CIRCUIT

REVISED

Article No. 90-6B-24







LINCOLN-MERCURY: 1989 TRACER

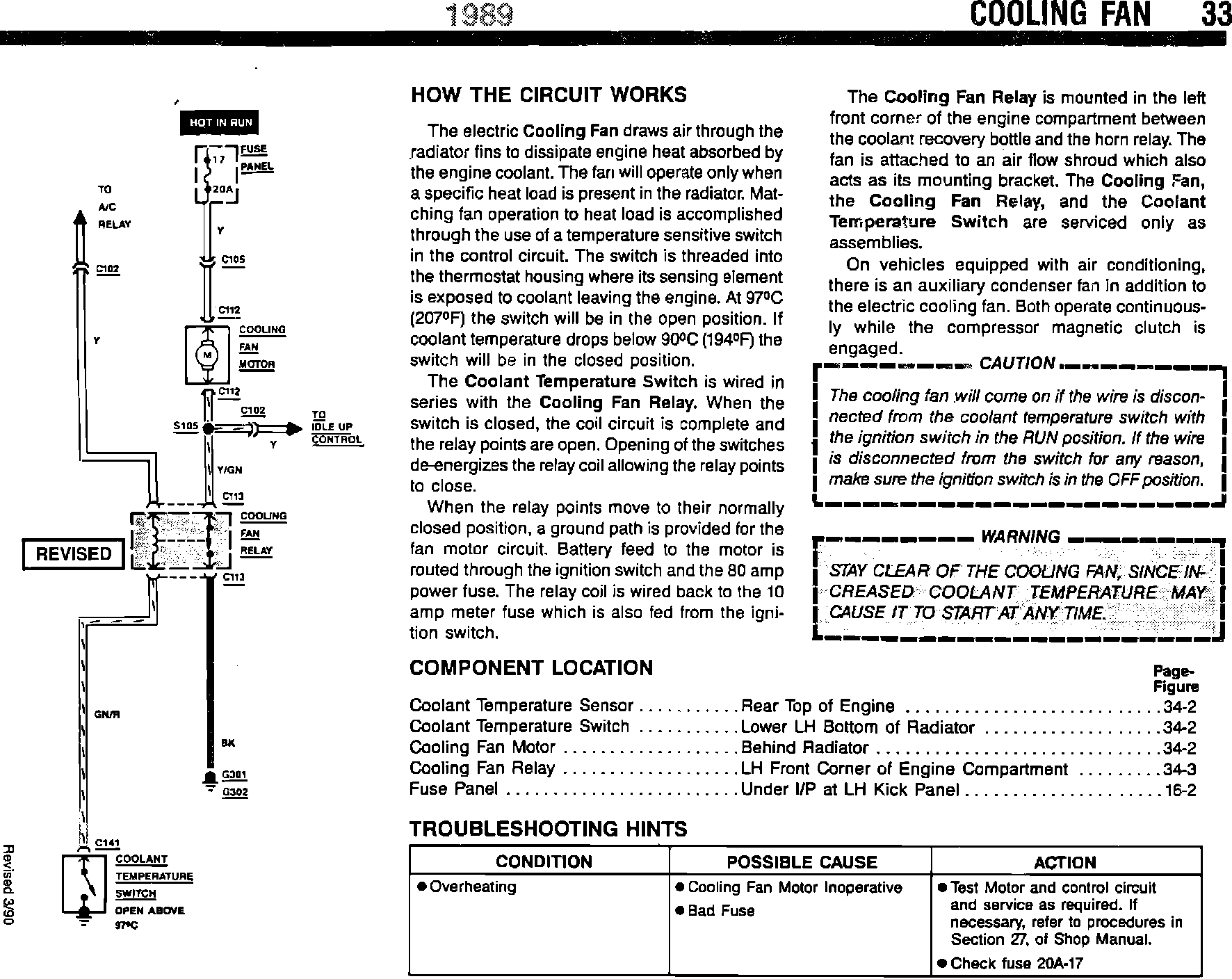

ISSUE: The cooling fan relay circuit on page 33 of the 1989 Tracer EVTM is incorrect. The schematic has been revised to show the relay in the CLOSED position.

ACTION: Refer to the pages following this TSB article for the revised schematic.

OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 2800
