Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Idle - Idle-Up System >> Idle 3 - E/L Wiring Inspection

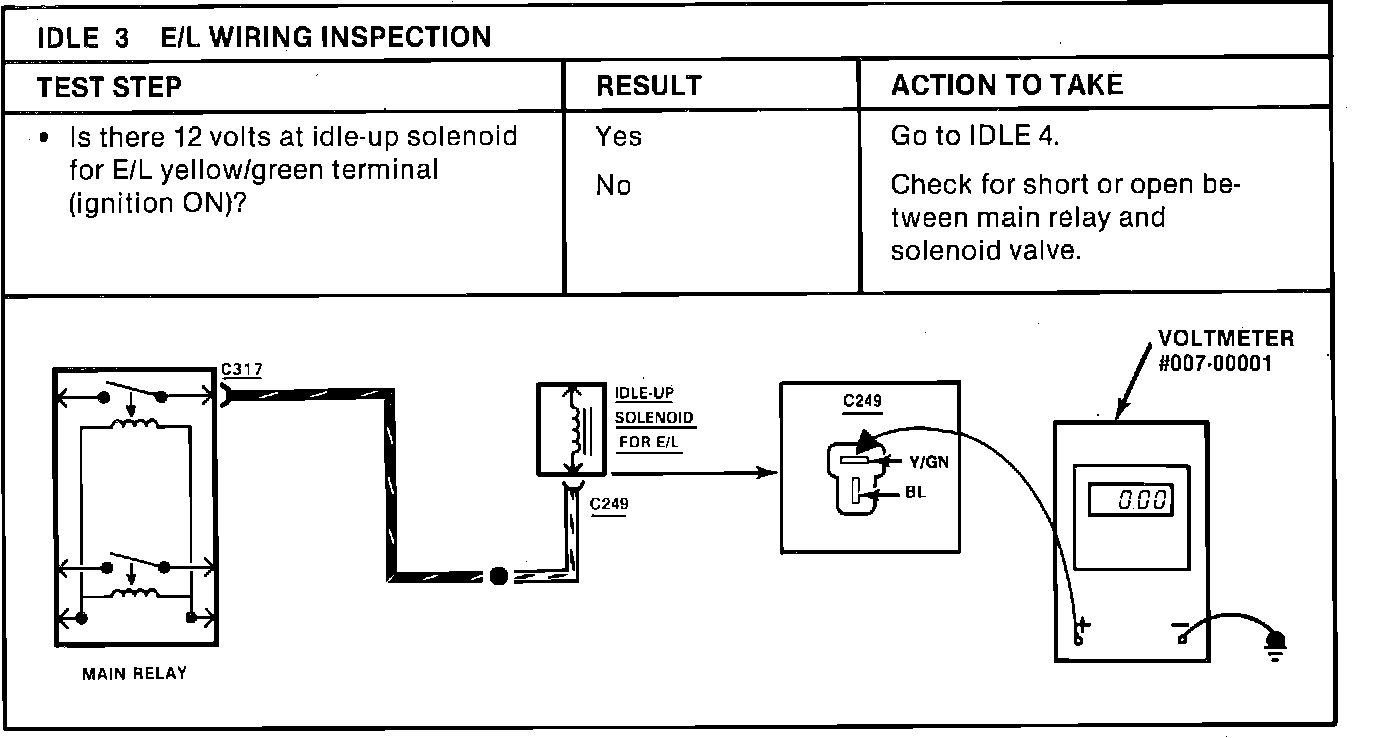

Idle 3 - E/L Wiring Inspection

IDLE 3 - Idle-Up System:
