Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Fuel Delivery and Air Induction >> Testing and Inspection >> Pinpoint Tests >> Fuel Delivery Diagnosis >> FDS 17 - Fuel Pump Relay Function Check

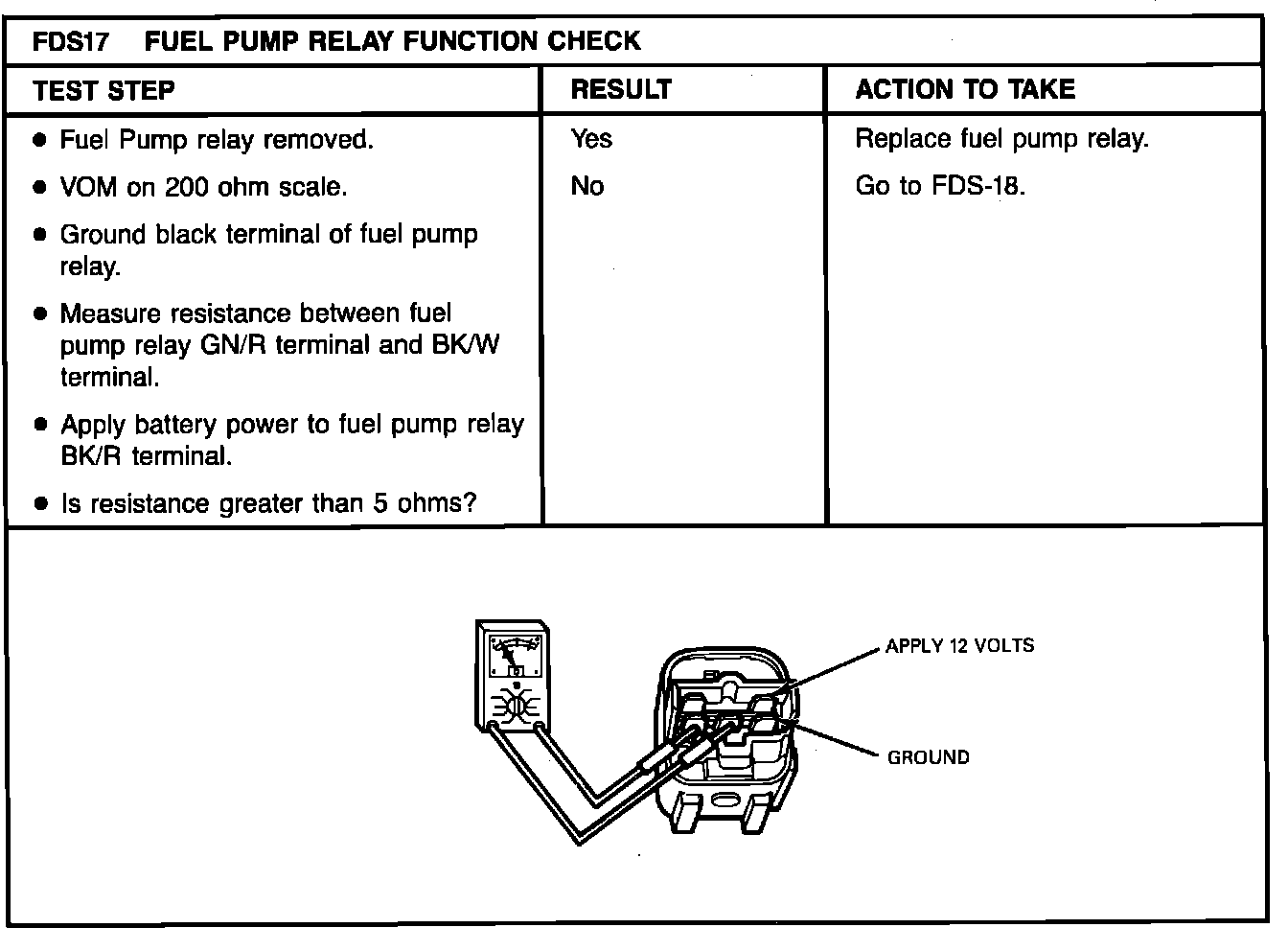

FDS 17 - Fuel Pump Relay Function Check

FDS 17 - Fuel Delivery System:
