Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Reading and Clearing Diagnostic Trouble Codes >> Performance Diagnostic Procedures (Quick Test) >> 2.0 - Equipment Hook-Up >> MIL Equipped Vehicles

MIL Equipped Vehicles

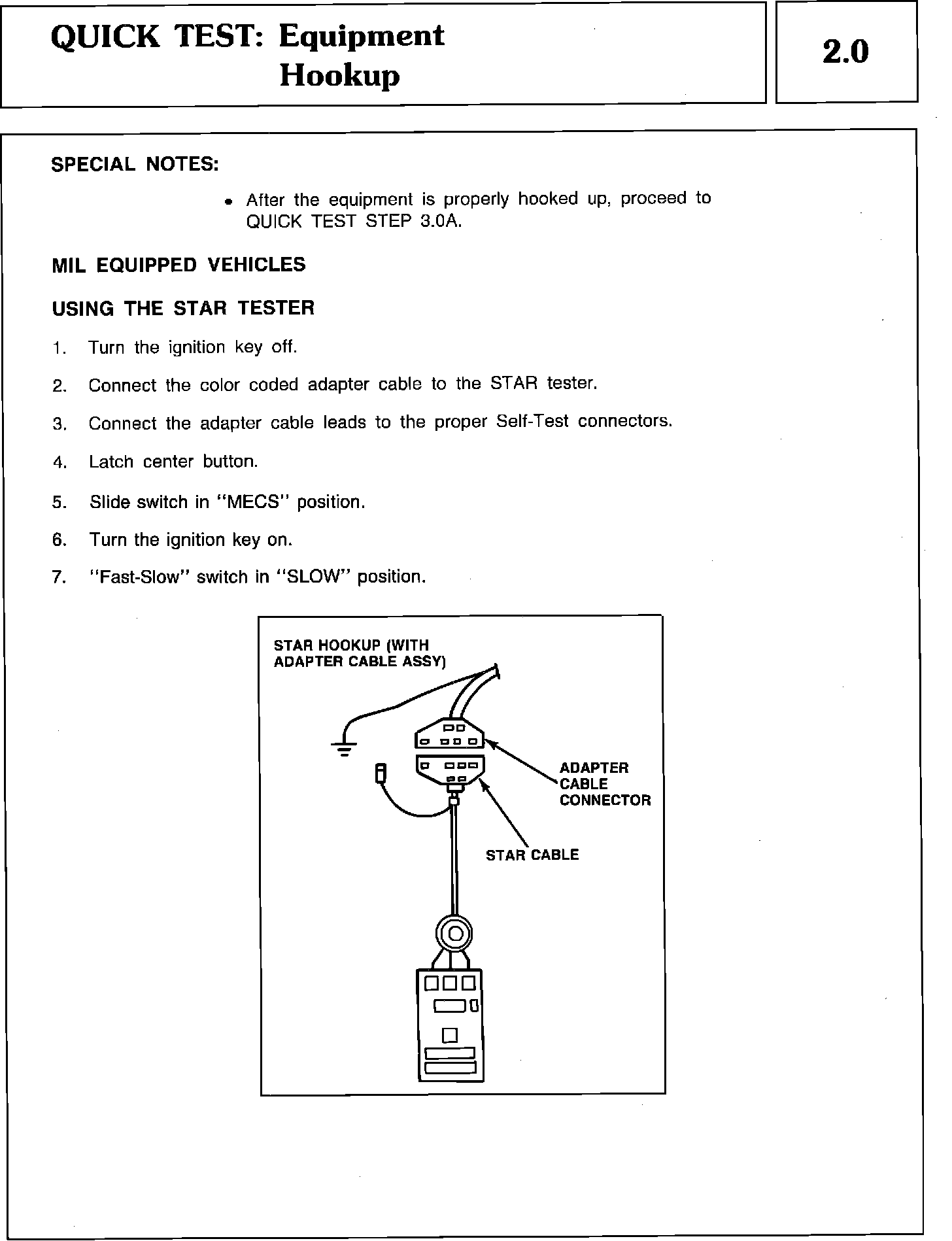

Quick Test 2.0 - Equipment Hookup:
