Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> KW - Canister Purge Regulator >> KW1

KW1

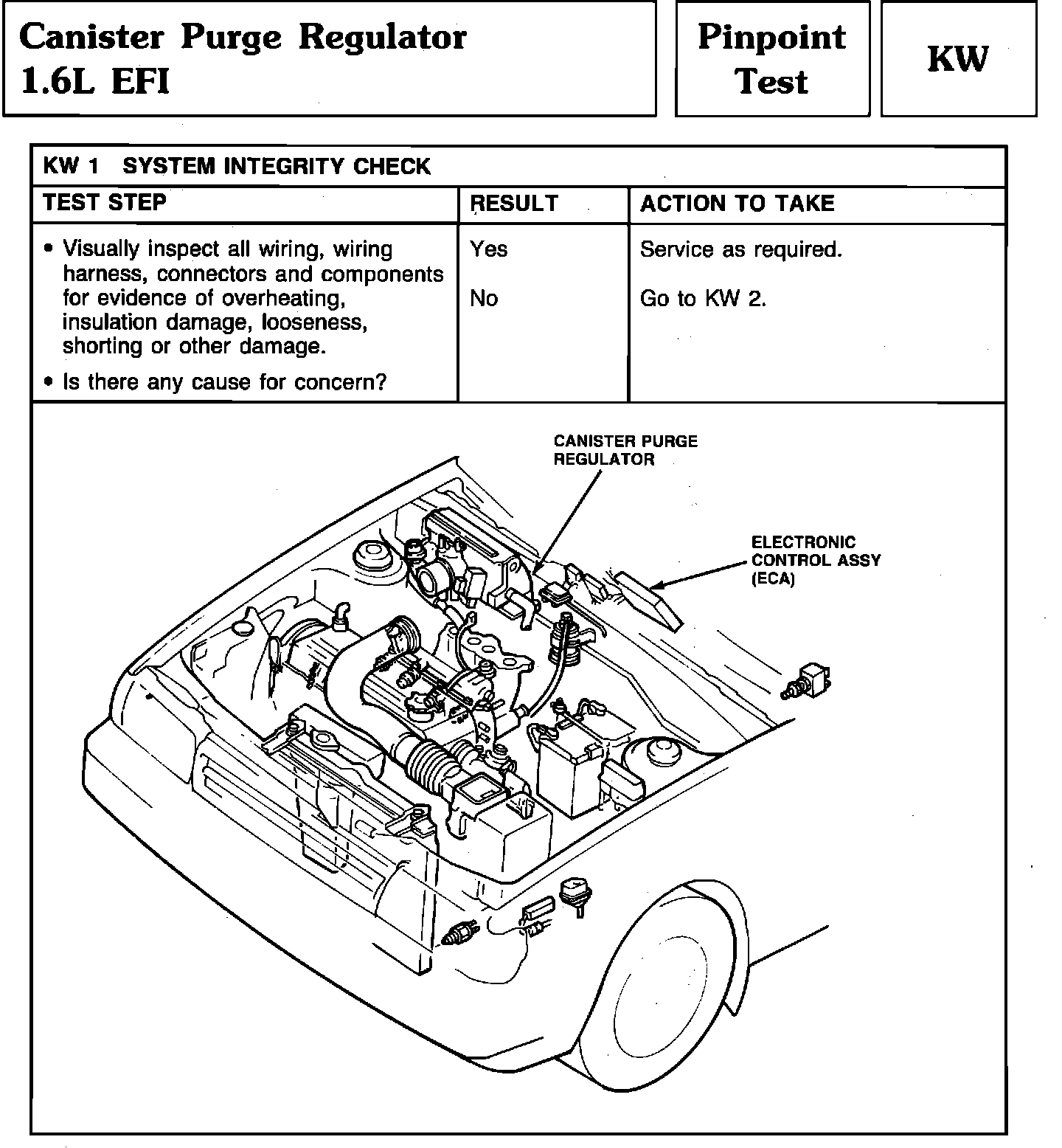

Pinpoint Test KW1 - Canister Purge Regulator:
