Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Powertrain Management >> Computers and Control Systems >> Testing and Inspection >> Pinpoint Tests >> Pinpoint Tests >> FA - Neutral Gear Switch and Clutch Engage Switch >> FA4

FA4

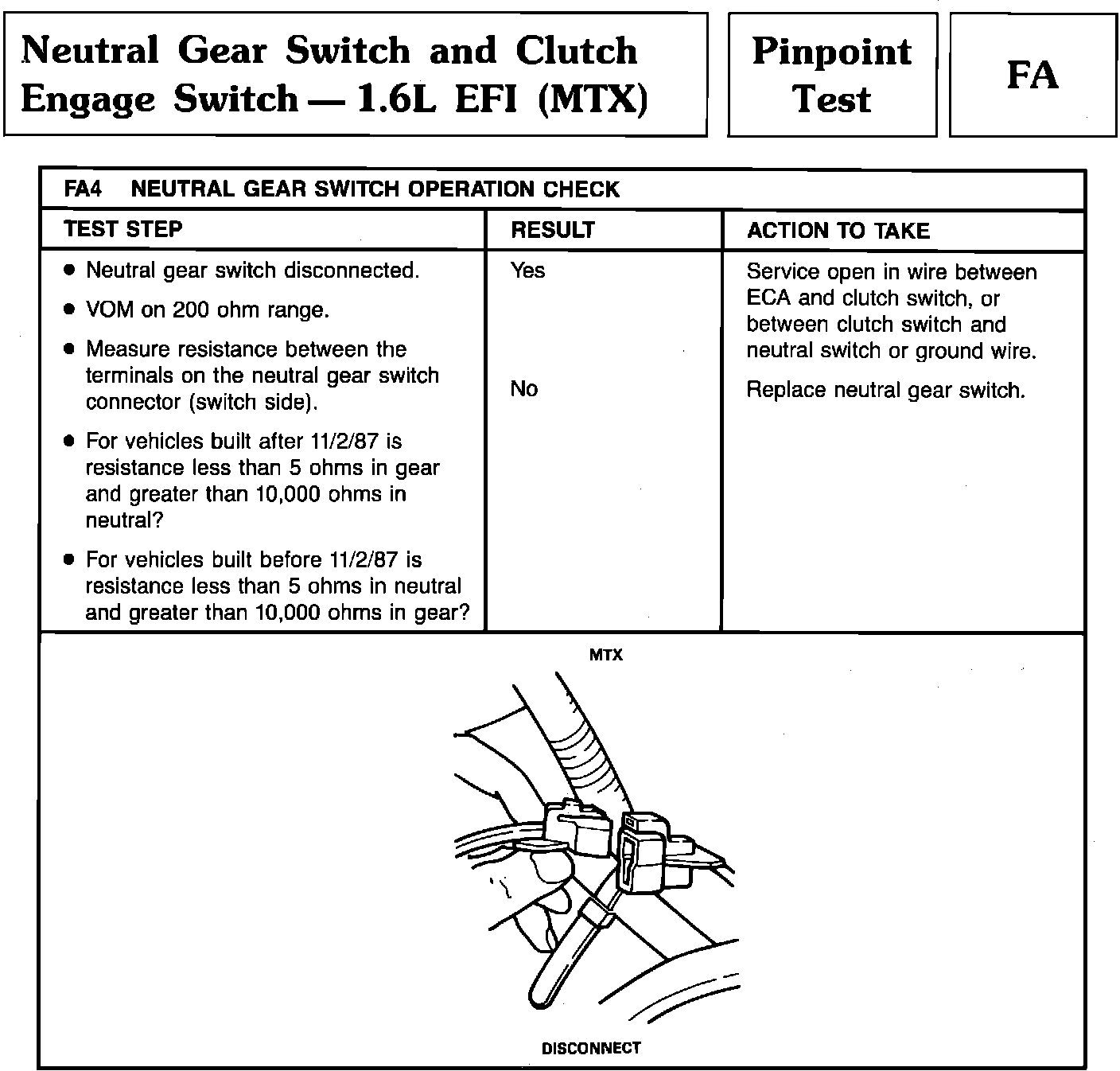

Pinpoint Test FA4 - Neutral Gear Switch & Clutch Engage Switch:
