Vehicle Battery Pinpoint Test B

1989
24-01-111 Fuel System Diagnosis 24-01-111


Vehicle Battery
1.6L EFI
Pinpoint Test B




Stop-Warning

You should enter this Pinpoint Test only when directed here from Pinpoint Tests FC, HA.

To prevent the replacement of good components, be aware that the following non-MECS areas may be at fault:

^ Ignition Switch ^ Ground Straps

^ Alternator ^ Voltage Regulator

^ Battery Cables

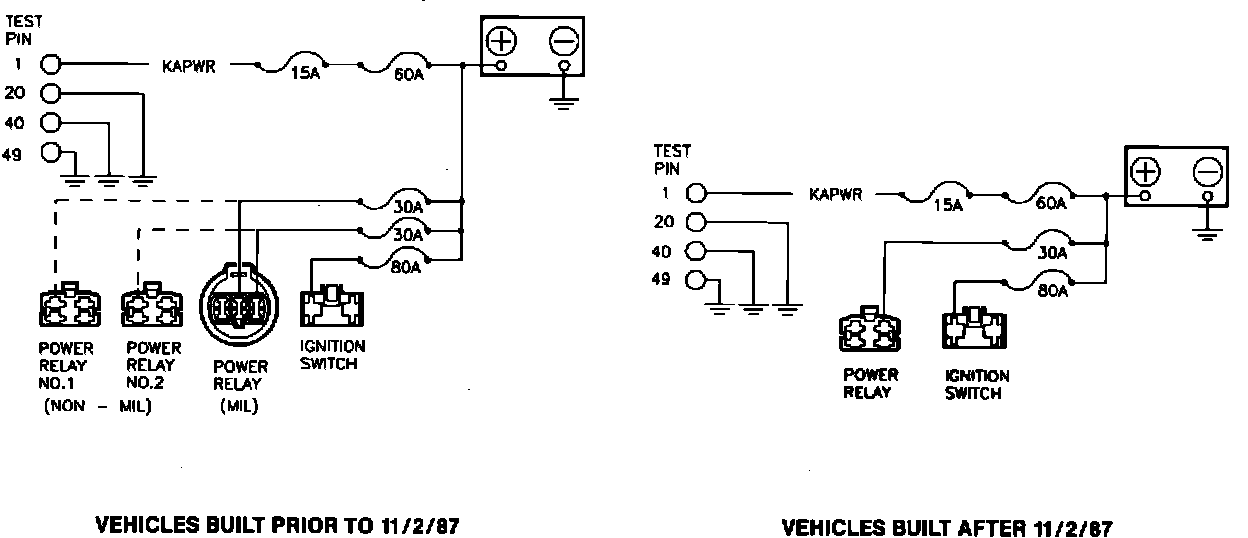

This Pinpoint Test and wiring diagram are intended to diagnose only the following:

^ ECA ^ Battery Voltage

^ Harness Circuits: Ground KAPWR




1989

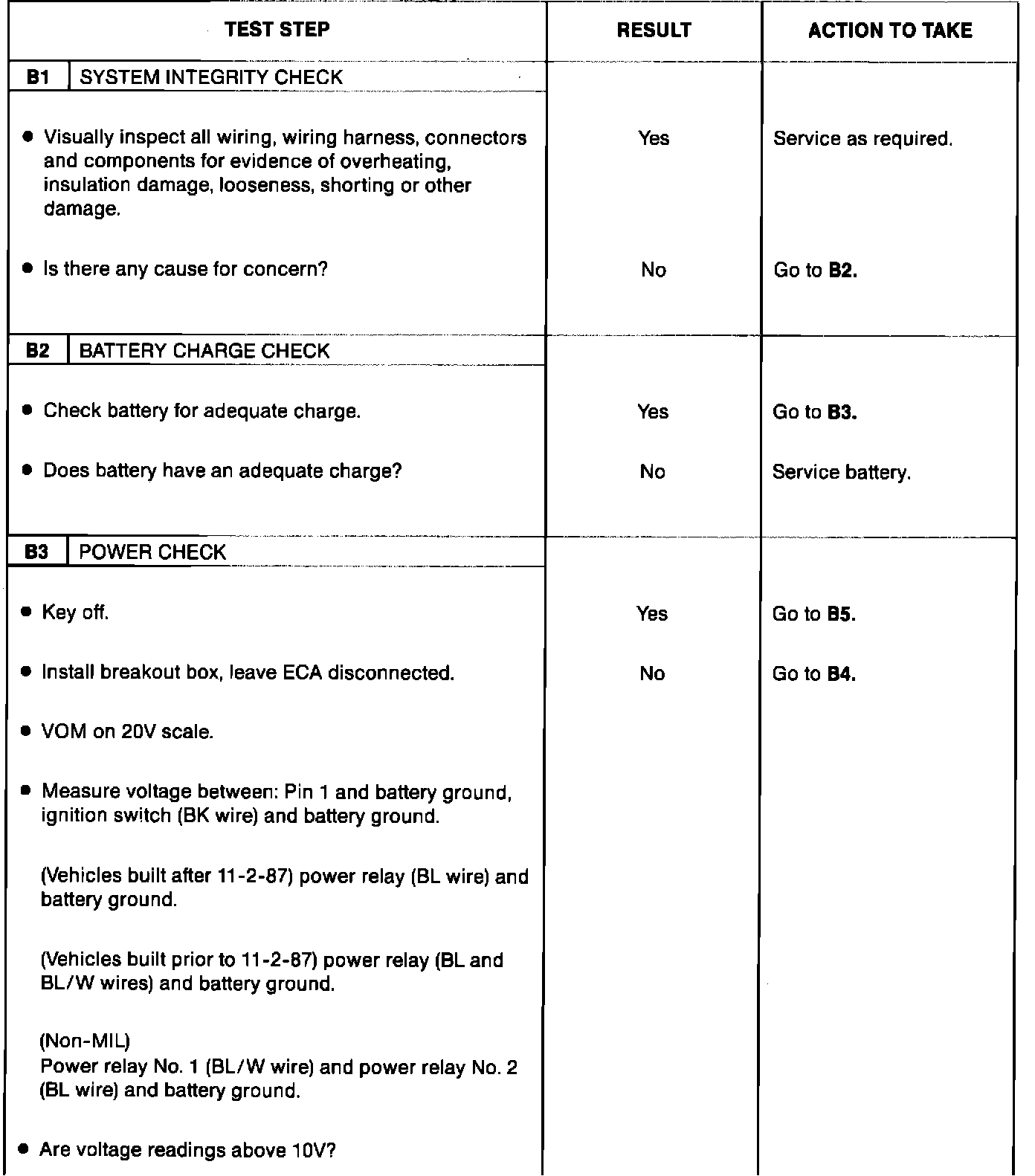

24-01-112 Fuel System Diagnosis 24-01-112


Vehicle Battery
1.6L EFI
Pinpoint Test B




1989

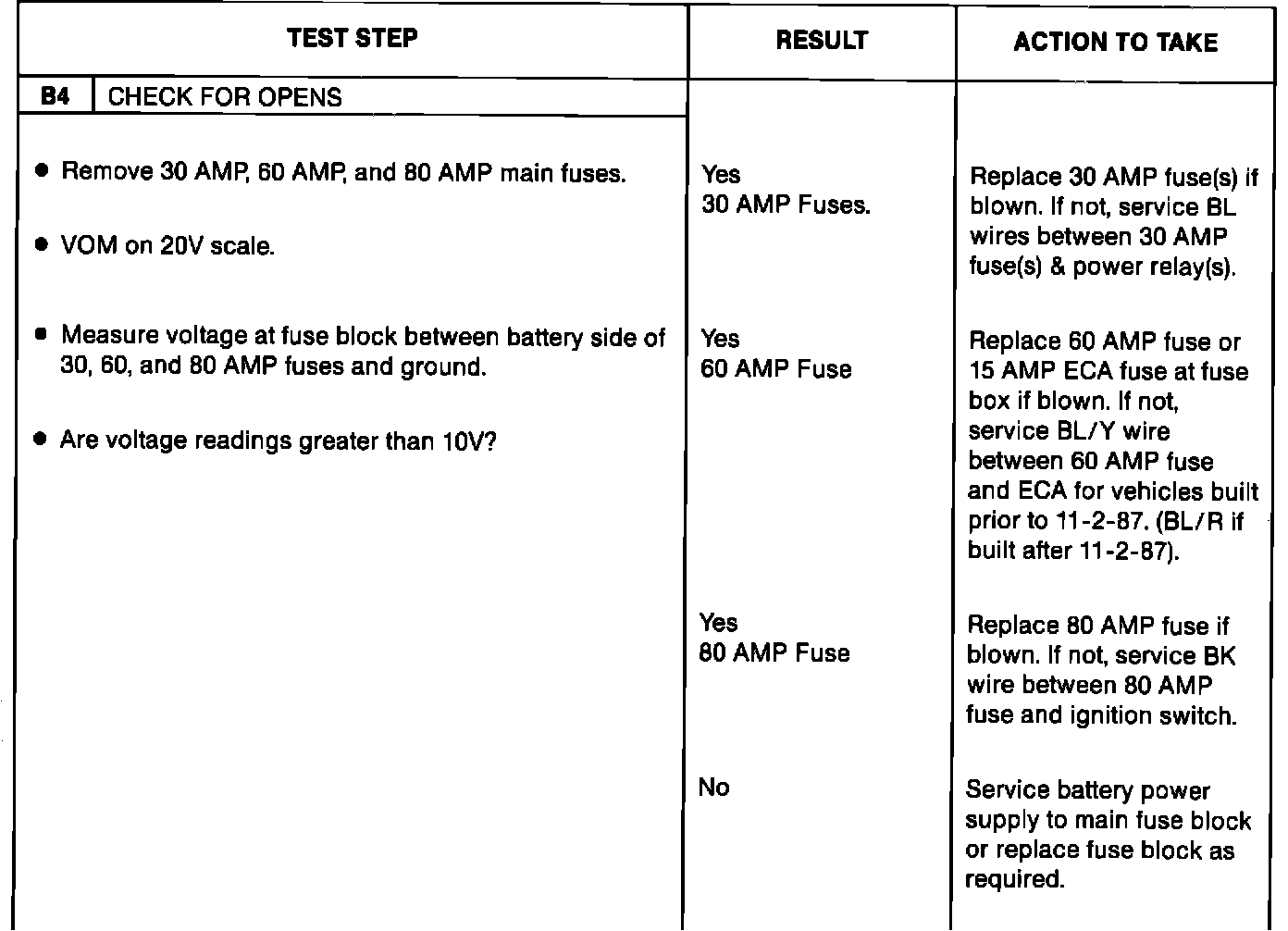

24-01-113 Fuel System Diagnosis 24-01-113


Vehicle Battery
1.6L EFI
Pinpoint Test B




1989

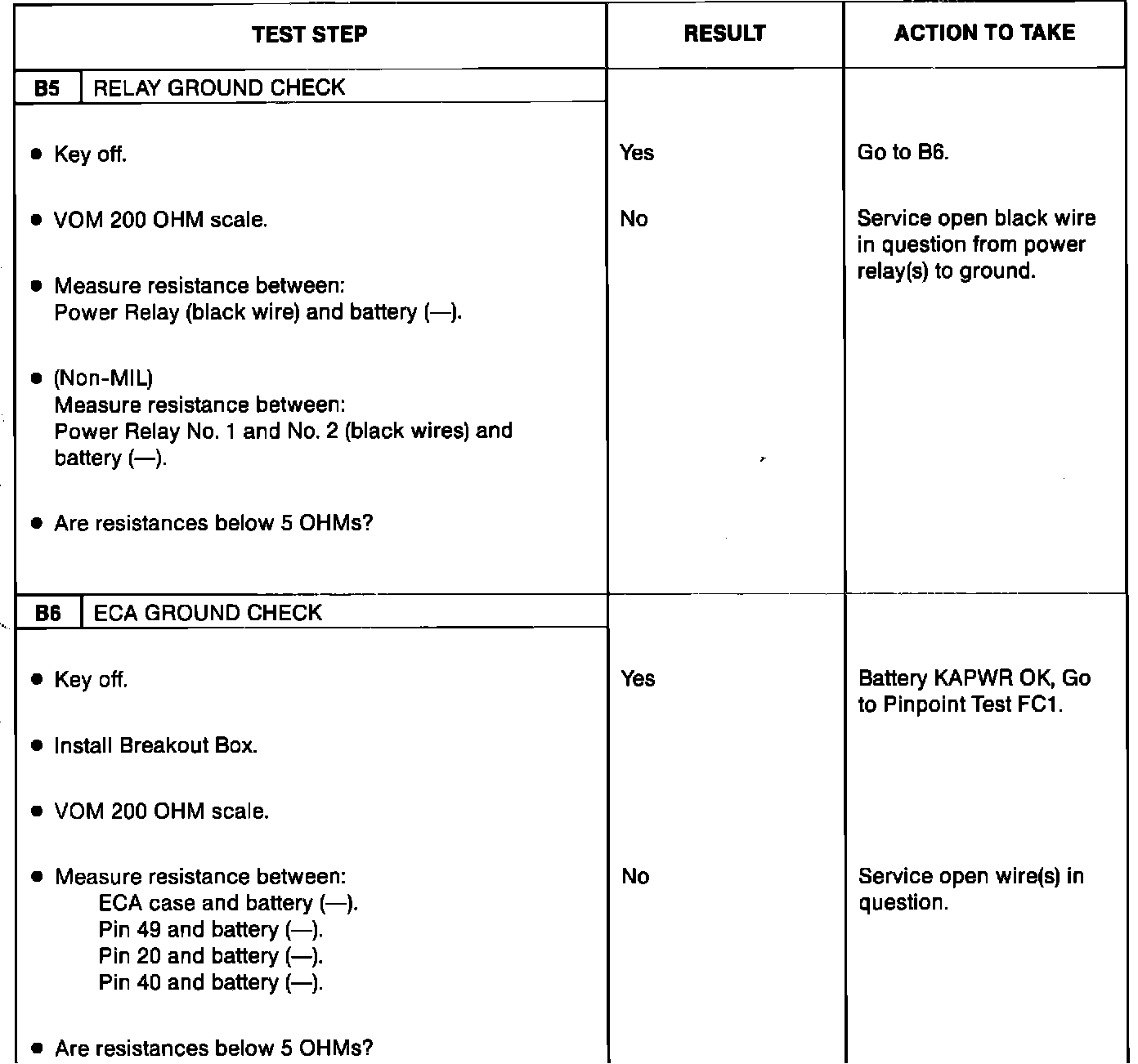

24-01-114 Fuel System Diagnosis 24-01-114


Vehicle Battery
1.6L EFI
Pinpoint Test B
