Vacuum Schematic

1989

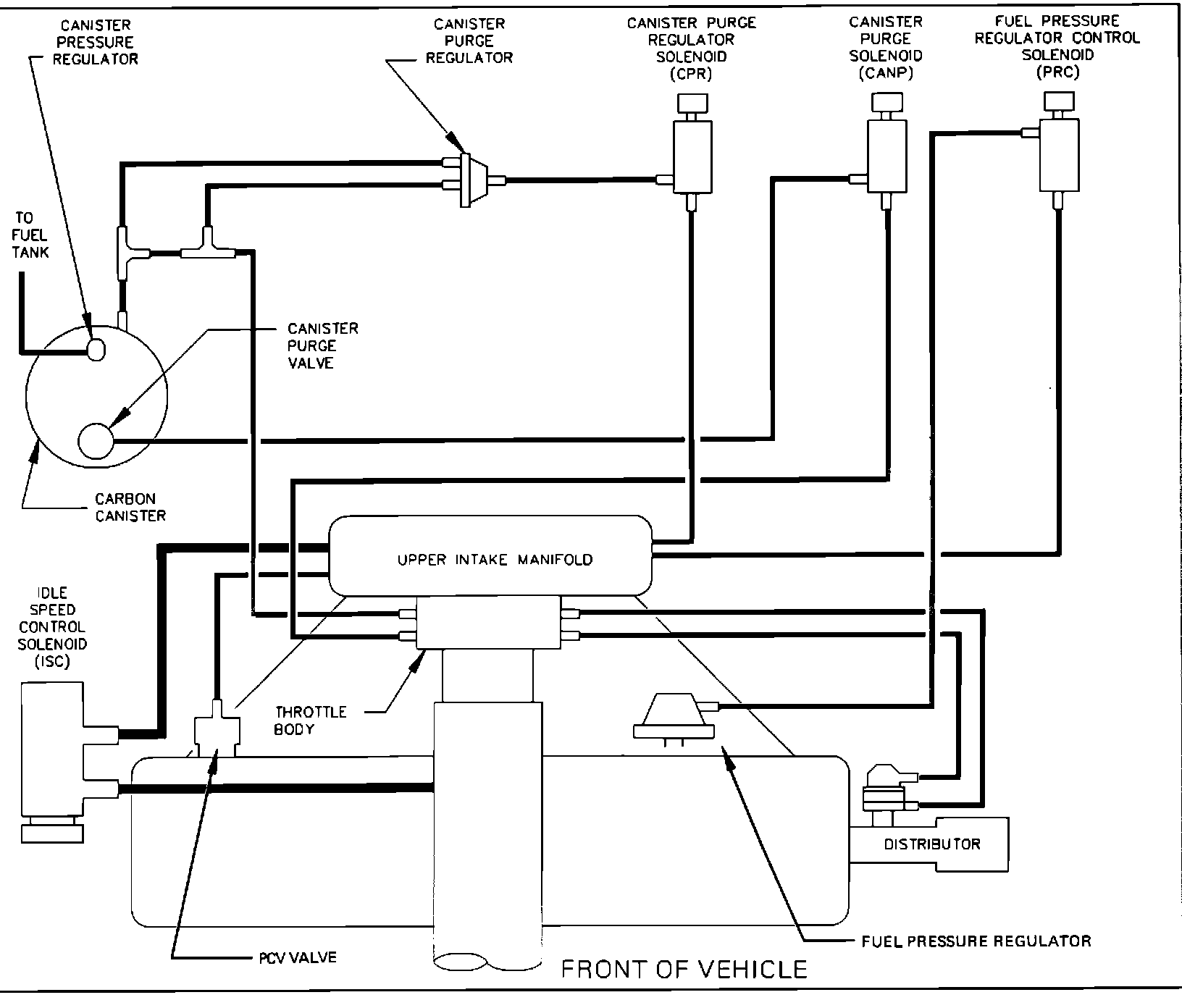

24-01-223 Fuel System Diagnosis 24-01-223


1.6L EFI
Vacuum Schematic Built Prior
To 11-2-87




1989

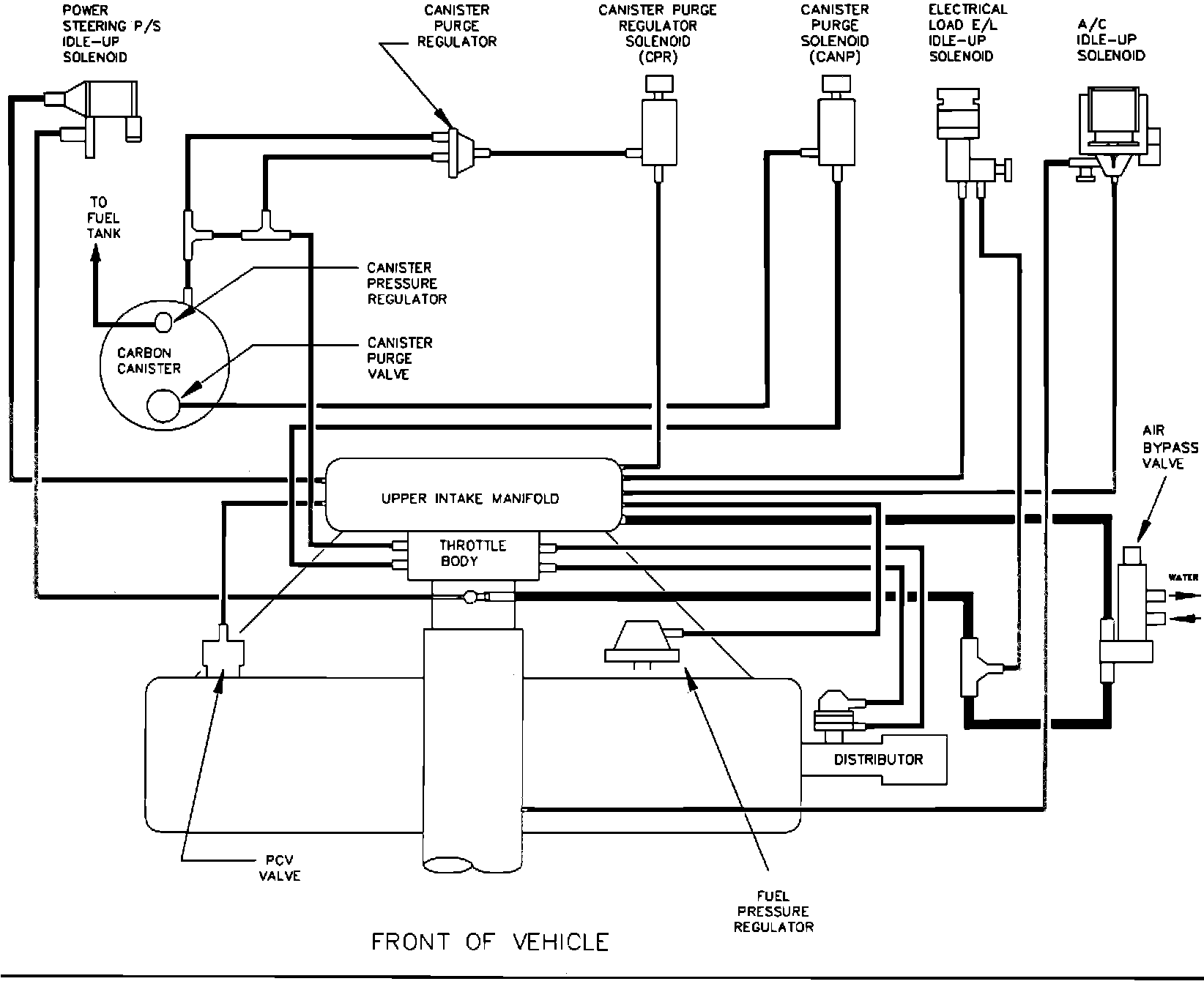

24-01-224 Fuel System Diagnosis 24-01-224


1.6L EFI

Vacuum Schematic Built After
11-2-87
