Quick Test:Equipment Hookup 2.0

1989
24-01-79 Fuel System Diagnosis 24-01-79


QUICK TEST: Equipment 2.0
Hookup


SPECIAL NOTES:
^ After the equipment is properly hooked up, proceed to QUICK TEST STEP 3.0A.


MIL EQUIPPED VEHICLES

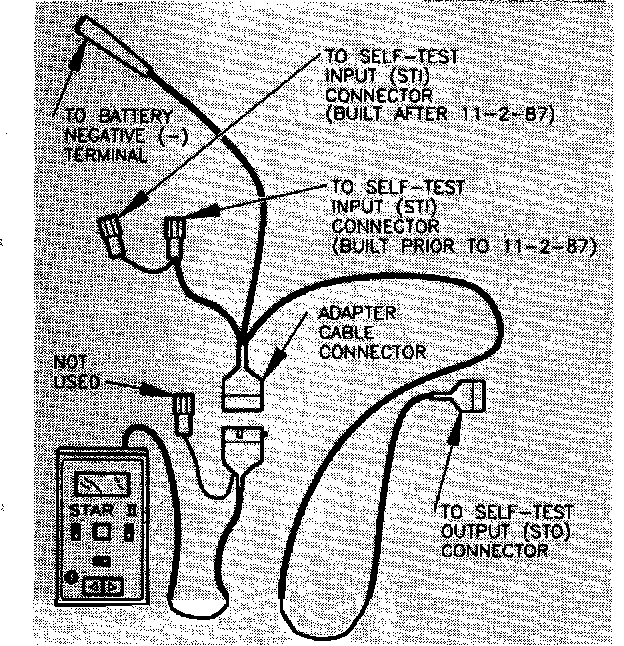

USING THE STAR TESTER

1. Turn the ignition key off.

2. Connect the adapter cable to the STAR tester.

3. Connect the adapter cable leads to the proper Self-Test connectors.

4. Ground the adapter cable.

5. Slide switch in "MECS" position.

6. "Fast slow" switch in "slow" position.

7. Go to QUICK TEST STEP 3.0A.



1989
24-01-80 Fuel System Diagnosis 24-01-80


QUICK TEST: Equipment 2.0 Hookup


MIL EQUIPPED VEHICLES

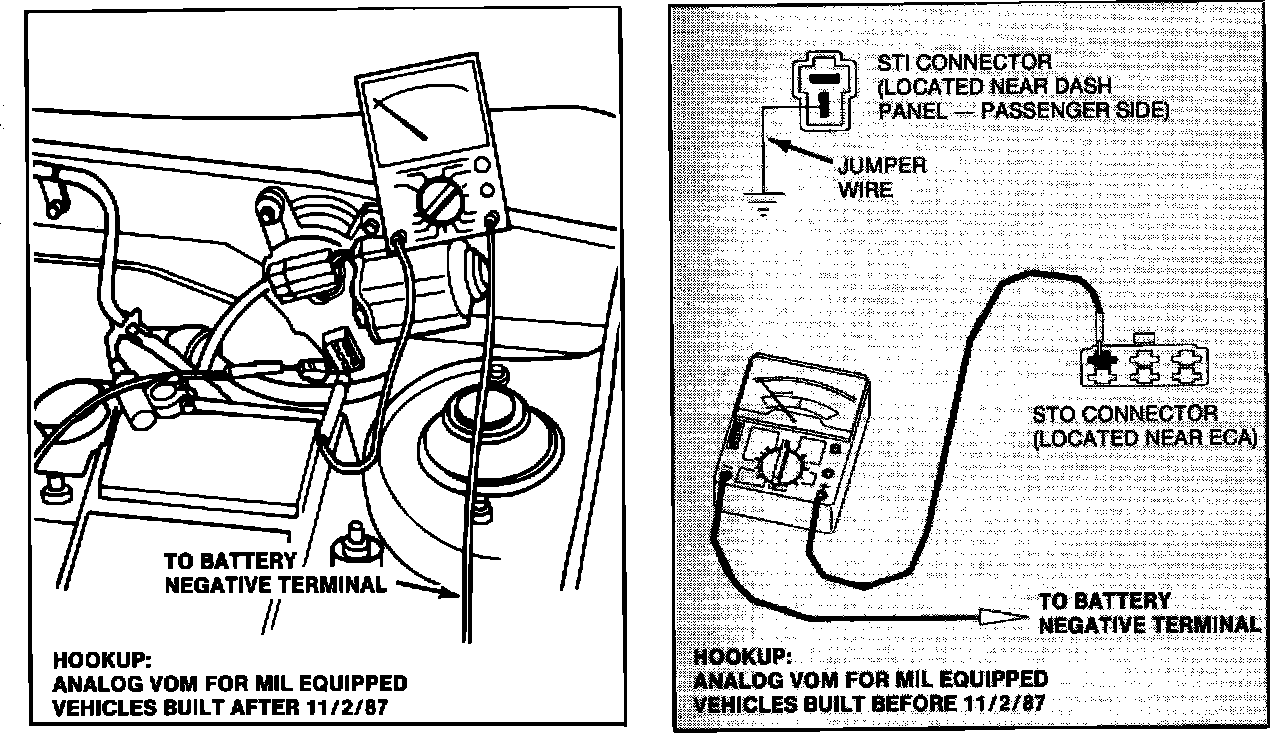

USING AN ANALOG VOLT/OHM METER (VOM)

1. Turn the ignition key off.

2. Connect a jumper wire from the Self-Test Input connector to ground.

3. Set the VOM on a DC voltage range to read from 0 to 20 volts.

4. Connect the VOM between the GN/BK terminal on the 6-pin Self-Test Output connector and the battery negative terminal.

5. Go to QUICK TEST STEP 3.0.



1989
24-01-81 Fuel System Diagnosis 24-01-81


QUICK TEST: Equipment 2.0 Hookup

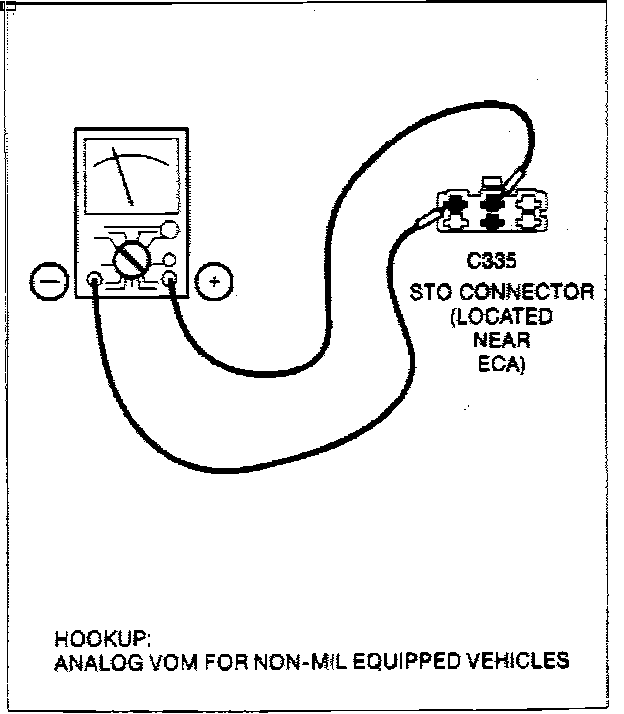

NON-MIL EQUIPPED VEHICLES

USING AN ANALOG VOLT/OHM METER (VOM)

1. Turn the ignition key off.

2. Set the VOM on a DC voltage range to read from 0 to 20 volts.

3. Connect the VOM negative ( - ) lead to the GN/BK and positive ( + ) lead to the Y/GN terminals on the underdash 6-pin STO connector.

4. Go to QUICK TEST STEP 3.0.
