No Start (Ignition Pulse) Pinpoint Test A

1989
24-01 -107 Fuel System Diagnosis 24-01-107


No Start (Ignition Pulse)
1.6L EFI
Pinpoint Test A




Stop-Warning

You should enter this Pinpoint Test only when a service code 01 is received in Quick Test Steps 1.0 through 5.0. This Pinpoint Test will not diagnose ignition system problems.

To prevent the replacement of good components, be aware that the following non-MECS areas may be at fault:

^ Fuel: Quality and Quantity

^ Ignition: General condition, moisture, cracks, damage, etc.

^ Engine: Internal, valves, timing belt, camshaft

^ Starter and battery circuit

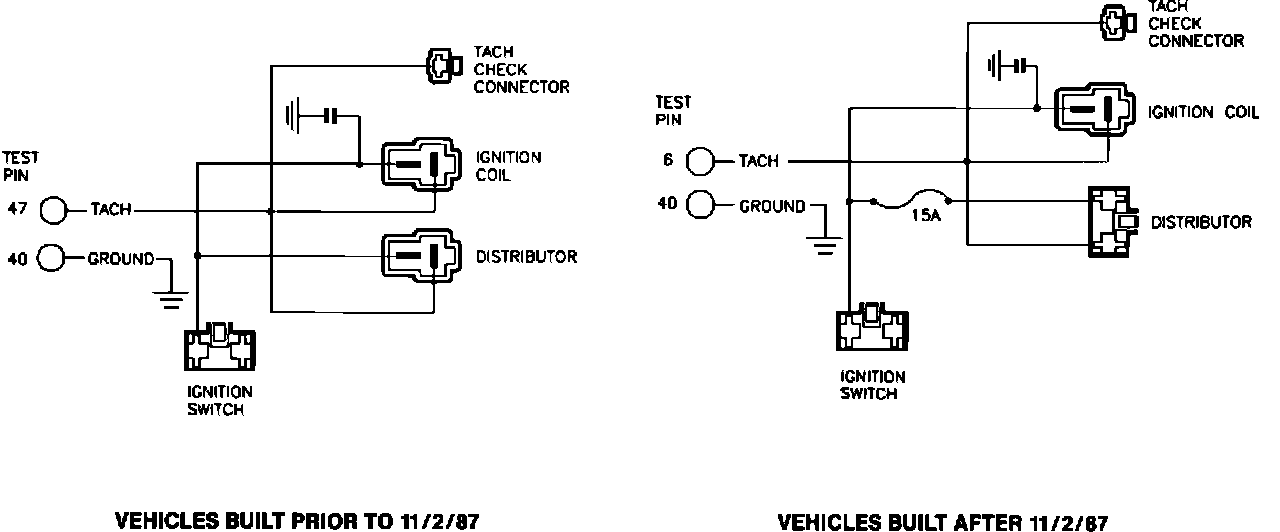

This Pinpoint Test and wiring diagram are intended to diagnose only the following:

^ Spark (as related to EEC)

^ Circuits: (PIP, ignition ground, vehicle power)




1989

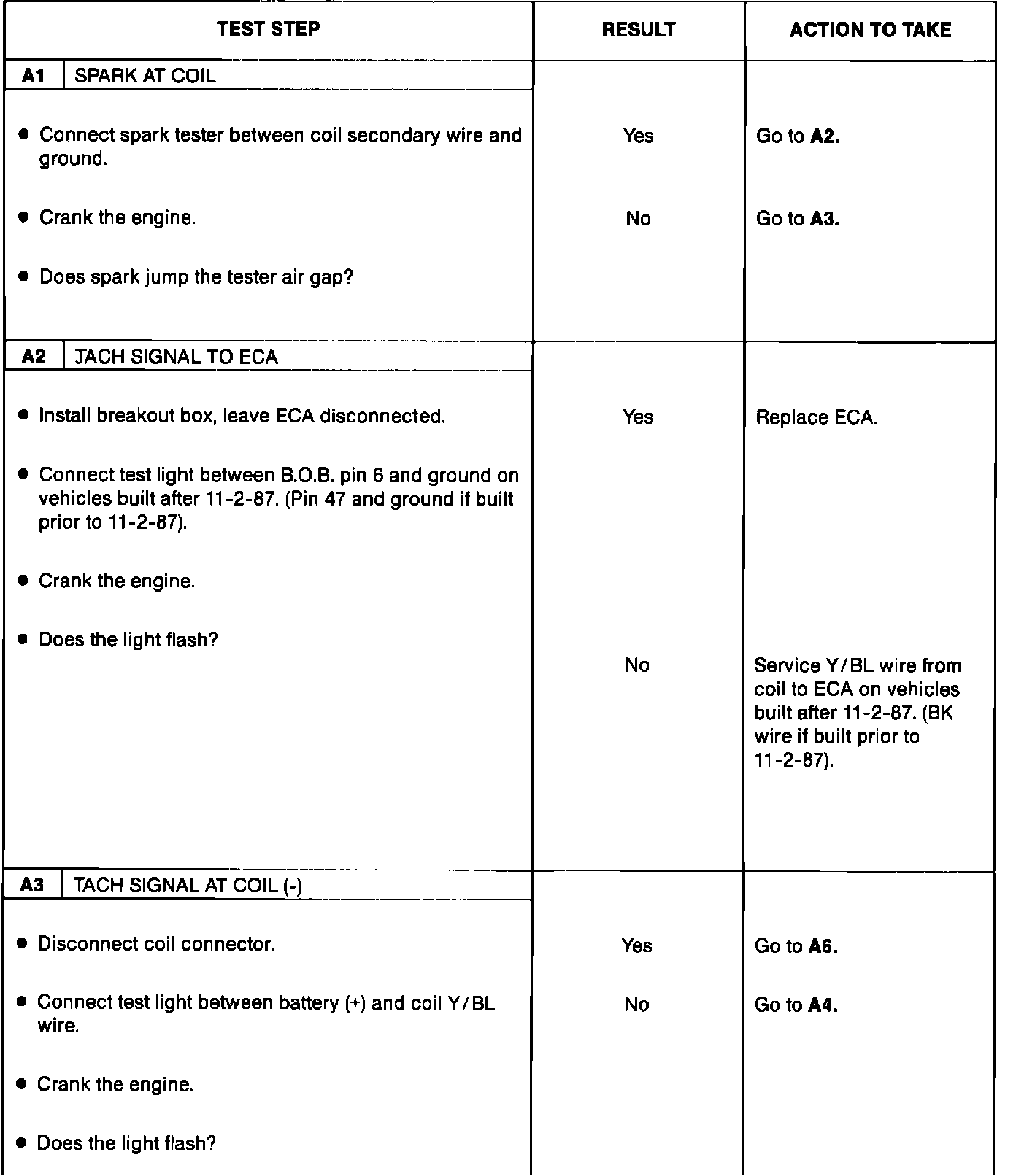

24-01-108 Fuel System Diagnosis 24-01-108


No Start (Ignition Pulse)
1.6L EFI
Pinpoint Test A

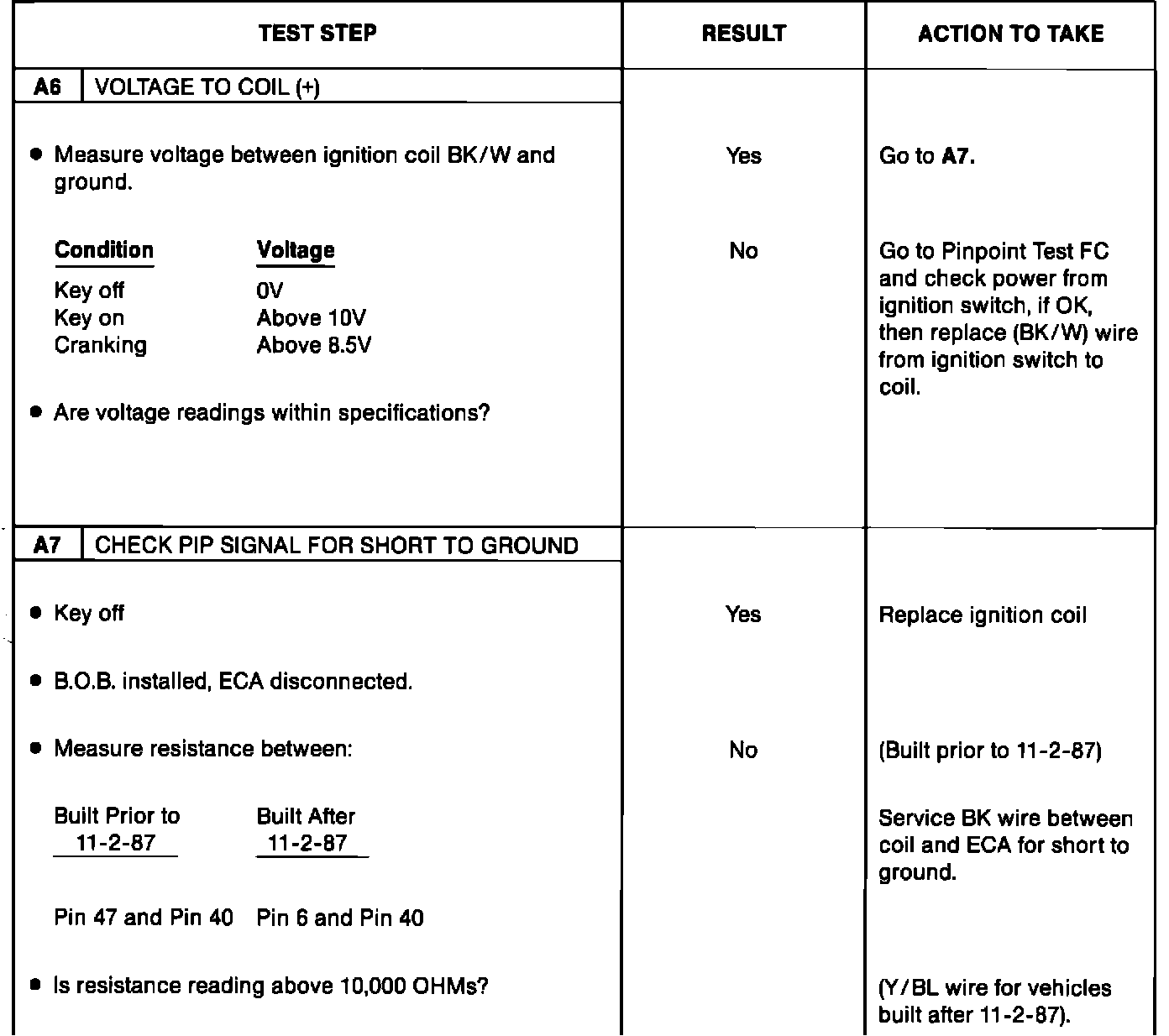

1989
24-01-109 Fuel System Diagnosis 24-01-109


No Start (Ignition Pulse)
1.6L EFI
Pinpoint Test A

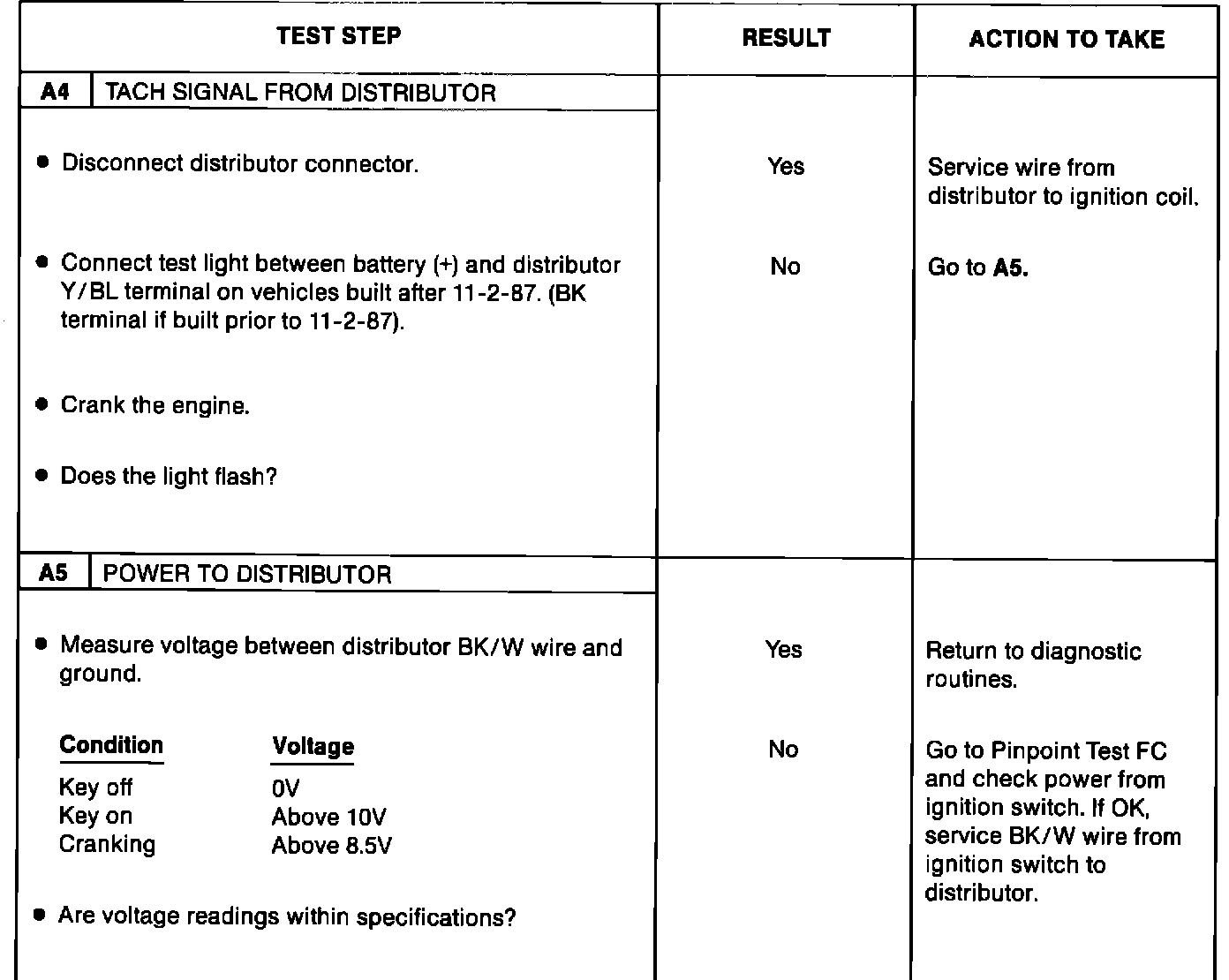

1989
24-01-110 Fuel System Diagnosis 24-01-110


No Start (Ignition Pulse)
1.6L EFI
Pinpoint Test A
