No Codes and STO Always LO Pinpoint Test B

1989
24-01-207 Fuel System Diagnosis 24-01-207


No Codes And STO Always Lo
Pinpoint Test B




Stop-Warning

You should enter this Pinpoint Test only when directed here from Quick Test Step 3.0B.

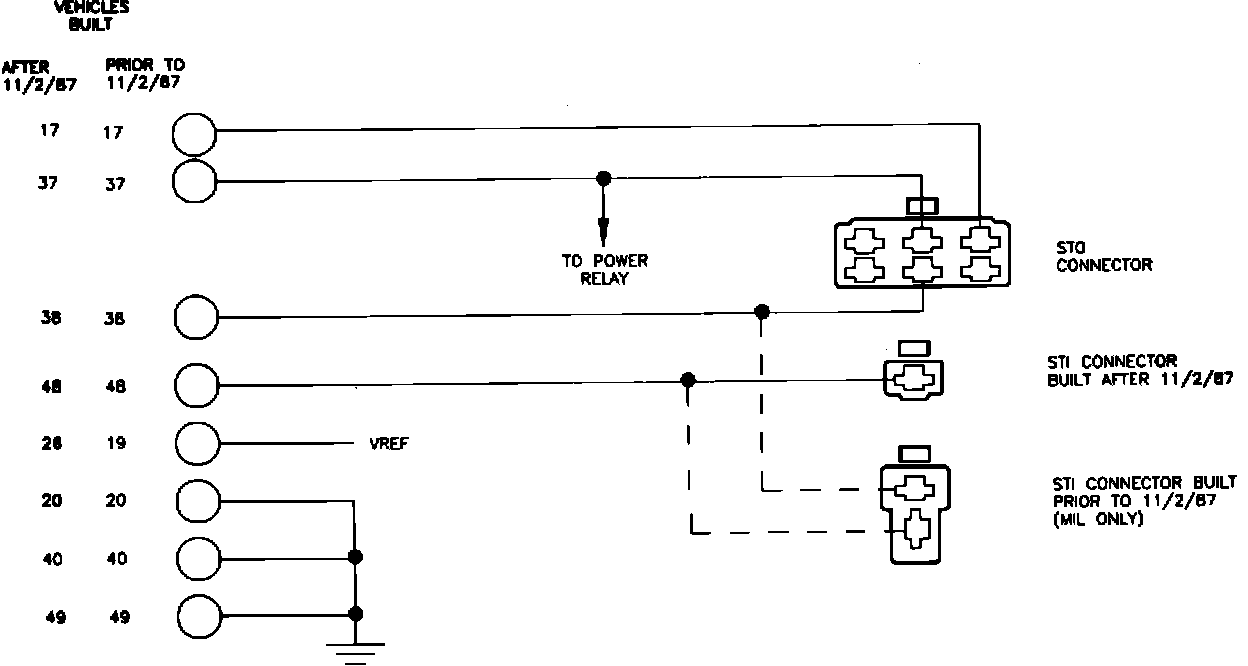

This Pinpoint Test and Wiring Diagram are intended to diagnose only the following:

^ Harness Circuits: STO and STI




1989
24-01-208 Fuel System Diagnosis 24-01-208


No Codes And STO Always Lo

Pinpoint Test B




1989
24-01-209 Fuel System Diagnosis 24-01-209


No Codes And STO Always Lo

Pinpoint Test B




1989

24-01-210 Fuel System Diagnosis 24-01-210


No Codes And STO Always Lo

Pinpoint Test B
