Appendix:Test Equipment

1989
24-01-102 Fuel System Diagnosis 24-01-102


APPENDIX: Test Equipment




EQUIPMENT REQUIRED:

^ Rotunda Self-Test Automatic Readout (STAR II), No. 007-00041 or equivalent.

^ Analog Volt-Ohmmeter, 0 to 20V DC, (alternate to STAR).

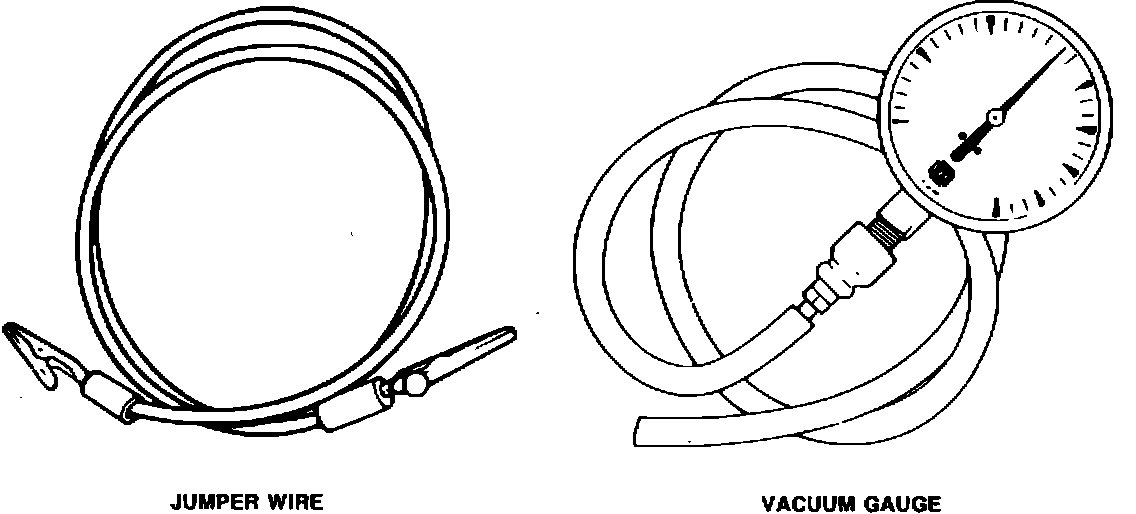

^ Jumper wire.

^ Vacuum gauge, Rotunda 059-00008 or equivalent. Range 0-30 in. Hg. Resolution 1 in. Hg.



1989
24-01-103 Fuel System Diagnosis 24-01-103


APPENDIX: Test Equipment (Continued)

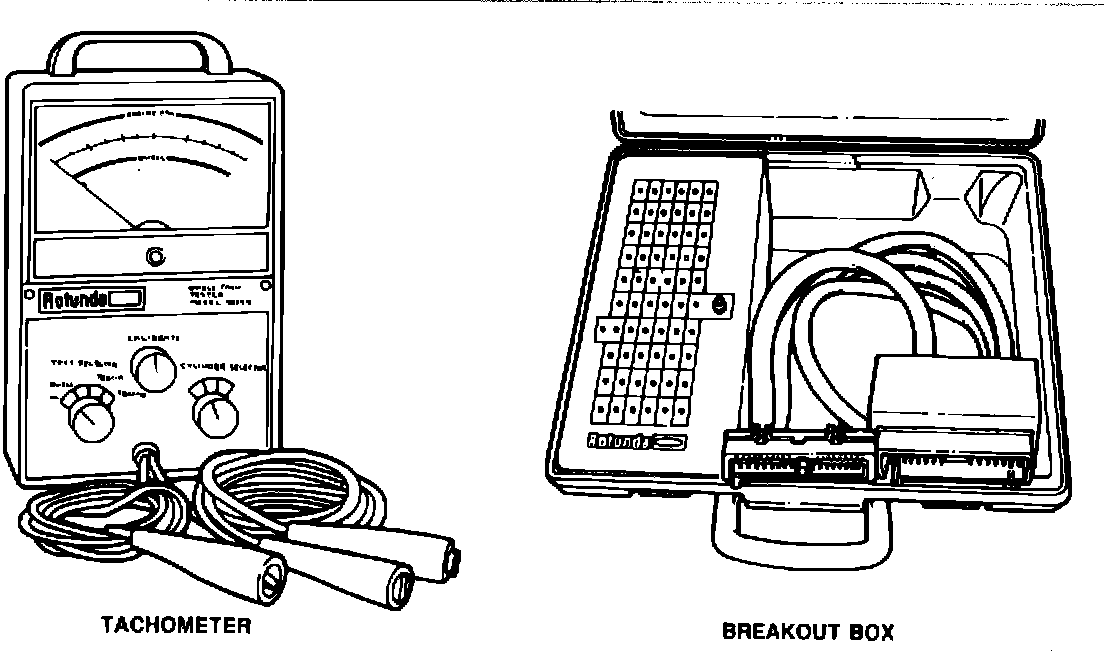

^ Tachometer, Rotunda No. 059-00010 or equivalent. Range 0-6,000 rpm. Accuracy +/- 40 rpm. Resolution 20 rpm.

^ Breakout Box, Rotunda 014-00322, Special Service Tool T83L-50-EEC-IV or equivalent.

^ Adaptor harness No. 007-00026 for vehicles built prior to 11-2-87.

^ Adaptor harness No. 007-00038 for vehicles built after 11-2-87.

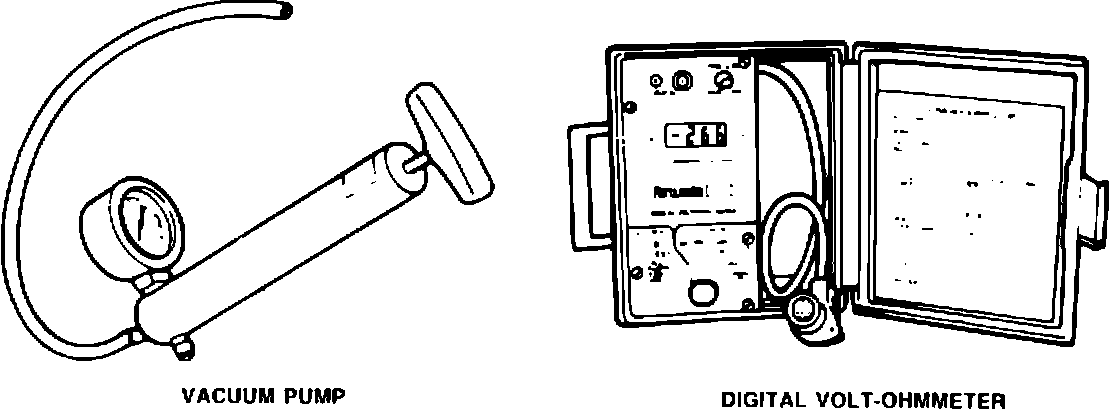

^ Vacuum pump, Rotunda No. 021-00014 or equivalent. Range 0-30 in. Hg.

^ Digital volt-ohmmeter, Rotunda No. 014-00407 or equivalent. Input impedance 10 megaohm minimum.



1989
24-01-104 Fuel System Diagnosis 24-01-104


APPENDIX: Test Equipment (Continued)

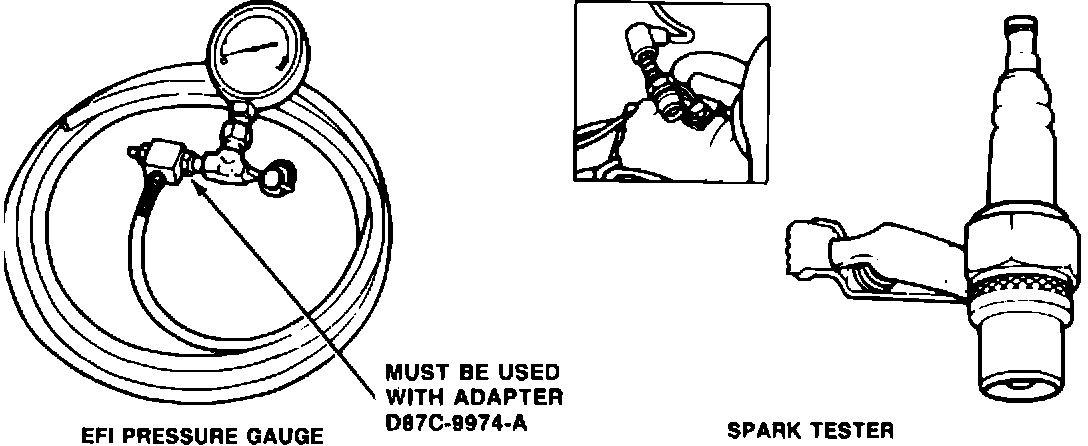

^ Electronic Fuel Injection Pressure Gauge EFI/CFI only, 014-00447 or equivalent. (Use instructions. For specific applications, refor to Shop Manual, Group 24.)

^ Spark tester (optional modified spark plug with side electrode removed). Tool D81P-6666-A or equivalent.

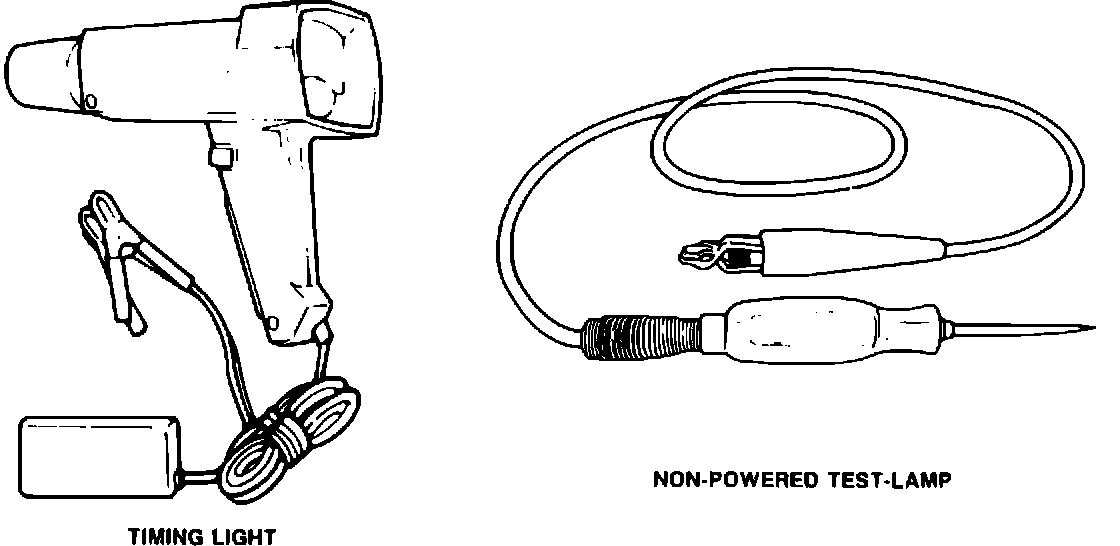

^ Timing light, Rotunda model 059-00006 or equivalent.

^ Non-powered test lamp.
