Home >> Mercury >> 1989 >> Tracer L4-1589cc 1.6L SOHC >> Repair and Diagnosis >> Cruise Control >> Testing and Inspection >> SP4: Set Switch Check (Will Not Set)

SP4: Set Switch Check (Will Not Set)

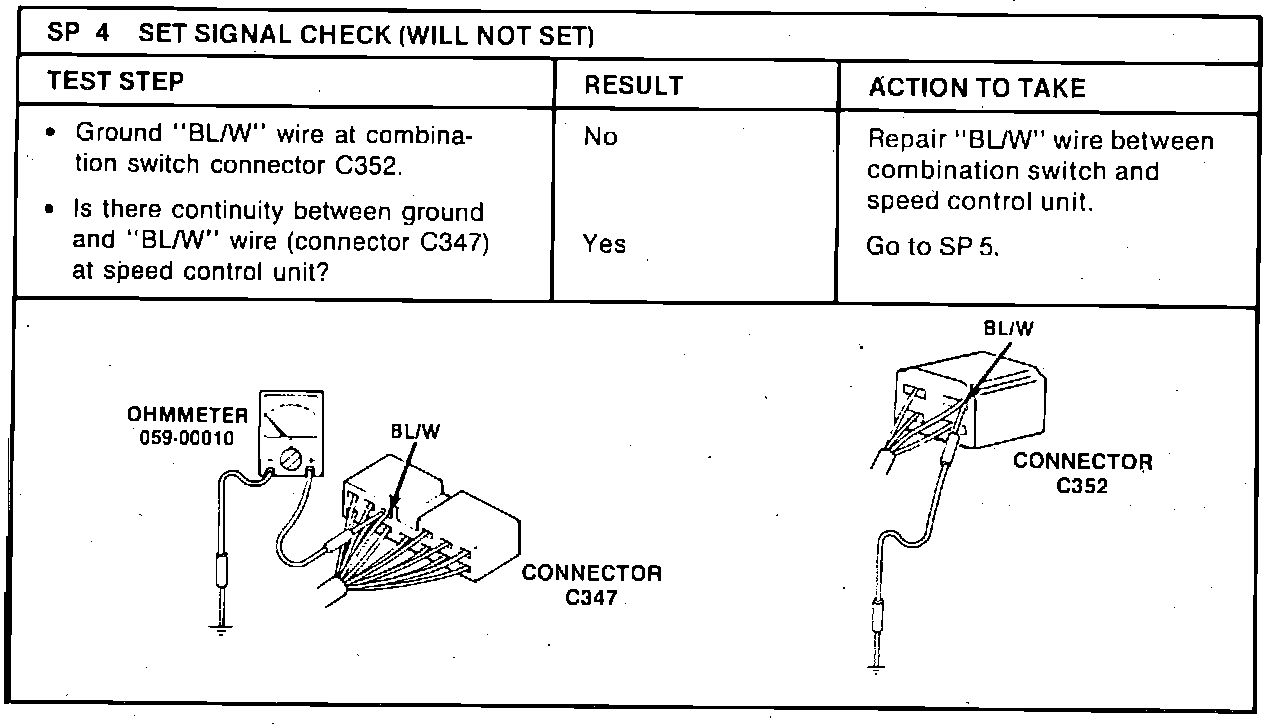

Fig. 89 Speed Control Diagnosis (Part 4 Of 27). Set Signal Check (Will Not Set):
