Home >> Mercury >> 1989 >> Topaz FWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Restraints and Safety Systems >> Seat Belt Systems >> Testing and Inspection >> Pinpoint Tests >> A: Track "A" Limit Switch Diagnosis

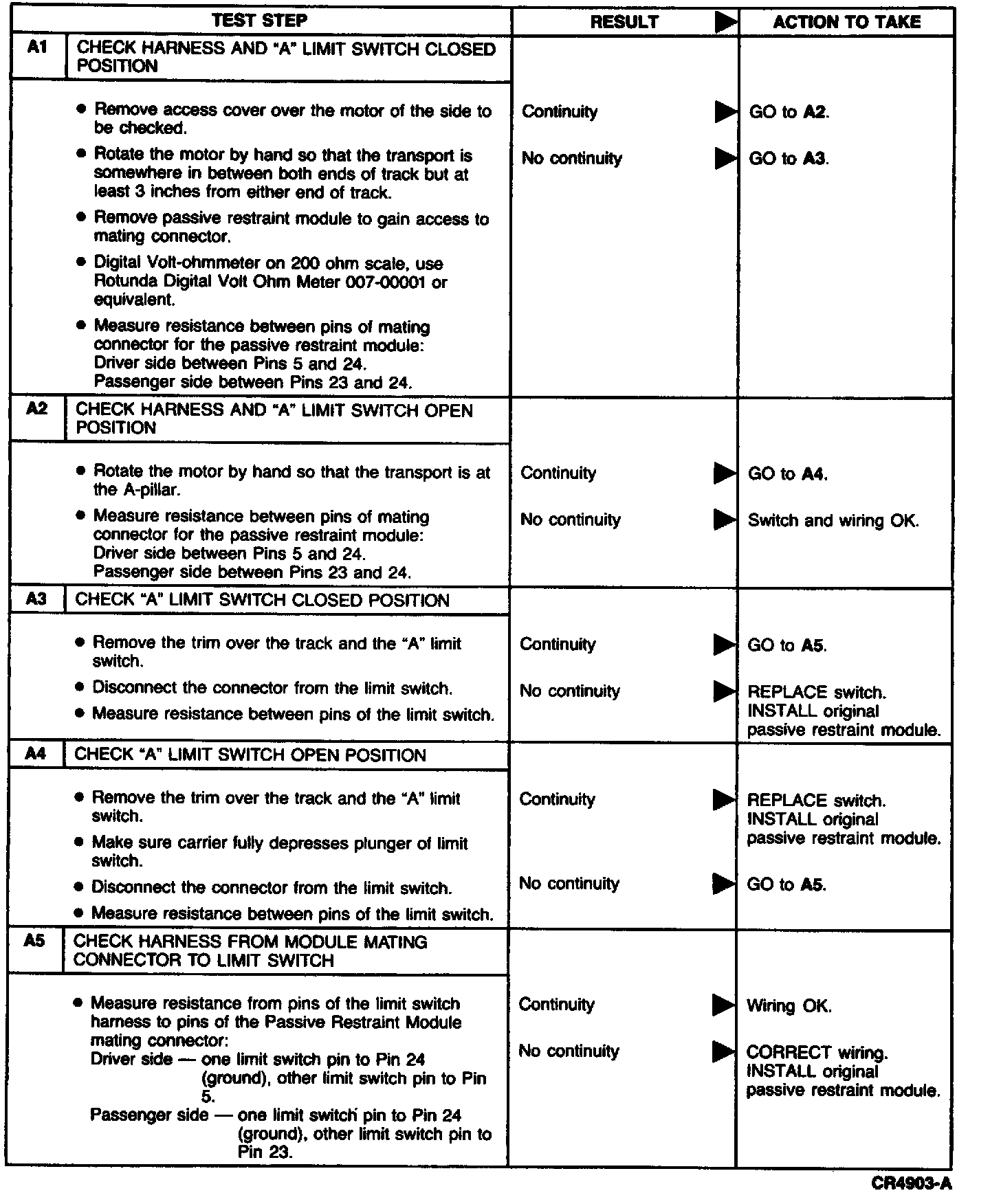

A: Track "A" Limit Switch Diagnosis

A1 -- A5:
