Home >> Mercury >> 1989 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Wiper and Washer Systems >> Testing and Inspection >> Wipers Won't Park or Washers Inoperative

Wipers Won't Park or Washers Inoperative

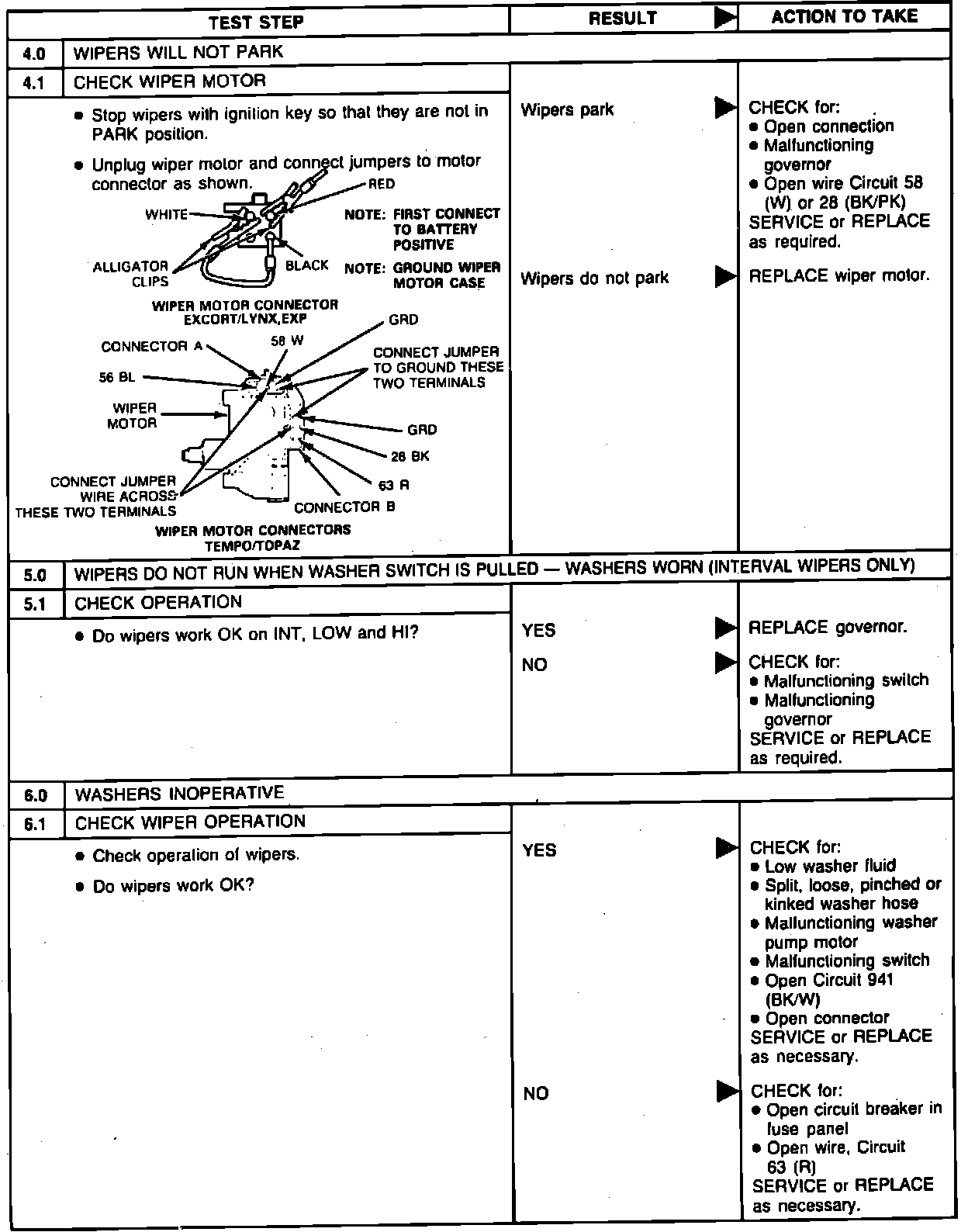

Fig. 4 Wiper System Diagnosis (Part 3 Of 3):
