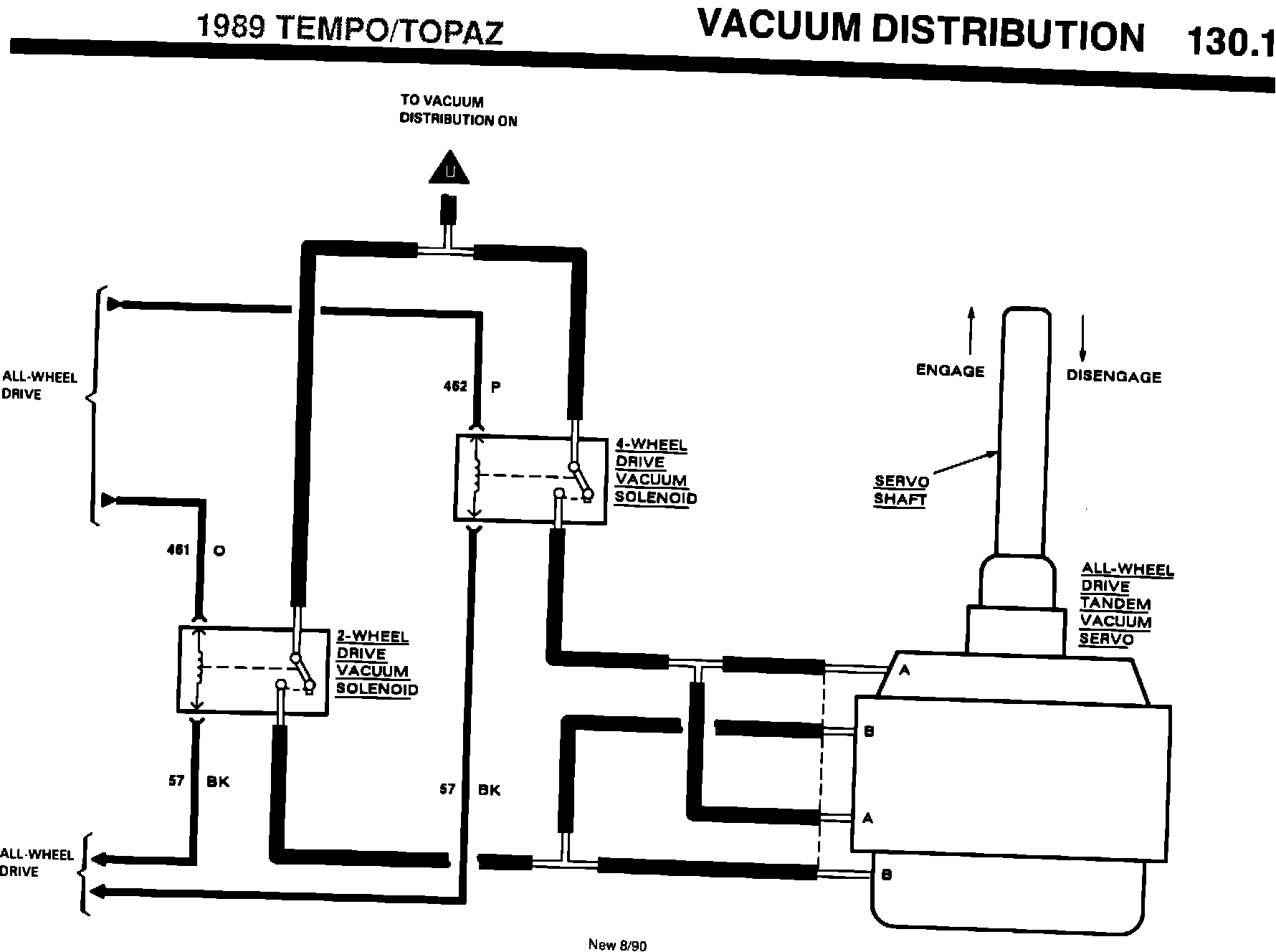

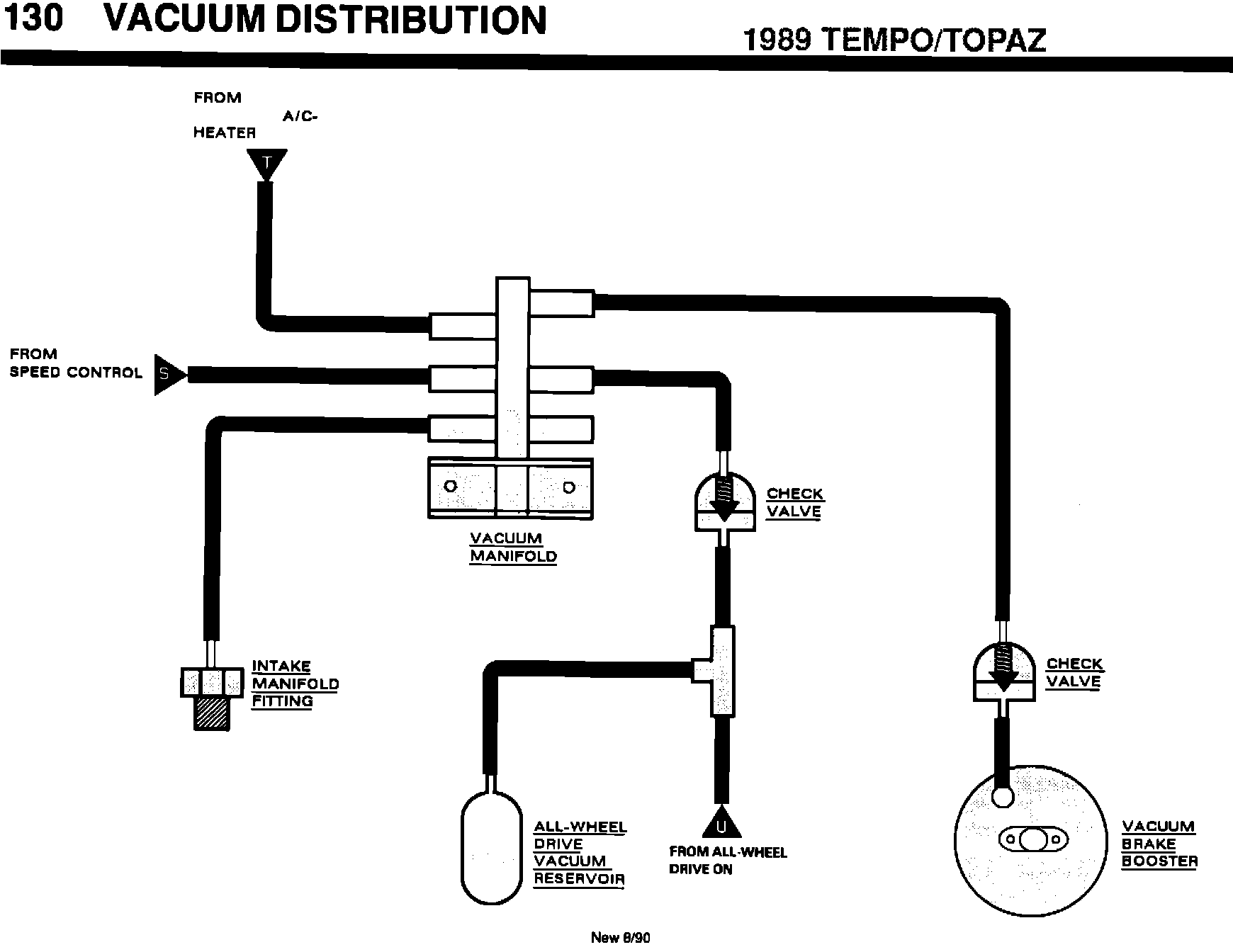

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1989 - PAGES 130 AND 130.1 - VACUUM DISTRIBUTION SCHEMATICS ADDED

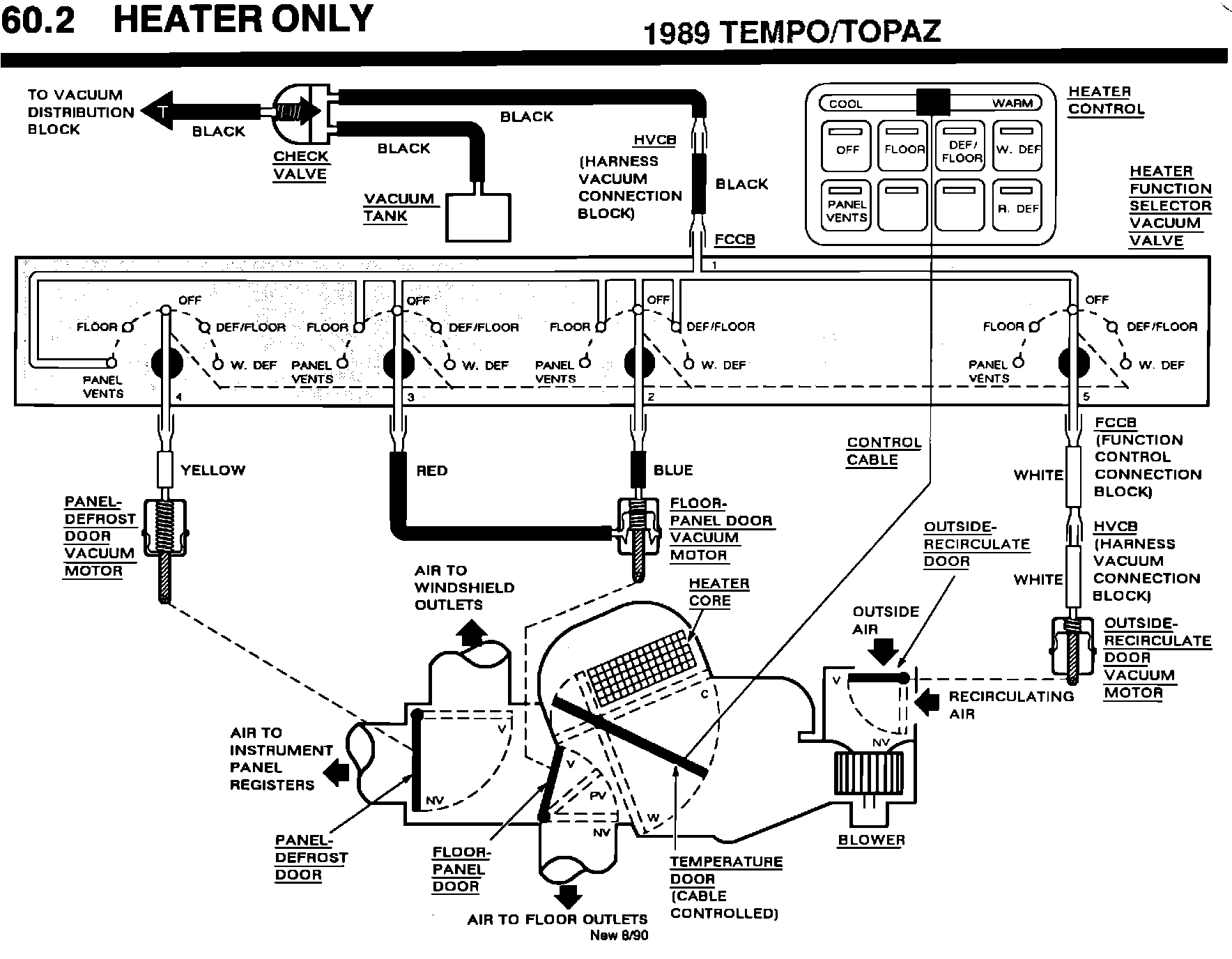

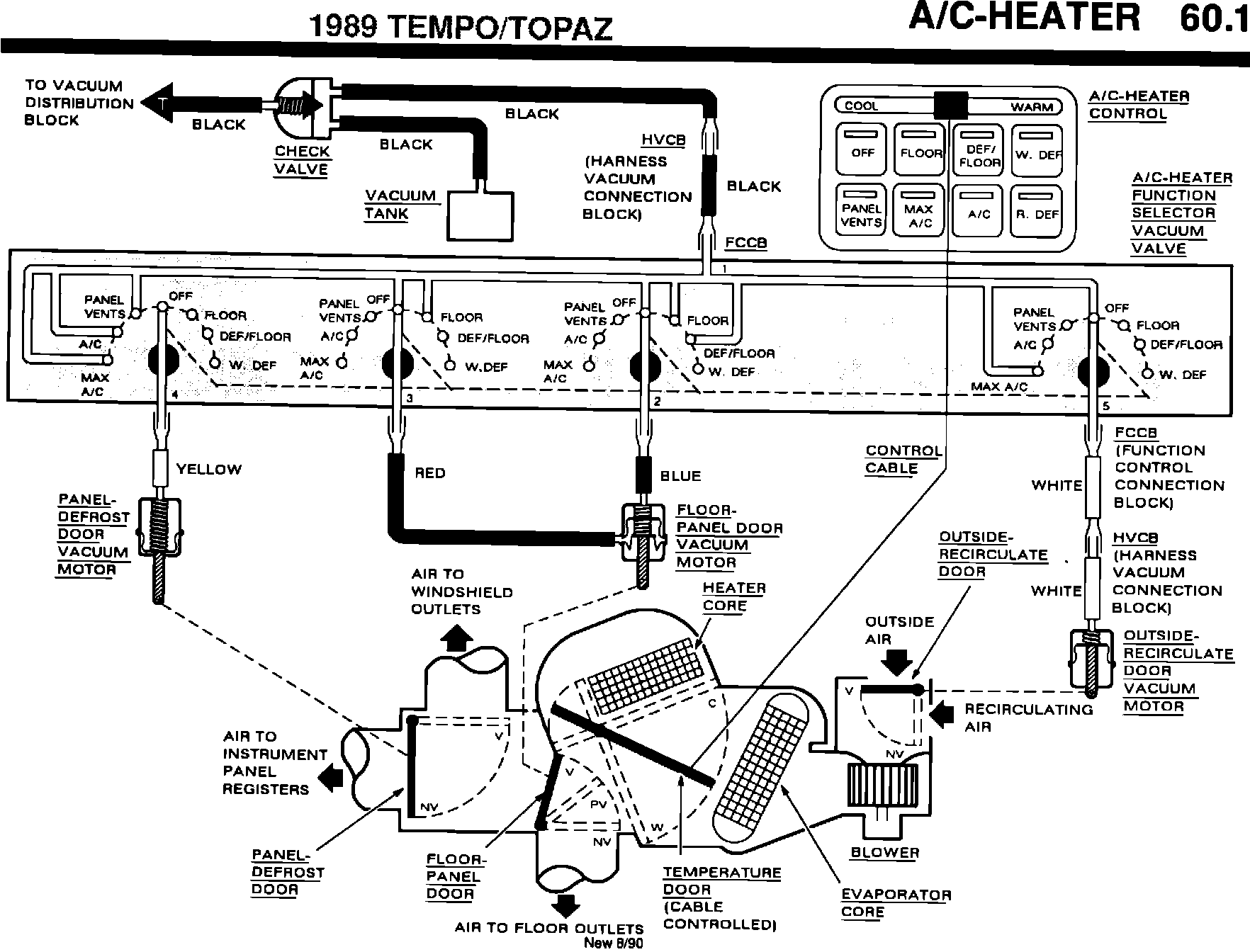

^ ELECTRICAL/VACUUM TROUBLESHOOTING MANUAL - 1989 - PAGES 60.1 AND 60.2 - VACUUM SCHEMATICS ADDED
Article No. 90-18B-24
FORD: 1989 TEMPO

LINCOLN-MERCURY: 1989 TOPAZ















ISSUE: The Vacuum Distribution schematics and the vacuum diagrams which illustrate the operation/positions of each of the vacuum actuators for the Heater Only and the A/C-Heater have been added to the 1989 Tempo/Topaz EVTM.

ACTION: Refer to the pages following this TSB article for the new information.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY
OASIS CODES: 290000
