Home >> Mercury >> 1989 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Power Distribution >> Main Light Switch & Fuse 6

Main Light Switch & Fuse 6

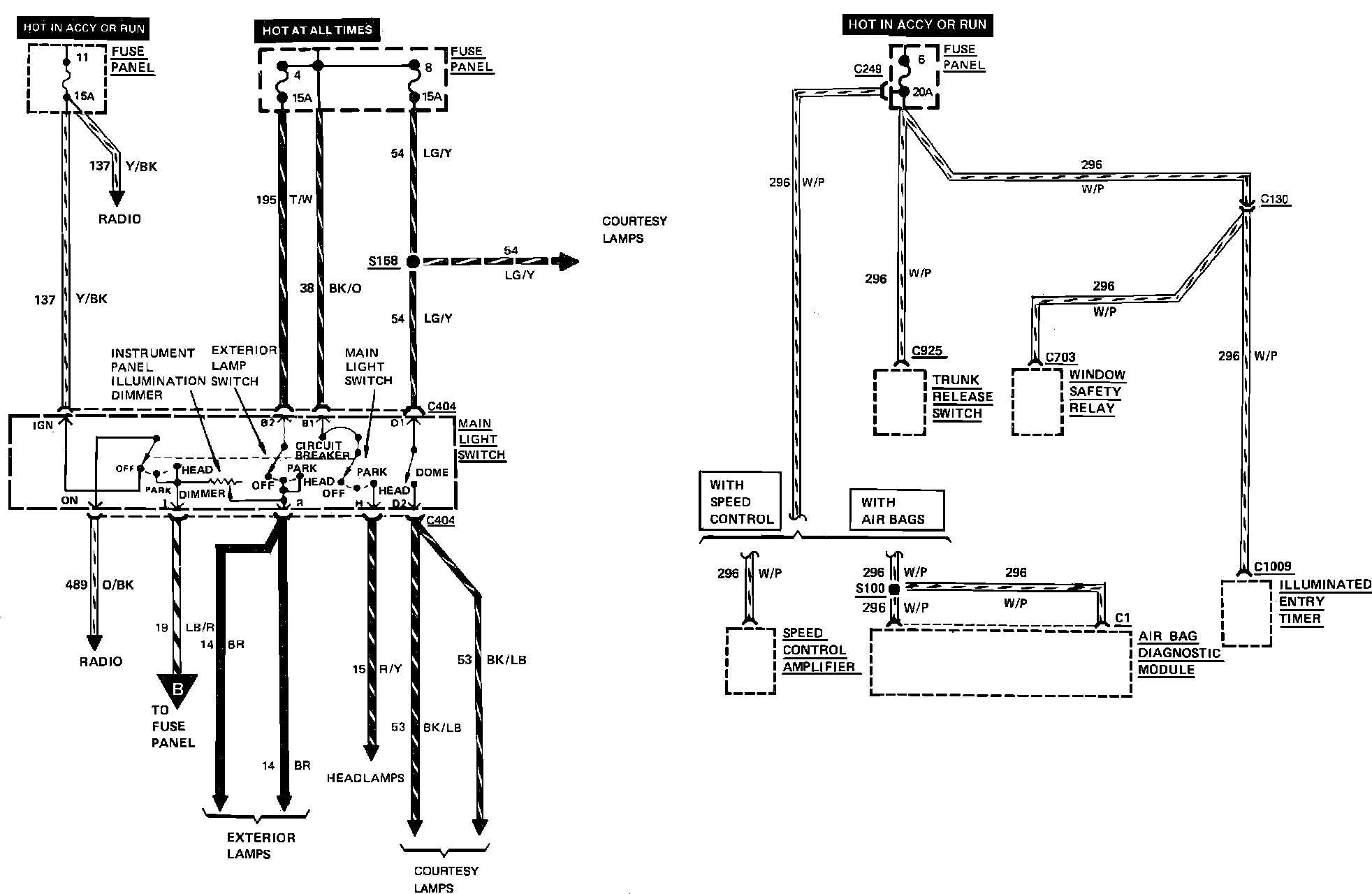

Charge And Power Distribution Wiring Circuit. Main Light Switch & Fuse 6:
