Home >> Mercury >> 1989 >> Topaz AWD L4-140 2.3L HSC (VIN X) >> Repair and Diagnosis >> Starting and Charging >> Power and Ground Distribution >> Diagrams >> Electrical Diagrams >> Ground Distribution >> G405

G405

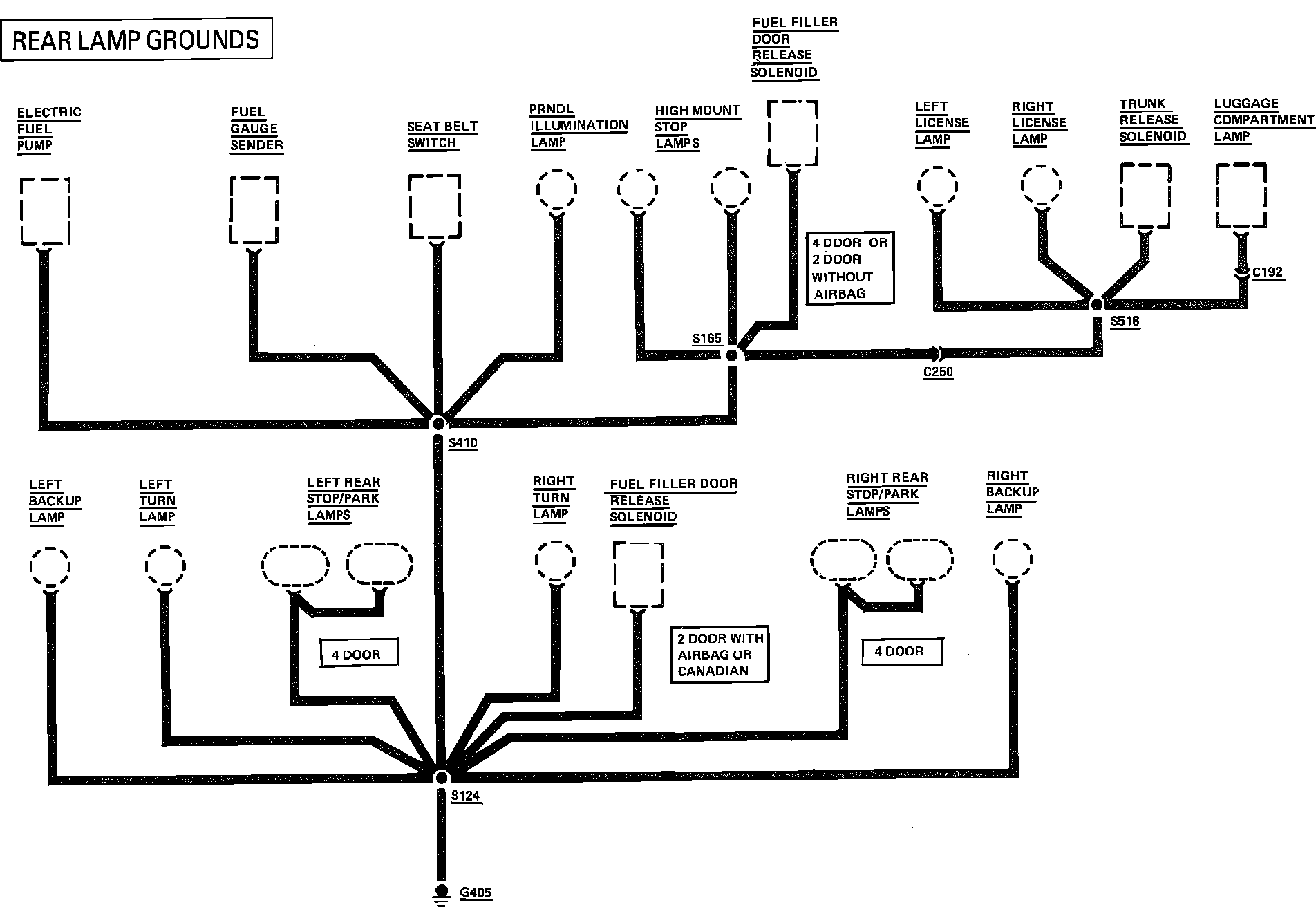

Ground Distribution. G405:
