Rear

NOTE: Seat Belt Bolt Bit T77L-2100-A or equivalent should be used for seat belt removal and installation.

Removal
1. Remove rear seat cushion.
2. Remove buckle end anchor bolts and buckle end belts.
3. Remove rear seat back.
4. Remove bolt attaching both rear seat retractors and remove retractors.





NOTE: When only the outboard or center safety belt assembly is replaced, in order to slide the belt anchor out of the assembly, the brass ring holding one anchor of the center safety belt assembly and the buckle end anchor of the outboard safety belt must be pried open and discarded.

Installation

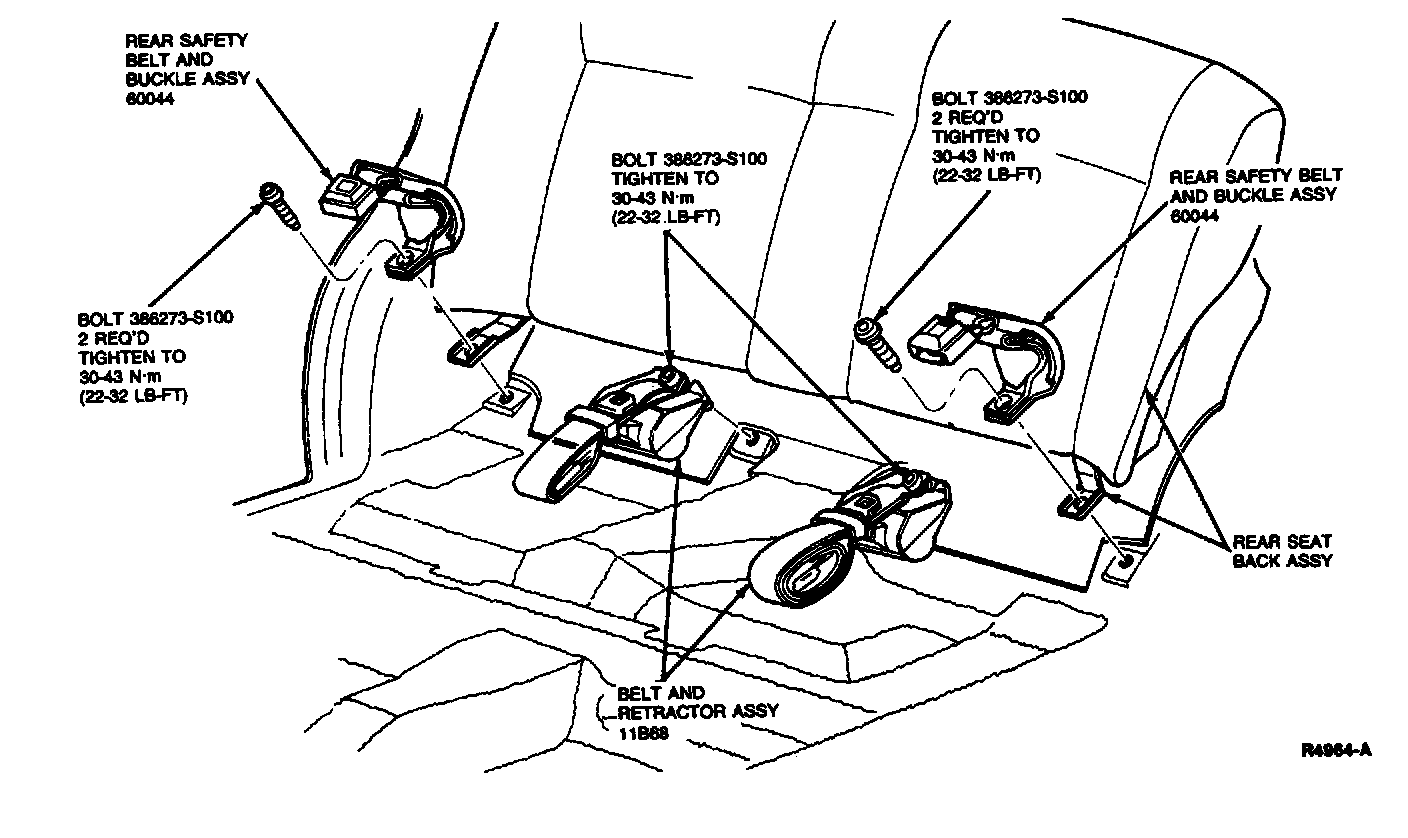

1. Reverse removal procedure. Position belts and retractor as shown in the illustration. When only outboard or center safety belt assembly is replaced, slide replacement belt into cover until anchors align.
2. Tighten all attaching bolts to 30-43 Nm (22-32 lb-ft). Cycle system several times to ensure proper operation of the retractor. Ensure webbing is not twisted.
