Limit Switches

RH Front Limit Switch

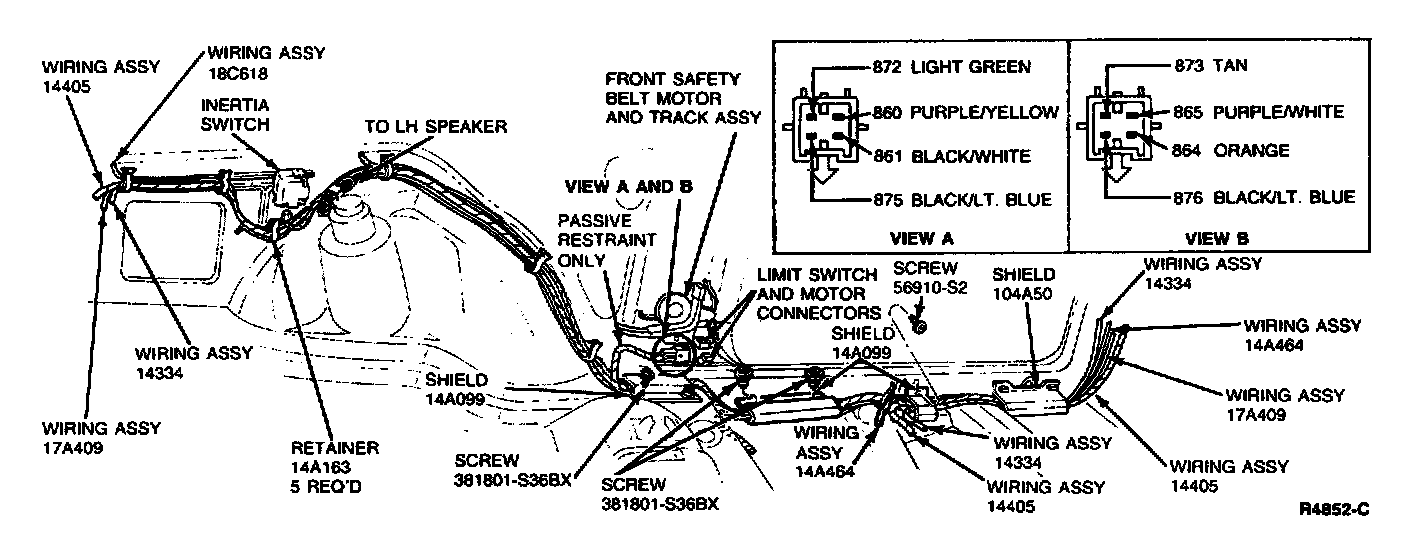

The connector for the RH front limit switch D is part of the wiring assembly. The switch is located in the RH A-pillar. The circuits are connected to the wiring assembly in the RH cowl area by a 2-pin, connector.

LH Front Limit Switch (Typical):

LH Front Limit Switch
The connector for the LH front limit switch E is part of the wiring assembly. It is located in the LH A-pillar. The circuits are connected to the wiring assembly at the fuse panel bracket by a 8-pin connector.

4 Door Models:

2 Door Models:

RH and LH Rear Limit Switch and Motor
The connectors for the RH and LH rear limit switches (A, B) and motor are located at the base of the RH and LH B-pillars and are part of the wiring assembly. The circuits are connected to the wiring assembly in the LH cowl area by a 12-pin connector.
