Schematics and Connector Views

Refer to the diagnosis charts and electrical schematics to identify and correct malfunctions in the passive restraint system. Rotunda Passive Restraint System Tester 007-00034 or equivalent may be used to perform pinpoint tests A through H.

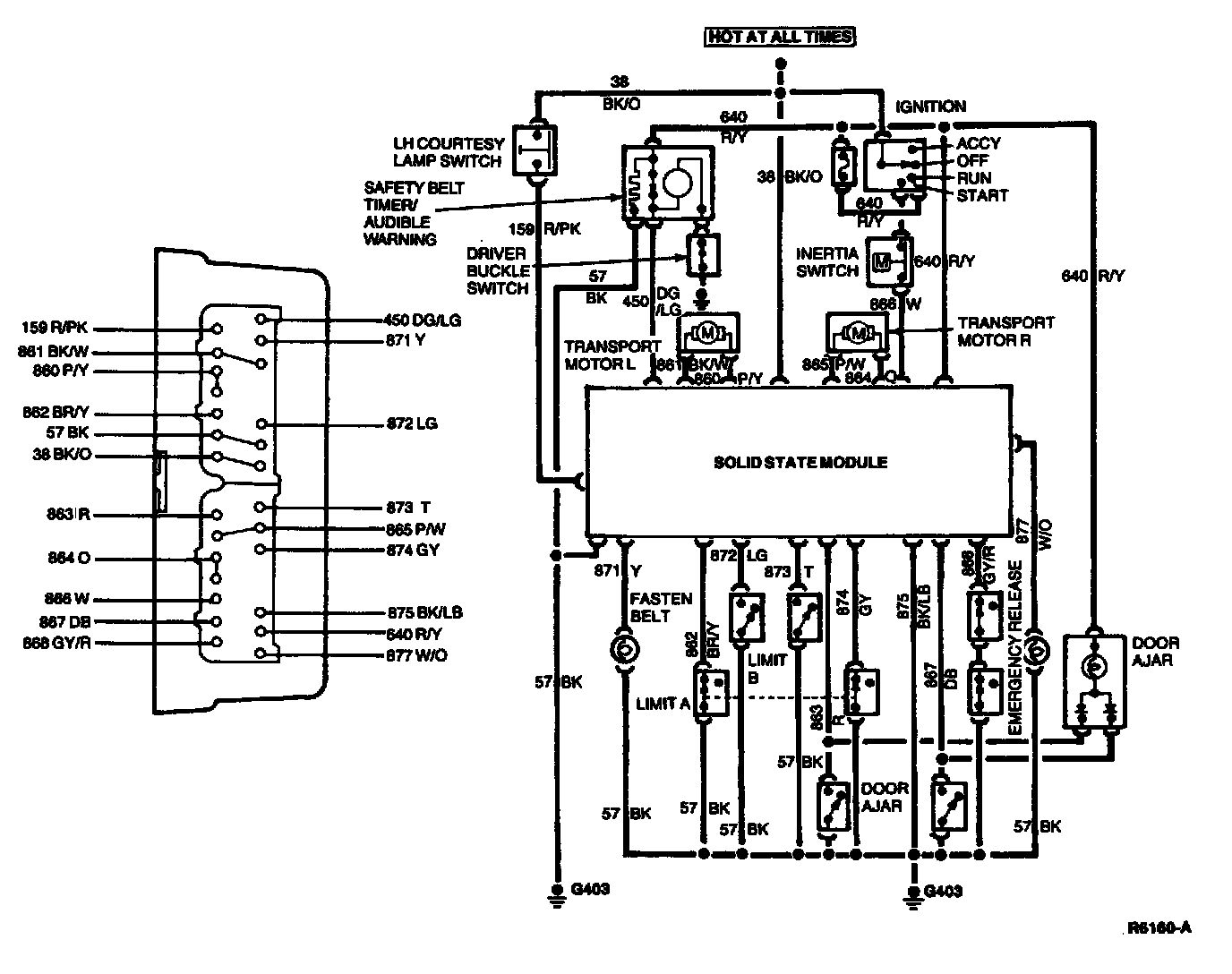

System Schematic:

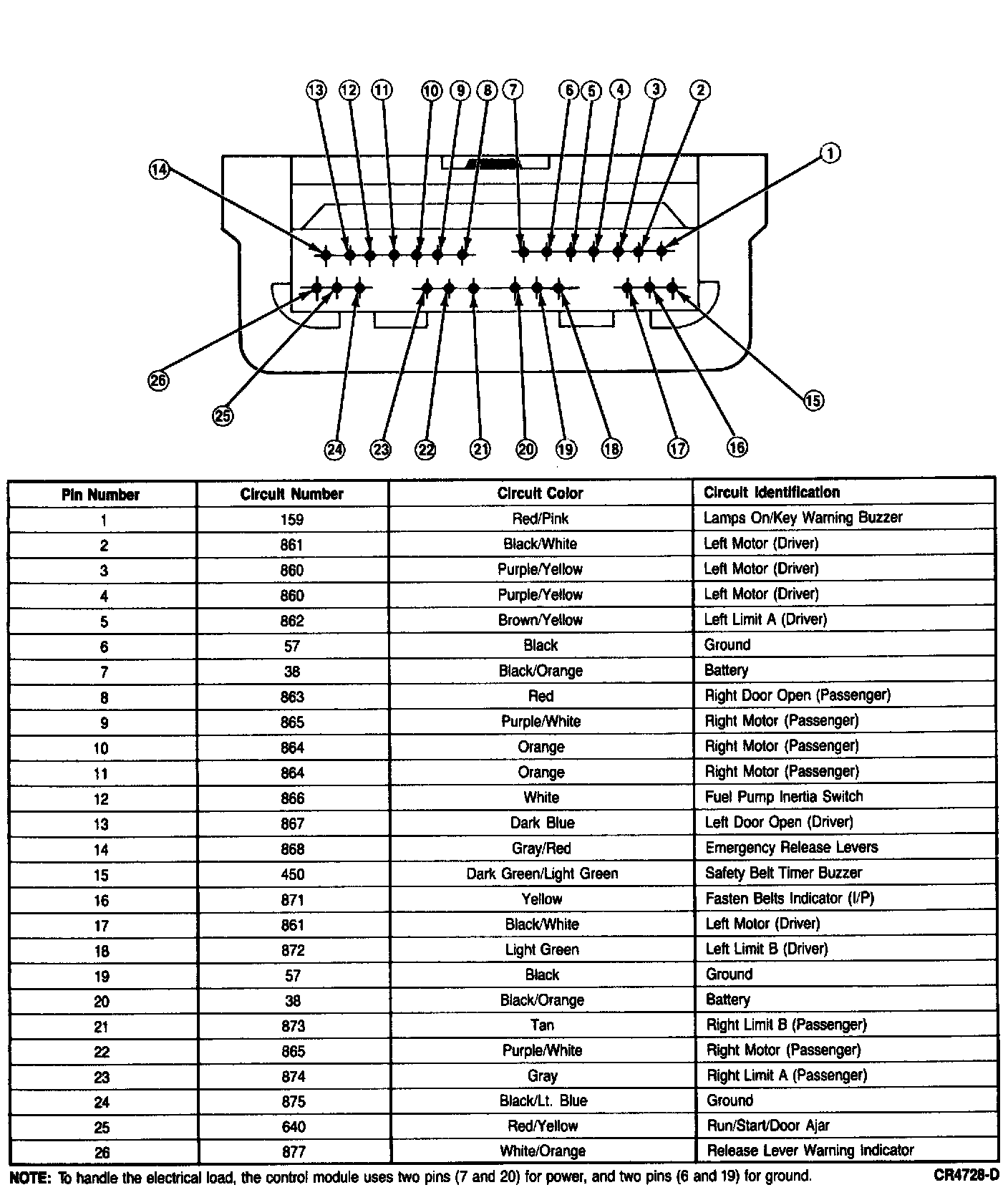

Module Connector View:

CIRCUIT PROTECTION
The vehicle passive restraint system is protected with a 20 gauge fuse link (Dk Blue). The fuse link is located on the RH side of the vehicle rear the starter motor relay. Transport motors at stall can draw 16 to 18 amps.

NOTE: To handle the electrical load, the control module uses two pins (7 and 20) for power, and two pins (6 and 19) for ground.
