Air Intake Resonator - Modification
89ford02Article No. 89-2-9
AIR INTAKE SYSTEM - RESONATOR - 2.3L HSC - DELETION OF ONE MOUNTING SCREW AND GROMMET
FORD: 1988-89 TEMPO
LINCOLN-MERCURY: 1988-89 TOPAZ
ISSUE: One of the four resonator mounting screws has been deleted to prevent damage to the 12A581 wire harness. This does not affect the function or durability of the resonator. Attempts to replace this screw may damage (pinch) the 12A581 wire harness located directly below the resonator assembly.

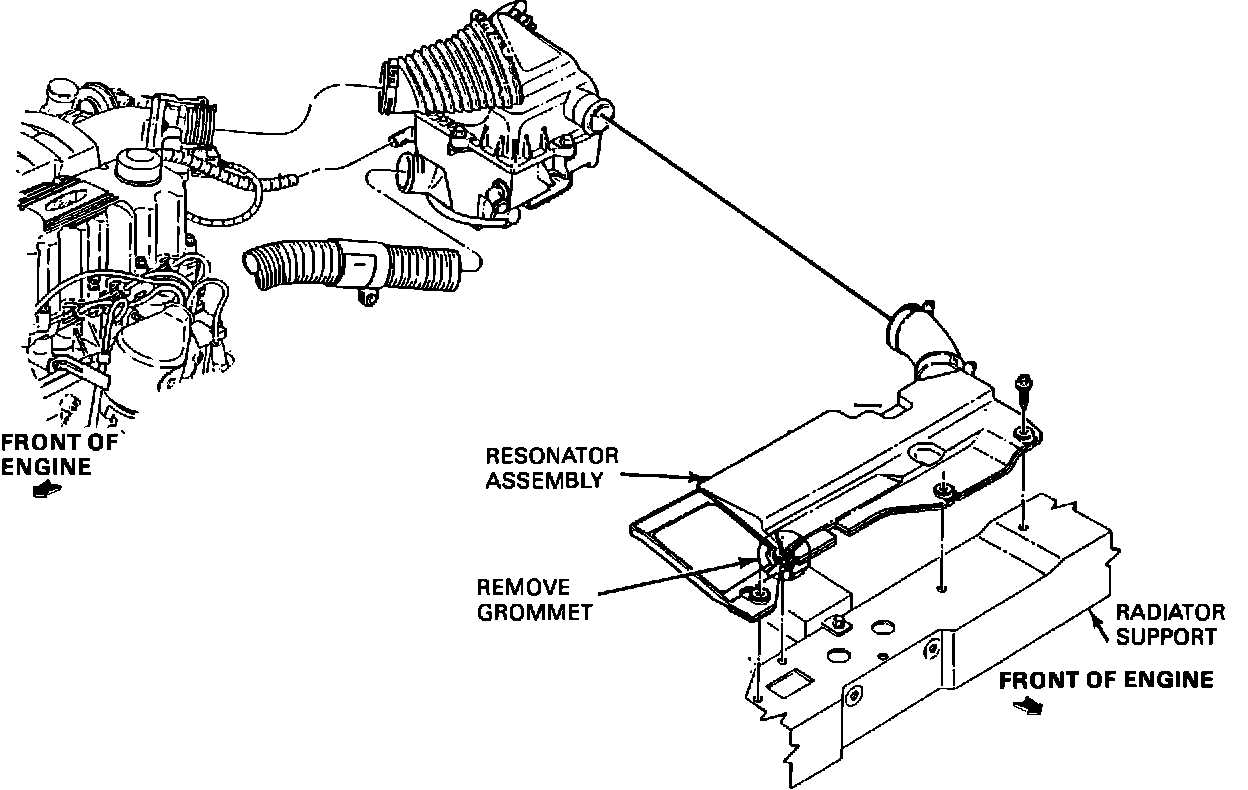

FIGURE 15:
ACTION: Do not replace the "missing" resonator screw. The screw and grommet that has been deleted is the one that is closest to the 12A581 wire harness and furthest from the front of the vehicle, Figure 15. Remove and throw away the grommet if it has been left on the resonator assembly.
OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: INFORMATION ONLY"
OASIS CODES: 4700
