Vacuum and Vapor Hose Diagrams

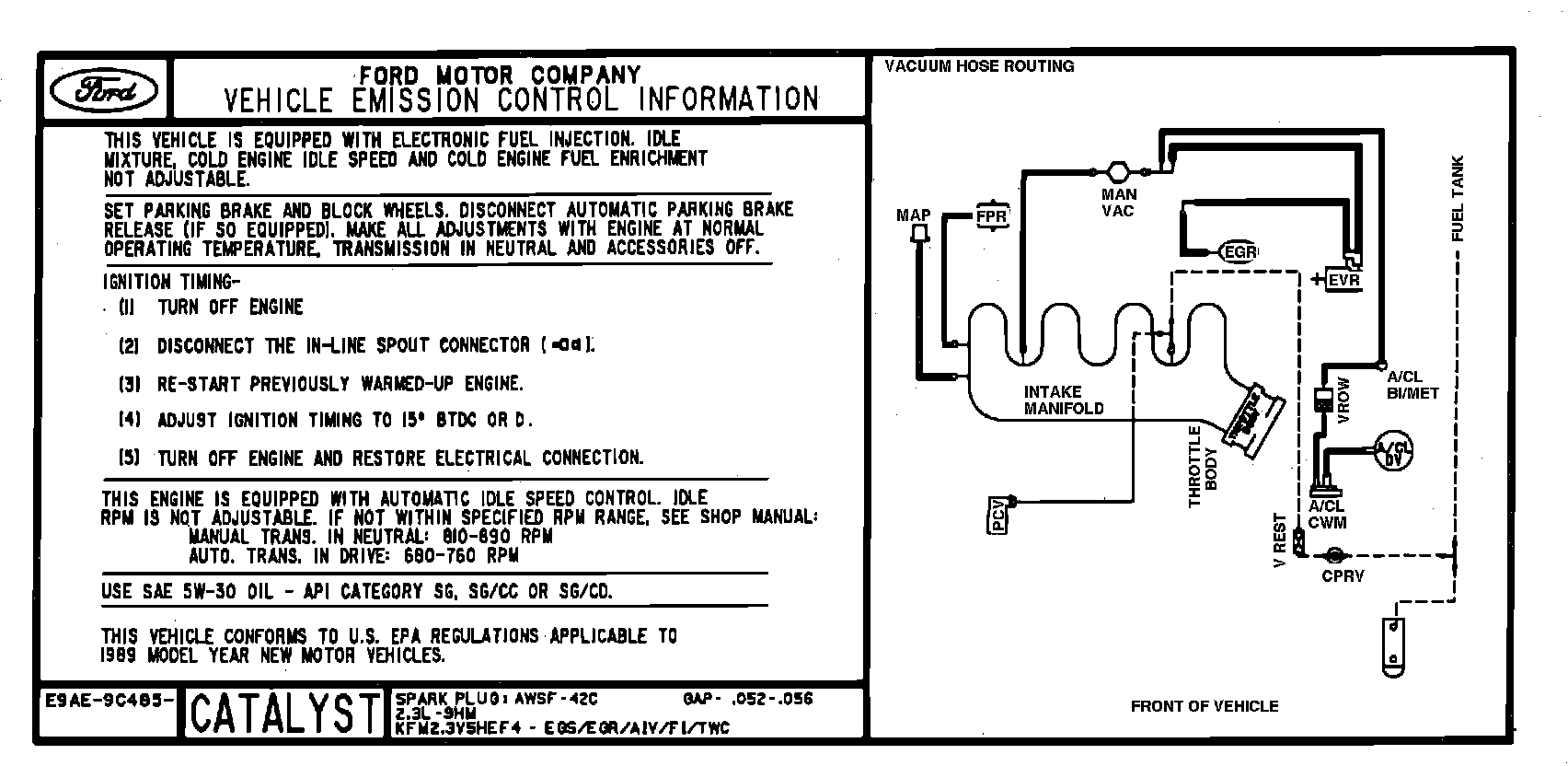

Fig. 6 Calib. Codes 8-25C-R00, 8-25F-R00, 8-26D-R10, 8-26E-R00 & 8-26T-R10:
