Cooling Fan Wiring Diagram - Manual Correction

89Ford10

^ AIR CONDITIONING - COOLING FAN WIRING DIAGRAM - SHOP MANUAL AND ELECTRICAL VACUUM TROUBLESHOOTING MANUAL (EVTM) CORRECTION

^ HEATER - COOLING FAN WIRING DIAGRAM - SHOP MANUAL AND ELECTRICAL VACUUM TROUBLESHOOTING MANUAL (EVTM) CORRECTION

Article No. 89-5A-12













FORD: 1989 TEMPO

LINCOLN-MERCURY: 1989 TOPAZ

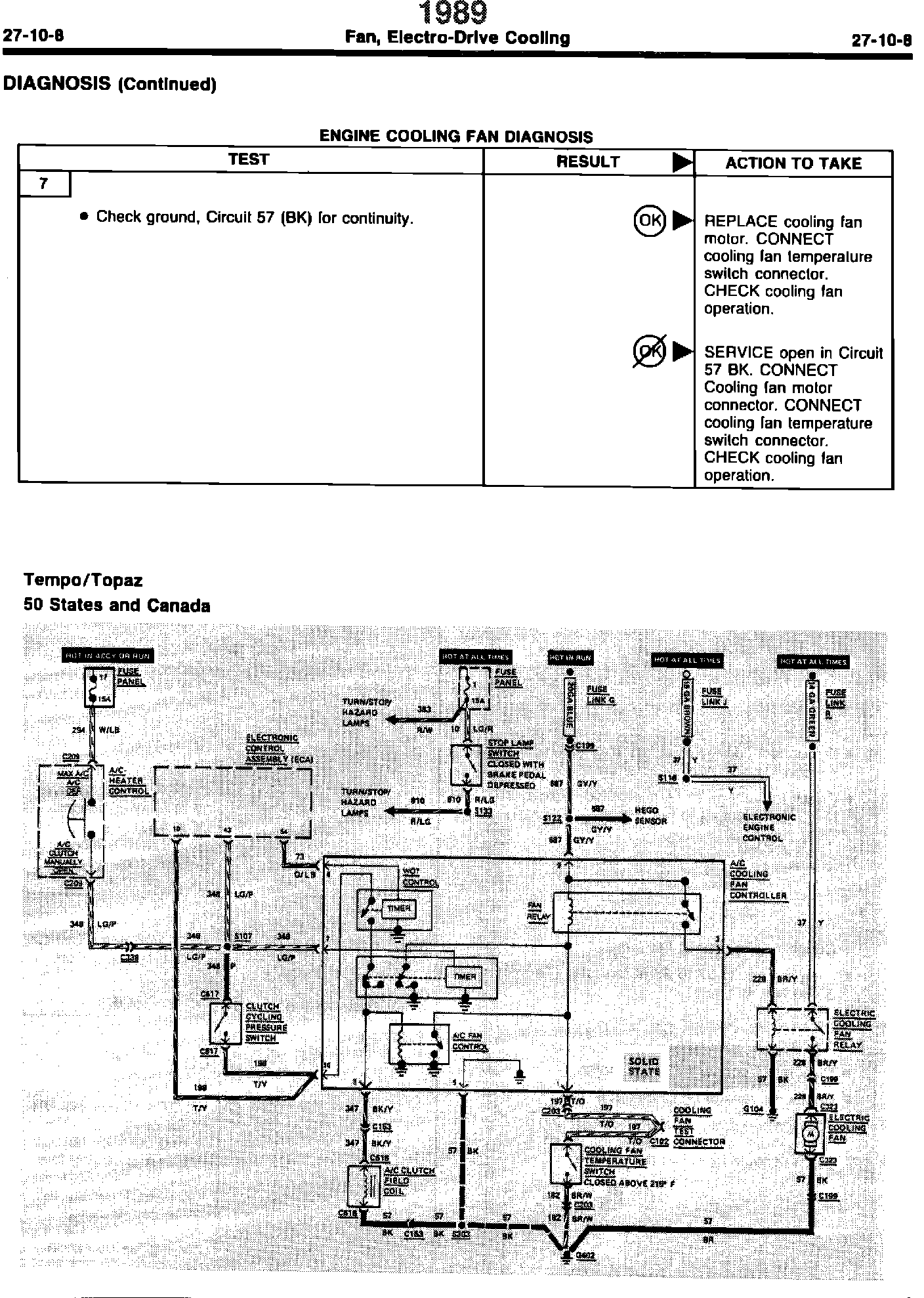

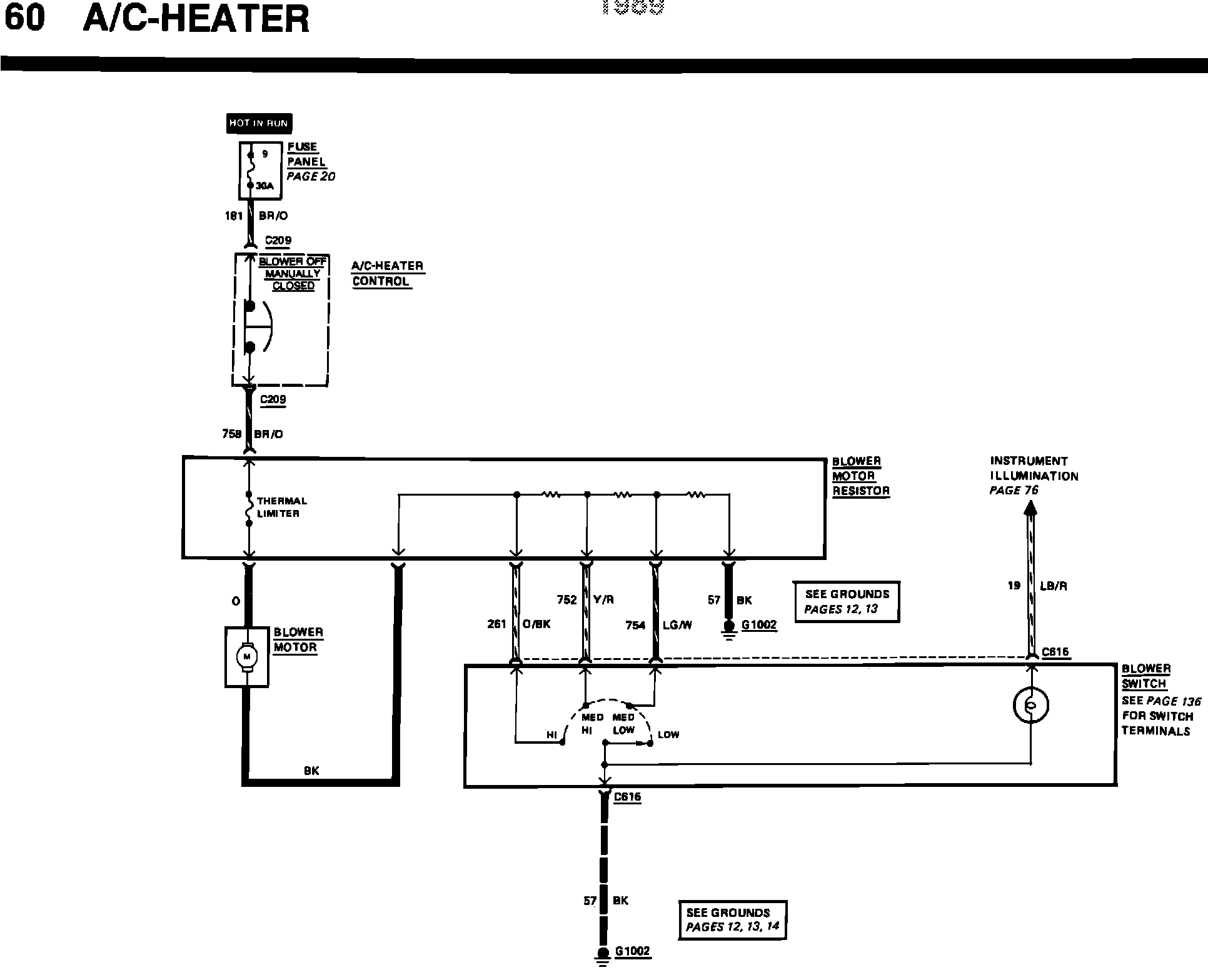

ISSUE: The wiring diagrams shown on page 27-10-8 of the 1989 Tempo/Topaz, Escort Shop Manual and on page 59 of the Tempo/Topaz EVTM are incorrect.

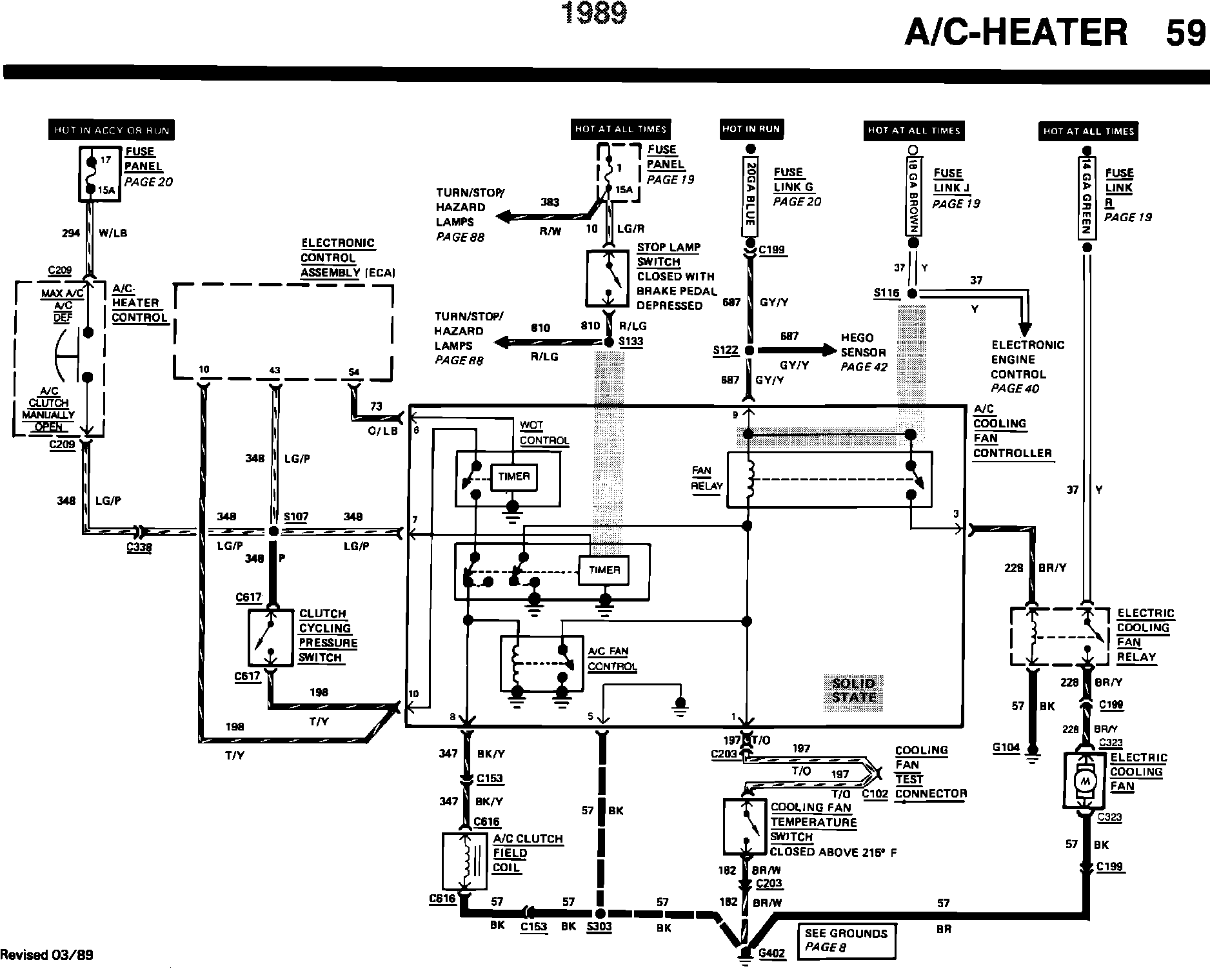

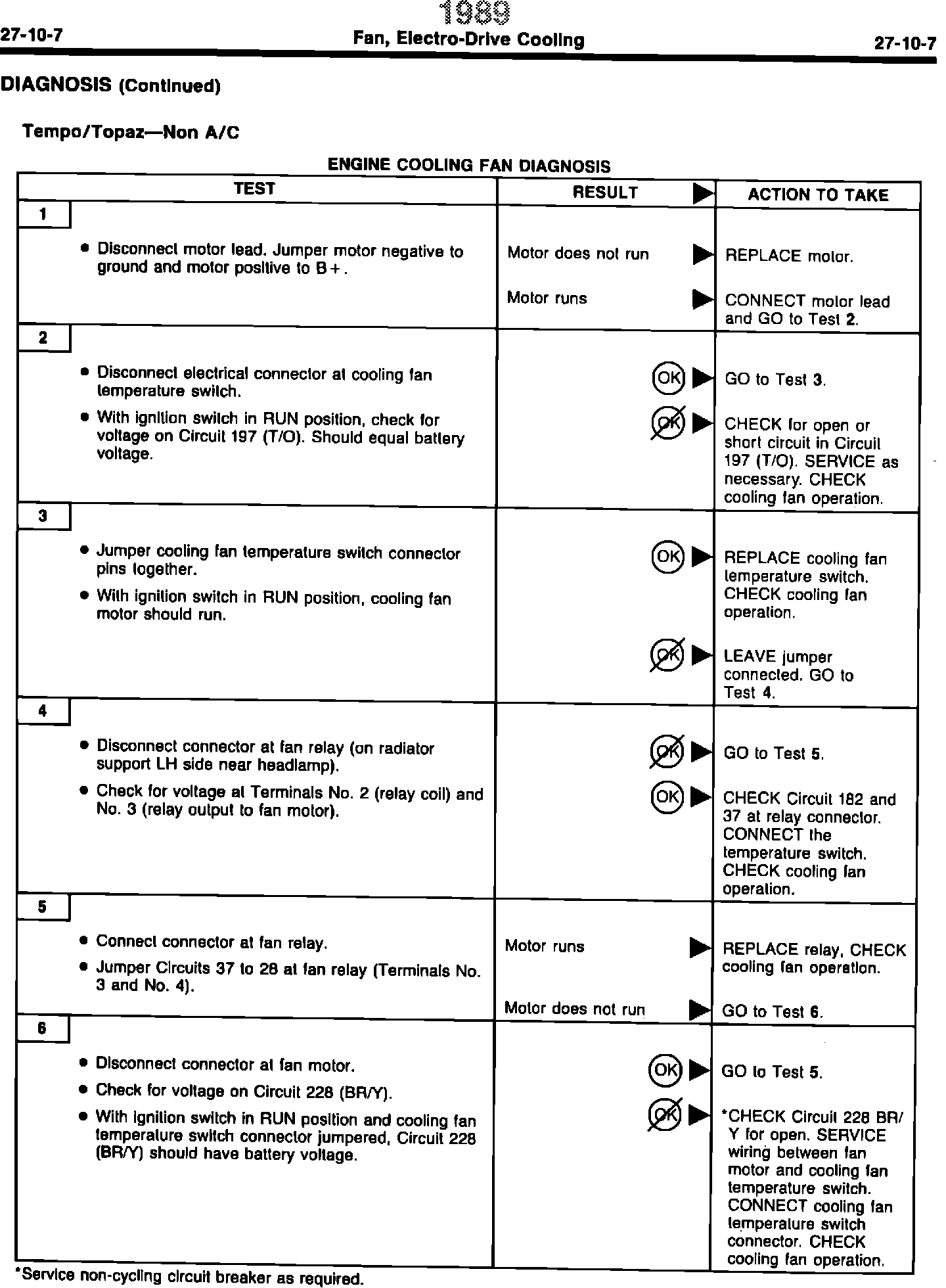

ACTION: If service is required, refer to this TSB for the correct wiring diagrams. This information should be inserted into your 1989 Tempo/Topaz, Escort Shop Manual, page 27-10-8 and the 1989 Tempo/Topaz EVTM, page 59.


OTHER APPLICABLE ARTICLES: None
WARRANTY STATUS: "INFORMATION ONLY"
OASIS CODES: 2800
