Sport Cluster

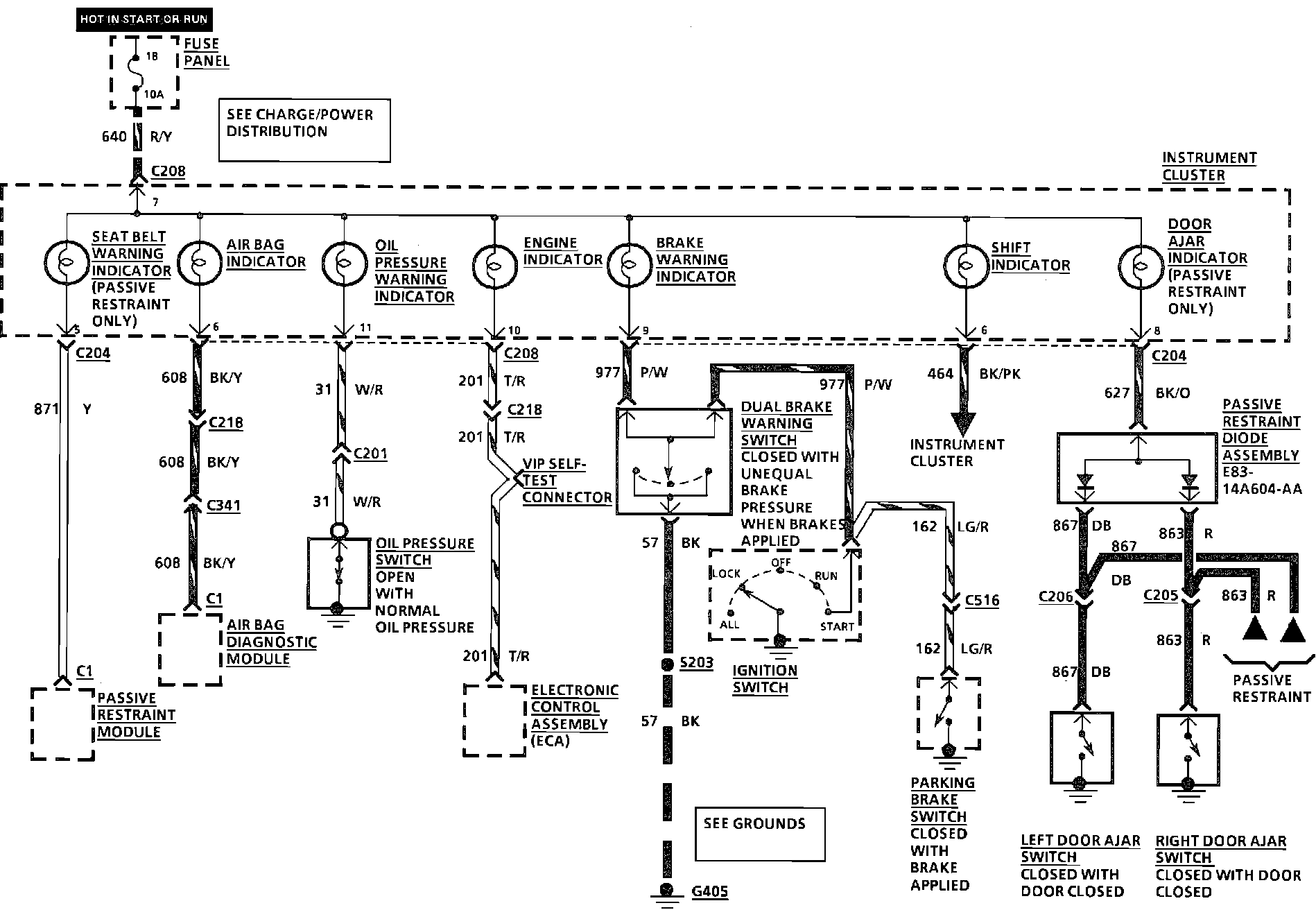

Instrument Cluster Wiring Circuit. Sport Cluster:

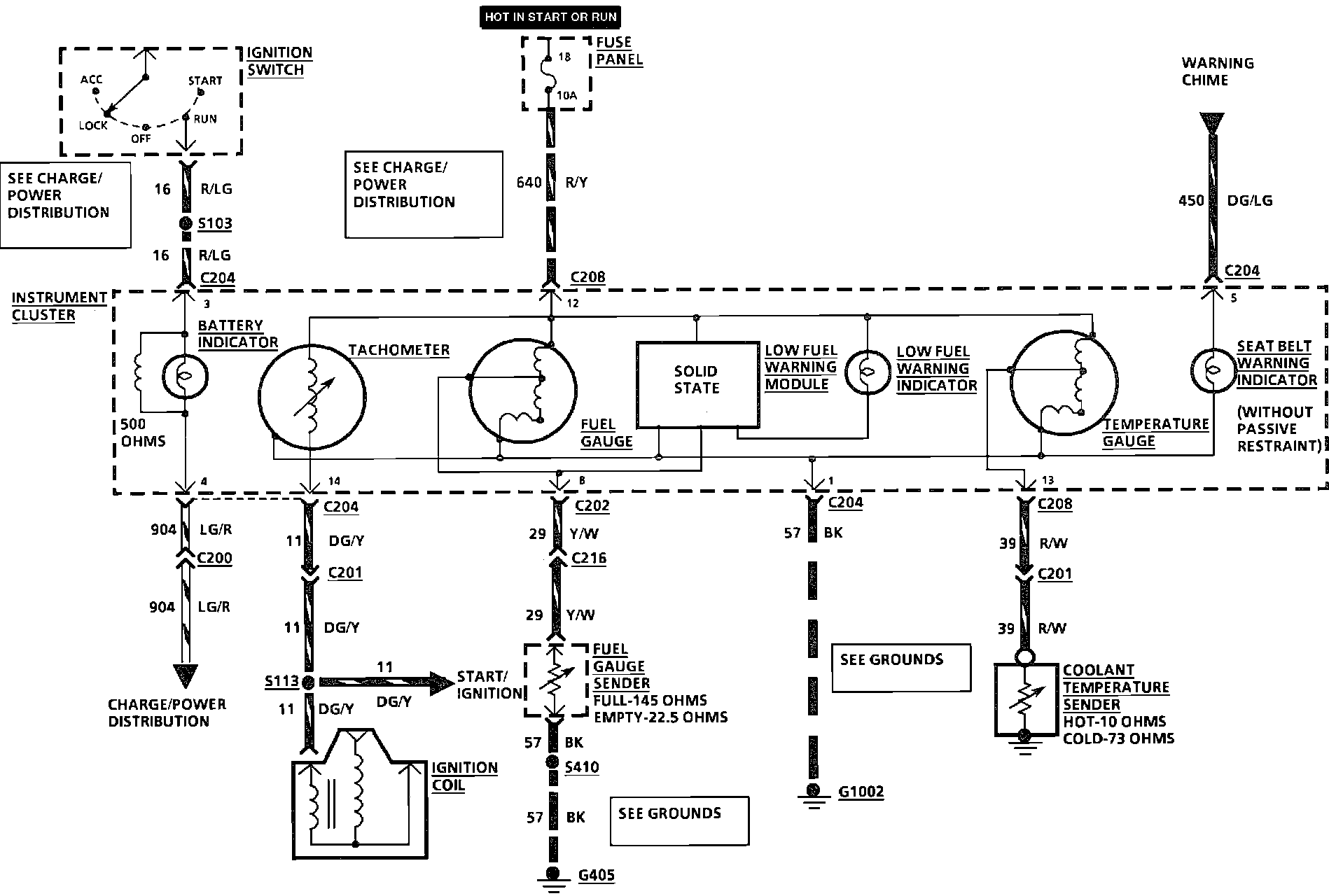

Instrument Cluster Wiring Circuit. Sport Cluster:

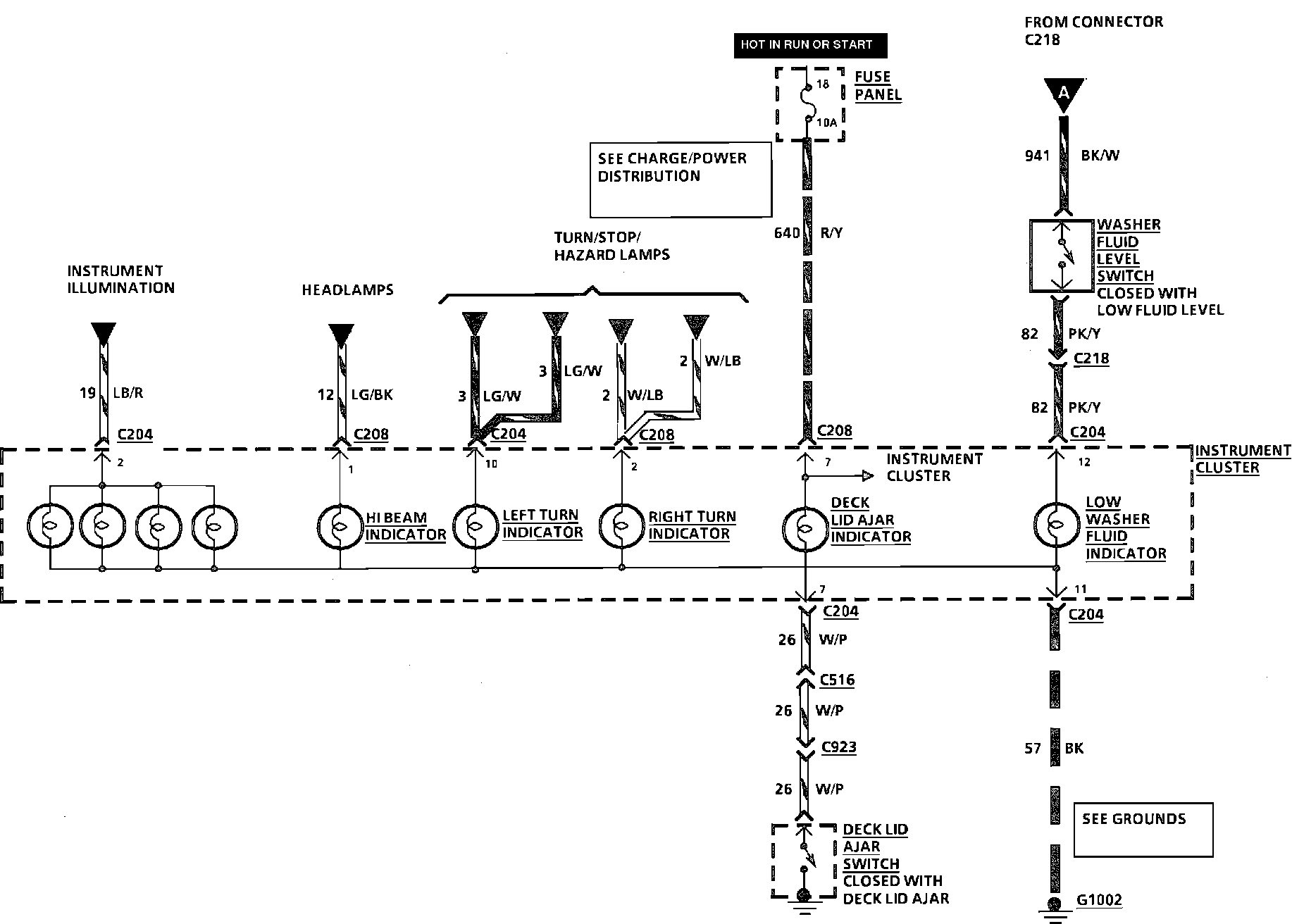

Instrument Cluster Wiring Circuit. Sport Cluster:
